SUMMARY

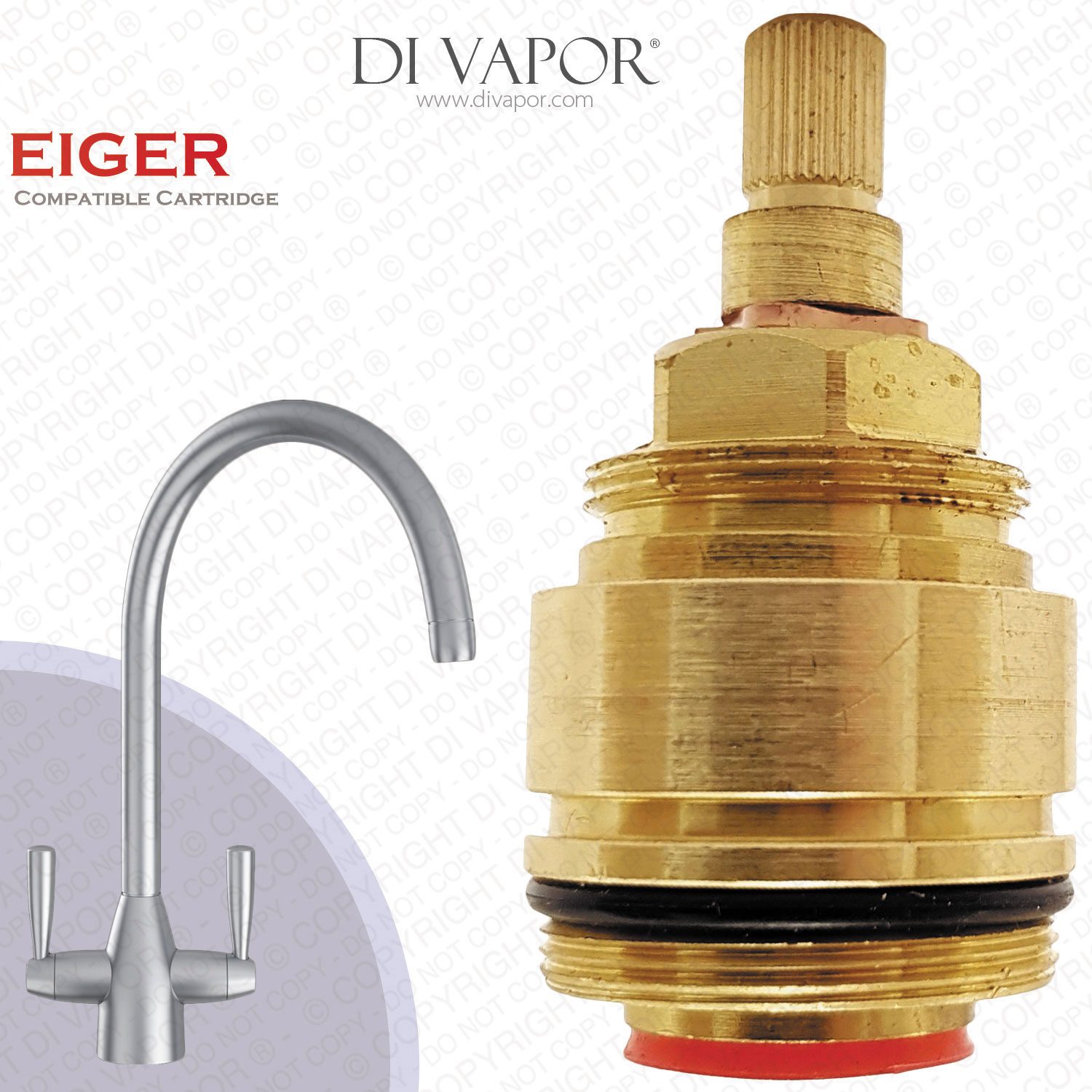

Franke Eiger Kitchen Tap Valve Compatible Cartridge Replacement - Hot

Cartridge Compatibility: Franke Eiger
Spare Part: Kitchen Tap Cartridge Spare (Hot Side)
Installation: Screw In
Material: Brass
Bottom Seal Colour: Red


The Franke Eiger compatible tap valve cartridge replacement part for the Hot Side (FR-EG28) can be dispatched on the same day when ordered before 3:00 PM, Monday to Friday.

Technical Information: Franke Eiger Tap Cartridge Spare

This kitchen tap spare part has a 7.8-millimeter top spline diameter with 28 teeth. Turning it in an anticlockwise direction closes the tap. It opens with a 1/4 clockwise turn.

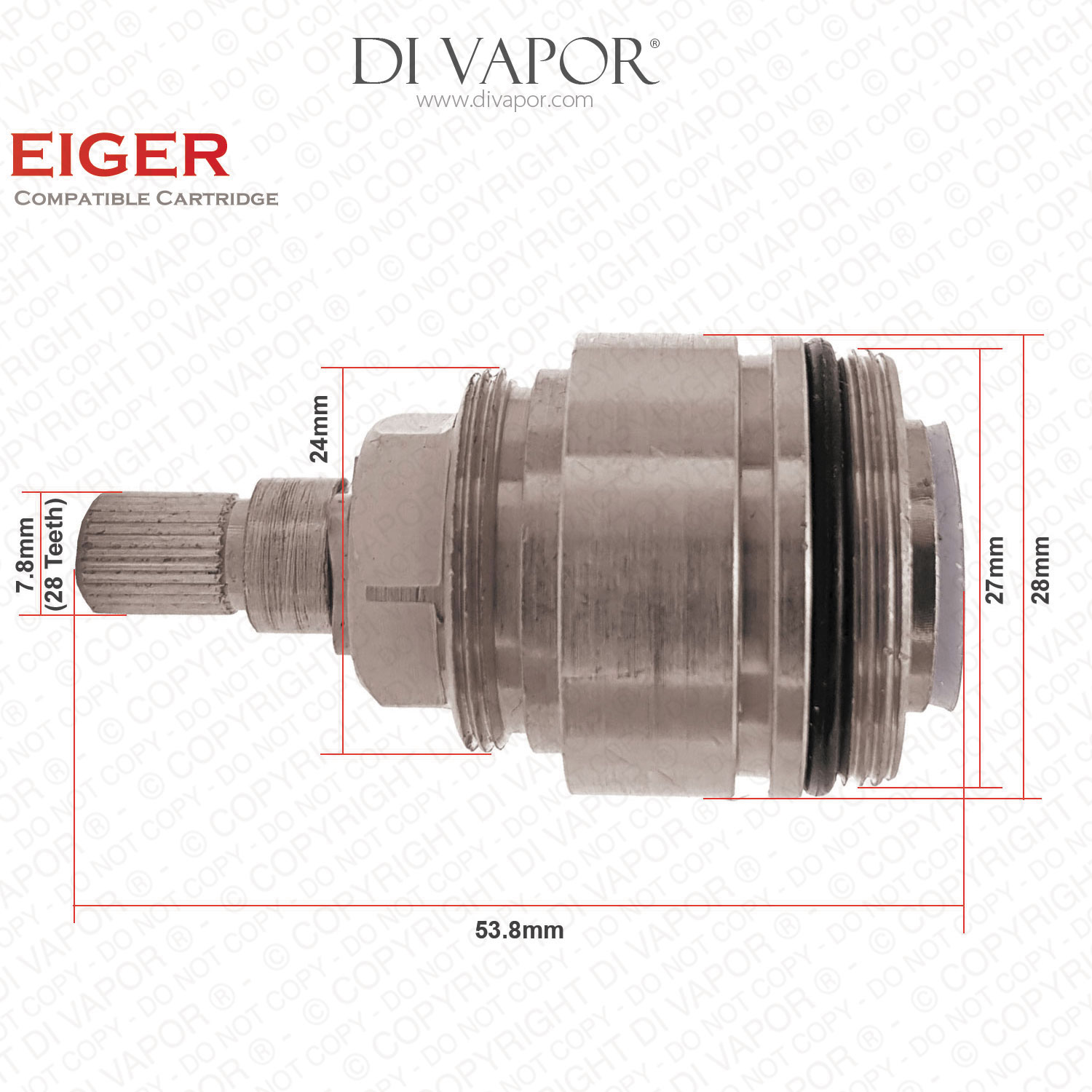

Cartridge Measurements:
Total Length (including bottom seal): 53.8mm
Diameter at Widest Point: 28mm
Diameter of Upper Thread: 24mm
Diameter of Lower Thread: 27mm
Bottom Seal Colour: Red (for Hot Side)
Close Direction: Anticlockwise Close


Do you also need the Franke Eiger tap spare cold side?
- Please refer to the Franke Eiger Kitchen Tap Valve Compatible Cartridge Replacement - Cold.

Accessing the Franke Eiger Tap Cartridge SP3561 / 1427R

It is important to shut off the water supply prior to starting the repair.

– This Franke Eiger cartridge replacement is the same as the SP3561 and the 1427R. It is specifically for the hot side (located at the left of the tap) of the Franke made Eiger. There is a tiny grub screw affixing the handle; undo it using an Allen key. Then remove the shroud protecting the cartridge. Grip a small spanner on the nut part of the cartridge to unscrew it from the valve.

– With the valve seat exposed, it is best to clear it of sediment debris with a damp cloth or a soft-bristled tool.

– Spread a thin layer of silicone grease on the o-ring of the brand new cartridge and secure it inside the tap valve housing. Reattach the protective shroud and the handle.


We supply a wide range of Franke Tap Spares.

Problems the Franke Eiger Cartridge can Address

When a kitchen tap leaks, one of the root causes may lay in the cartridge. The Franke Eiger tap cartridge is a ceramic disc tap valve cartridge replacement. Through years of use, hard water minerals tend to build up in the cartridge leading to blockage and resulting in poor water flow.

The O-rings of the Franke Eiger cartridge will exhibit the usual signs of wear and tear that can result in the tap leaking.

In both of these cases, the tap needs a replacement Franke Eiger tap cartridge. This is an effective solution to addressing the above issues.
