SUMMARY

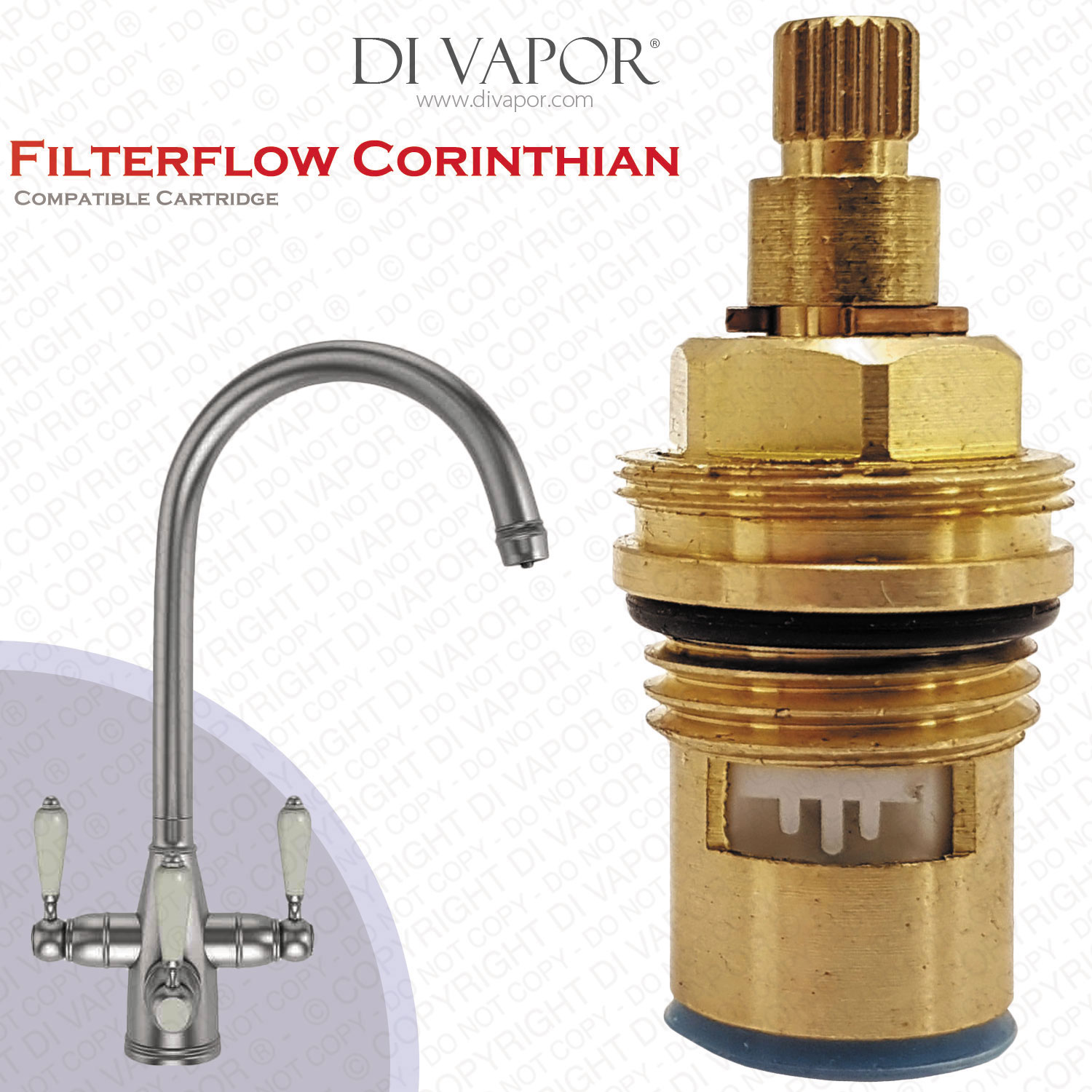

Franke Filterflow Corinthian SP3984-C Kitchen Tap Valve Cartridge (133.0358.192) - 52mm Height, 20 Teeth Spline - Cold Side - 1212R Compatible Cartridge. This cartridge is used in the front of the tap and also the cold side on the right side of the tap.

Information: Franke Filterflow Corinthian Cartridge Cold Side Compatible

Cartridge Compatibility: Franke Filterflow Corinthian
Spare Part: Kitchen Tap Cartridge
Installation: Screw-In
Material: Brass
Original Spare Part: SP3984-C, 1212R, and 133.0358.192


SP3984-H is the spare for the hot side of the kitchen tap model.


Looking for other Franke tap spares?
- We carry a load of tap spares compatible with Franke.

Technical Information: Franke Filterflow Corinthian Tap Cartridge Compatible Spare

This cartridge opens with an anti-clockwise 90-degree turn and closes clockwise. There are 20 spline teeth. The spline diameter measures 6.65 millimeters to 7.76 millimeters.

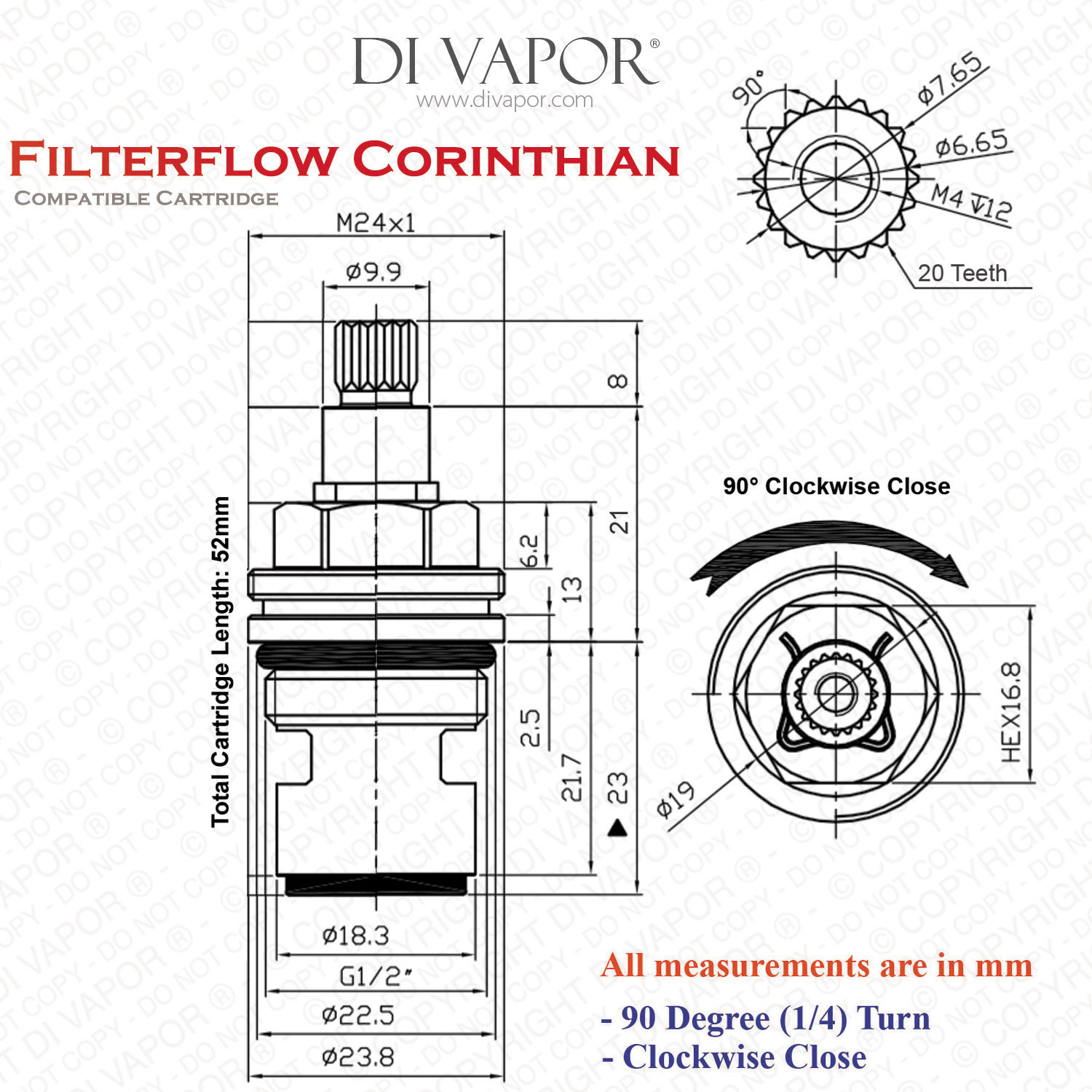

Cartridge Measurements:
Total Length (including bottom seal): 52mm
Diameter at Widest Point: 23.8mm
Nut Height: 6.2mm
Bottom Seal Colour: Blue – Cold

Please refer to the illustration above for further measurement information.

Franke Filterflow Corinthian Cartridge Installation

Deconstructing the Kitchen Valve Handle
- After completely cutting off water supplies to the kitchen tap, remove the cold indices from the handle on the right side of the tap.

- Unscrew the tap handle, lift the handle cover, and undo the cartridge with a clockwise turn of a spanner.

- To prolong the life of the seals, coat the circumference of the new Franke Filterflow Corinthian cartridge O-ring with plumbing grease. This will lessen friction and pinching.

- Seat the cartridge in the valve and tighten securely.

Reconstructing the Kitchen Valve Handle
- Slip in the valve cover. Attach the tap handle fastening it with the screw. Click the cold indices back in position.

- Reopen cold and hot water supply lines and check for drips around the tap or for any installation issue.

Note: The process is the same for the Franke Corinthian tap filter cartridge replacement.


Question: Why Does a Franke Filterflow Corinthian Kitchen Tap Leak?
Taps will drip for certain reasons: water pressure beyond the recommended level, or a broken cartridge and faulty O-rings. It is suggested that the water pressure for the Franke Corinthian tap be set at least 14.5 PSI up to a max pressure of 75 PSI. Exceeding this level will result in tap and cartridge damage, and at the same time leaks.

Excessive water pressure will also cause the cartridge to develop cracks and add more compressive force to the seals wearing it out faster than normal.
