SUMMARY

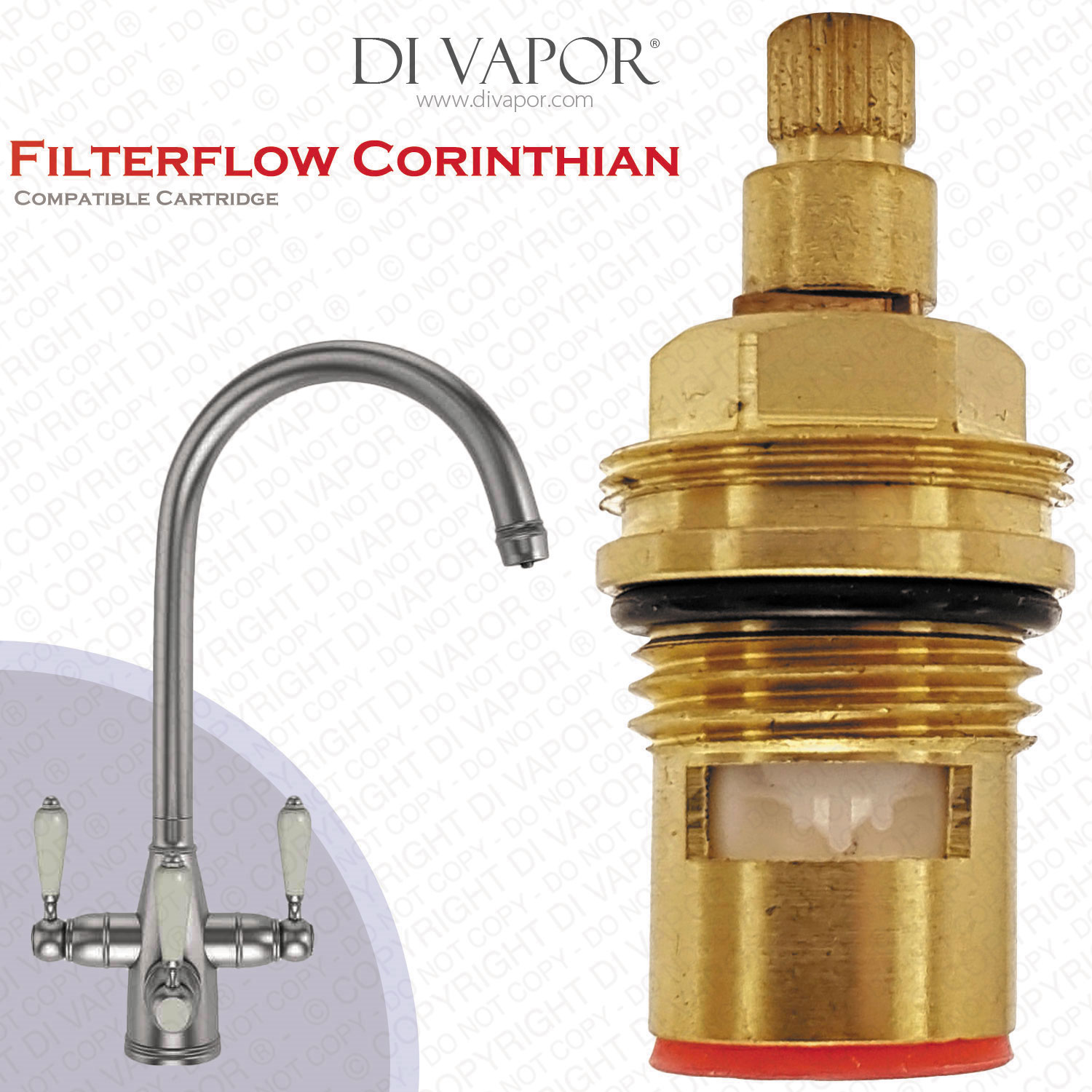

Franke Filterflow Corinthian SP3984-H Kitchen Tap Valve Cartridge (133.0358.191) - 52mm Height, 20 Teeth Spline - Hot Side - 1212R Compatible Cartridge

Franke Corinthian Filterflow Tap Spares: Compatible Cartridge Replacement Part

Cartridge Compatibility: Franke Filterflow Corinthian
Spare Part: Tap Cartridge Spare Part – Hot Side
Installation: Screw-In
Material: Brass with Ceramic Core

This tap spare is compatible with taps that use the SP3984, 1212R, and 133.0358.191 cartridge just like the Franke Filterflow Corinthian.


The cold side insert of the tap is also available.

Technical Information: Franke Filterflow Corinthian Tap Spare Cartridge

Cartridge Measurements:
Total Length (including bottom seal): 52mm
Diameter at Widest Point: 23.8mm
Nut Height: 6.2mm
Top Spline Diameter: 6.65mm to 7.65mm
Top Spline Teeth / Notches: 20
Bottom Seal Colour: Red – Hot Side
Open Direction: Clockwise
Close Direction: Anticlockwise

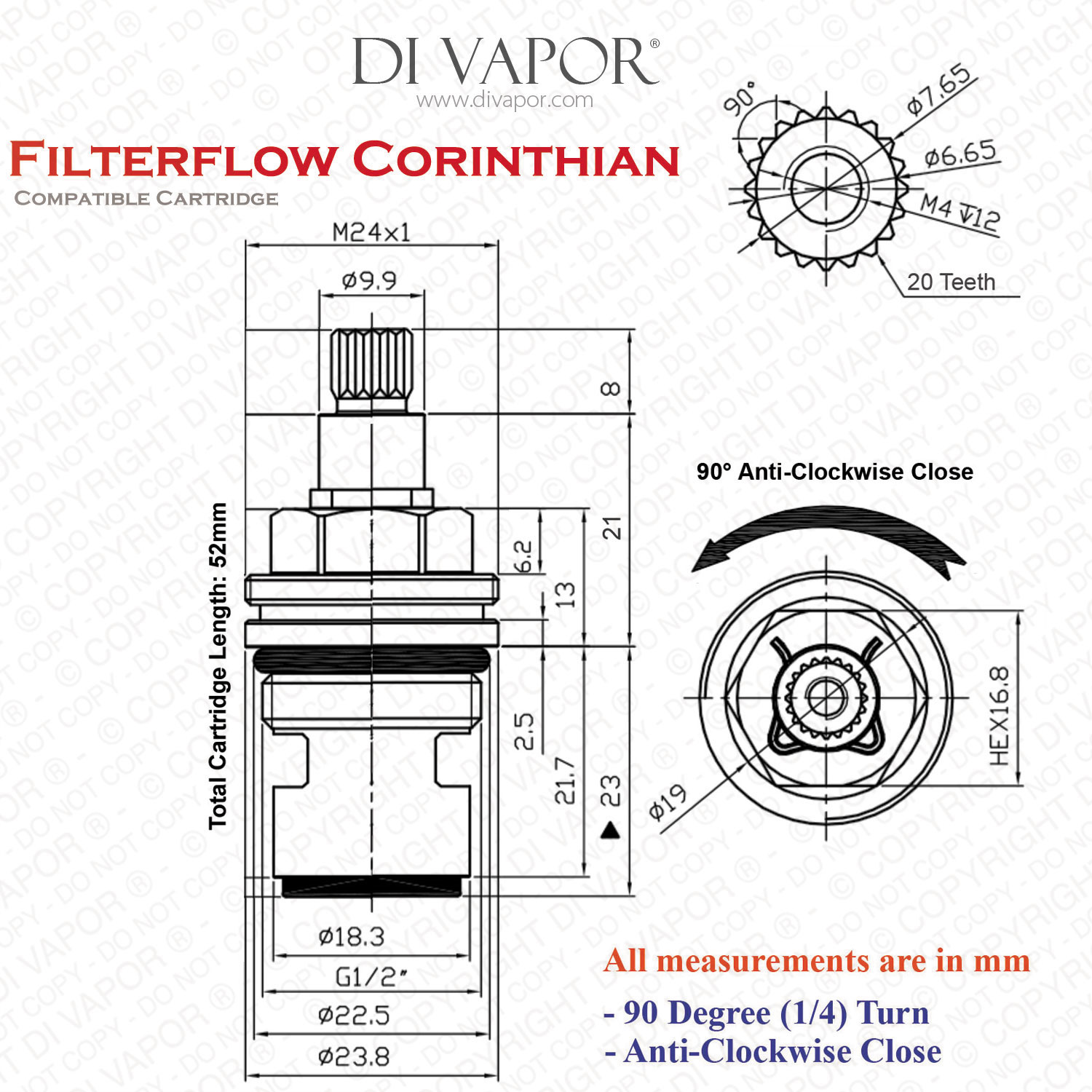

For a complete measurement illustration of the Franke Corinthian Filterflow tap spare, please see the second image above.

How to Change the Franke Filterflow Corinthian Cartridge – Hot Side

1. Isolate hot and cold water supply lines connected to the kitchen tap. Is isolation valves cannot be found shut off the supply near the water meter.

2. Block your drain to prevent small parts from dropping in it.

3. The left side of the tap always belongs to the hot side. Pop out the hot indicator to reveal the screw under it. Undo the screw to release the handle.

4. Remove the valve cover or protective shroud to reveal the red bottom seal cartridge.

5. The SP3984-H is a screw-in cartridge, therefore a small spanner must be used to unscrew it.

6. Grease a tiny amount of silicone lubricant on the external O-ring of the new Franke Filterflow Corinthian tap spare cartridge.

7. Insert the cartridge and secure its threads with the tap valve using a spanner.

8. Replicate steps one to four in reverse order to construct the handle.

What is the Importance of Silicone Grease in Franke Corinthian Filterflow Tap Spares Installation?

Silicone lubricant adds a layer of protection for the O-rings of a cartridge or valve. It reduces the amount of friction to be undergone by the part, thus prolonging its life as a leak prevention tool.
