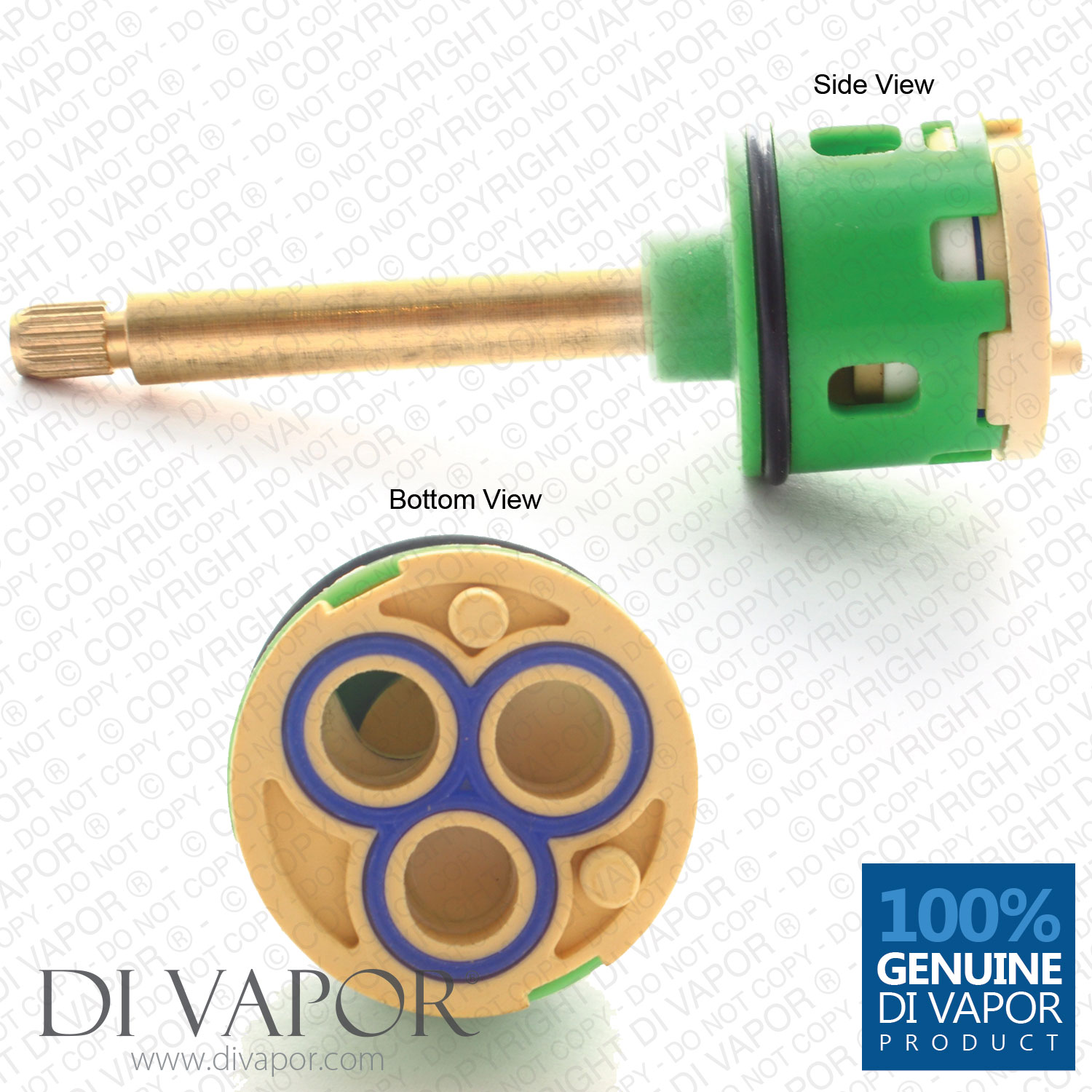

101mm 3-Way Diverter Cartridge 33mm Barrel Diameter with 64mm Spindle

SUMMARY

101mm 3-Way Diverter Cartridge 33mm Barrel Diameter with 64mm Spindle

Brief Technical Overview
- Total Length: 101mm (10cm)
- Barrel Width: 33mm at plastic and 34mm at O-ring
- Spline Length (Including Toothed Spindle): 64mm (6.4cm) (may be 6.3cm or 63mm and up to 65mm / 6.5cm)
- Number of Teeth on Handle Spindle: 20
- Distance Between Locating Pins: 19.7mm from locating pin centre to centre

3-Way Diverter Cartridge: Shower Spare Part Buying Guide

This replacement 3-way diverter cartridge with long spindle is suitable with many shower valves and steam showers across the UK. This is how you can tell if this is the part you need to complete a successful shower repair.

Di Vapor is your friendly neighborhood spares experts! You can contact us if you need further assistance in identifying shower valve parts.
+ Email us.
+ Chat with us on WhatsApp (contact details: 07754 173340).
We are here to serve your spares needs.

It is usually easy to spot if the shower problem is due to a broken 3-way diverter cartridge. One of the major signs is water drips or flows from the shower head when another water outlet is in use or vice versa. This happens when the seals or other parts of the cartridge wears out.

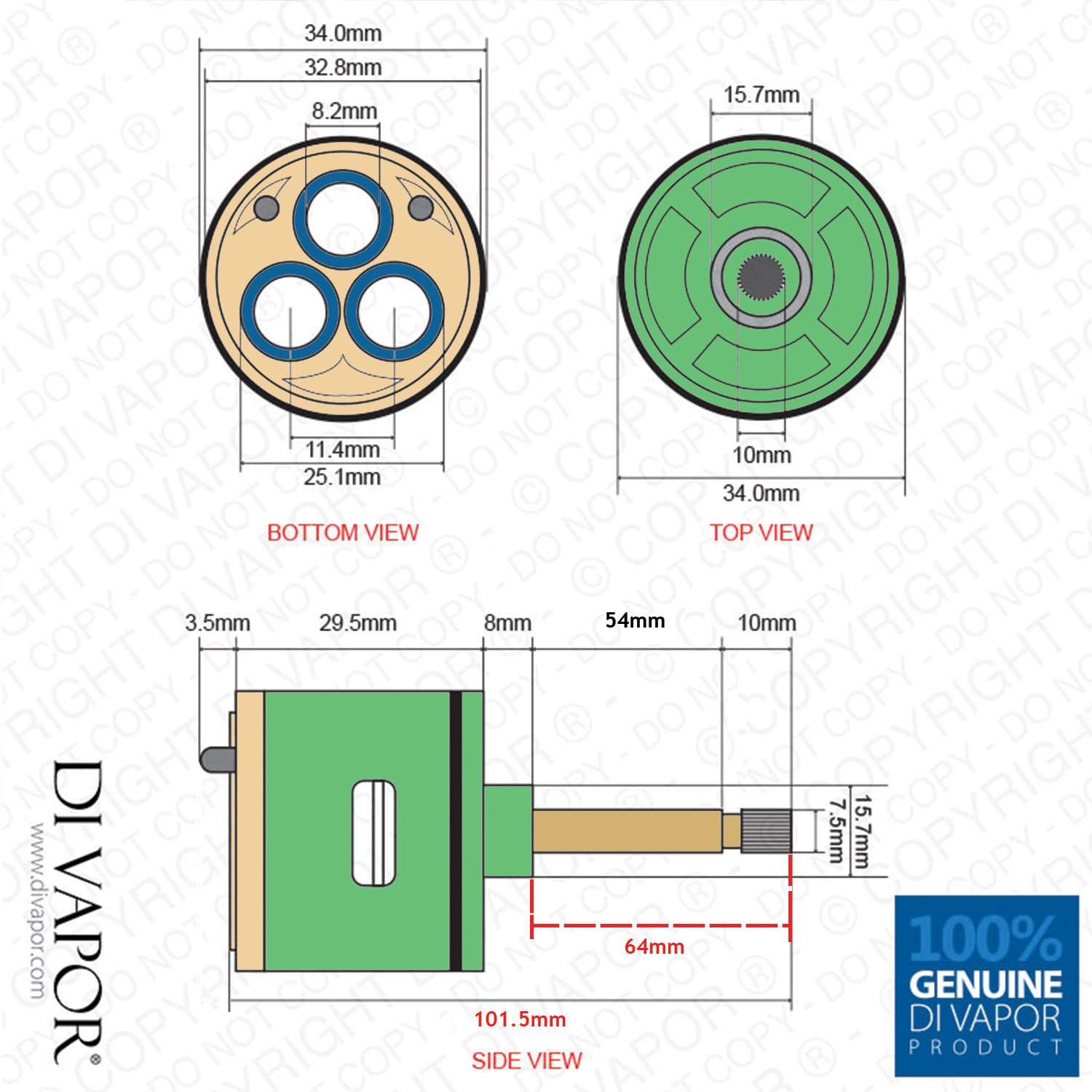

Doing a do-it-yourself diverter cartridge identification is straightforward and no hassle at all. Take the dimensions of the cartridge you have. Approximate it with the measurements of this replacement shower valve part. (Please have a look at the second image in the gallery for a visual representation of the three way diverter cartridge measurements.)


Spline: The number of spline notches on this replacement diverter and your cartridge must be the same. The spline is the part that connects to the shower valve handle. If it is not a match, the handle will not attach properly.

This replacement 3-way diverter cartridge has 20 spline notches.


Cartridge Length and Barrel Diameter: There are many variations in length of a 33mm barrel diameter diverter cartridge. Get the wrong length and it will be either too long or too short for the valve.

This diverter cartridge measures 101mm; approximately 10cm.

Other available lengths for the 33mm barrel 3-way diverter:
– 120mm
– 95mm
– 91mm
– 87mm
– 82mm
– 74mm
– 67mm


Locating Pins: The locating pins are the two small lugs at the bottom of the diverter cartridge. It sits in the two slots in the valve to stop the cartridge from rotating. The distance between the two lugs of the diverter cartridge you have must be the same with this replacement cartridge. If it is not, the part will not fit.

This replacement diverter cartridge has a distance of 19.7mm between each locating pin.
