24-35T6 Shower Diverter Cartridge (27mm) - 18 Spline (20 Spline Counting Missing Splines)

SUMMARY

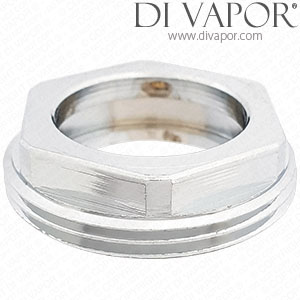

24-35T6 Shower Diverter Cartridge (27mm) - 18 Spline (20 Spline Counting Missing Splines). No locking ring is included anymore. The 20 spline count includes the blank missing splines.

Cartridge Measurements:
Total Length (including bottom seal): 52mm (excluding locating pins)
Diameter at Widest Point: 29mm
Brass Spindle Length (Including Spline): 12mm
Top Spline Diameter: 8mm
Top Spline Teeth / Notches: 20 (only 19 can be counted as there is one spline missing.
Barrel Diameter: 27mm
Number of Function Outlets: 2
Locating Pins: One
