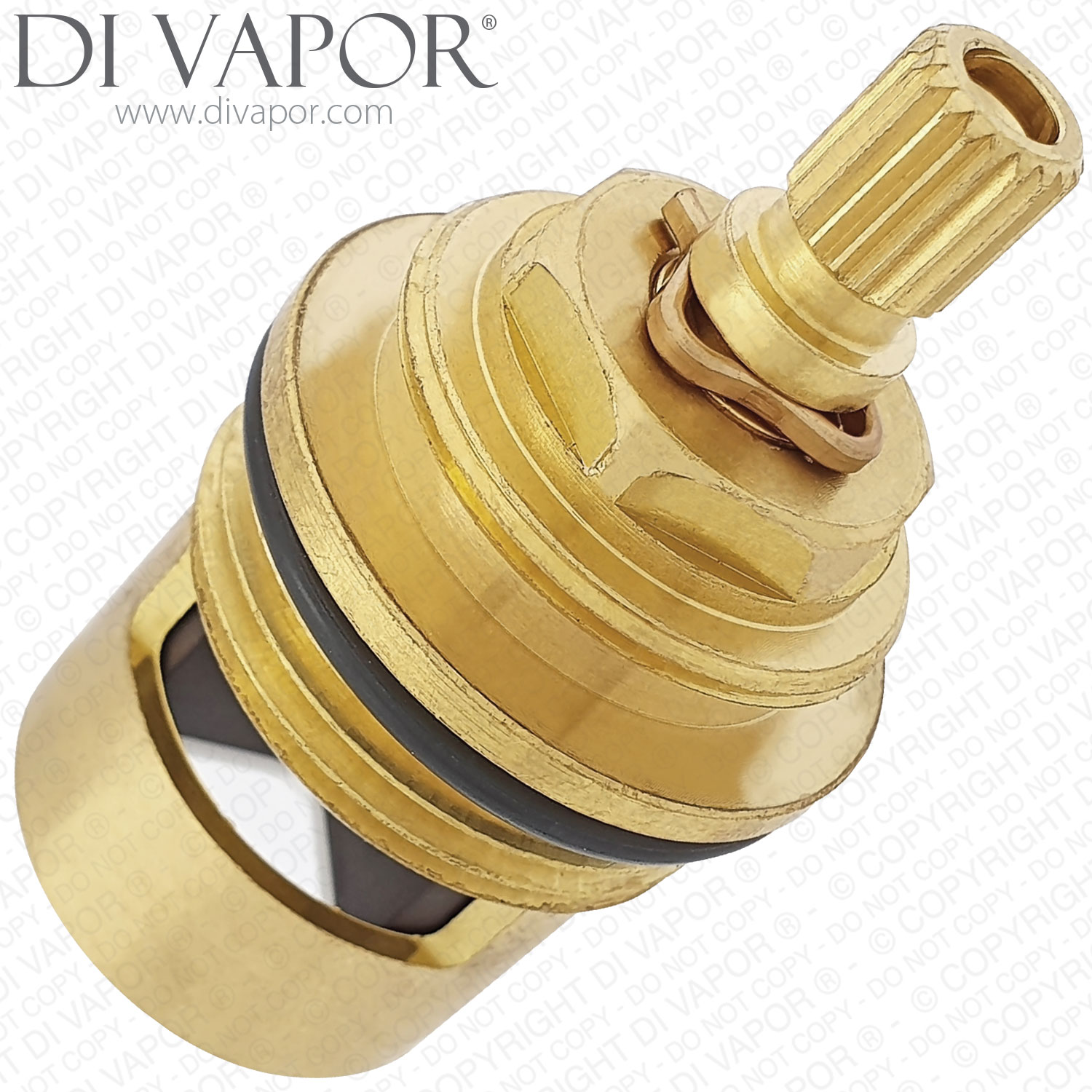

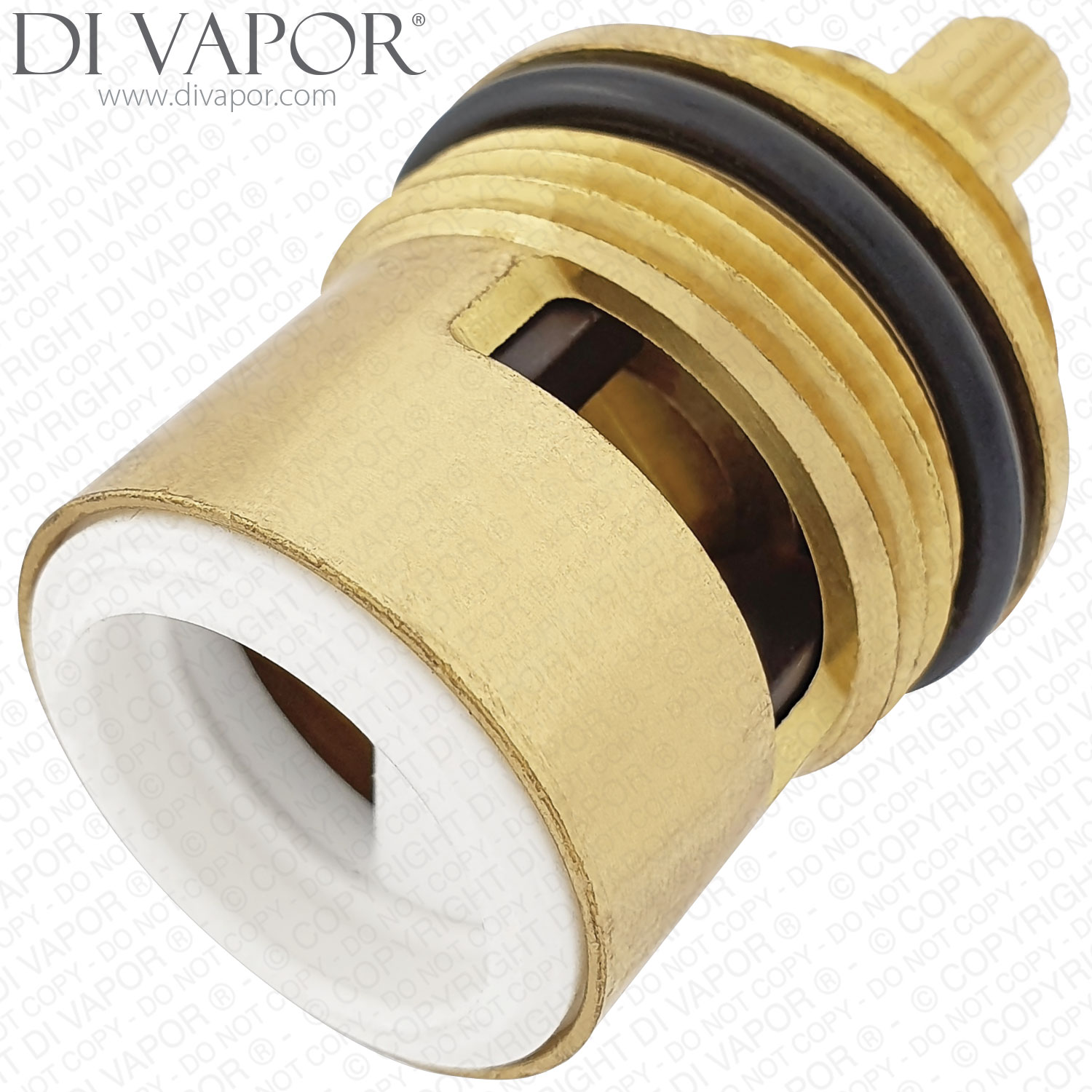

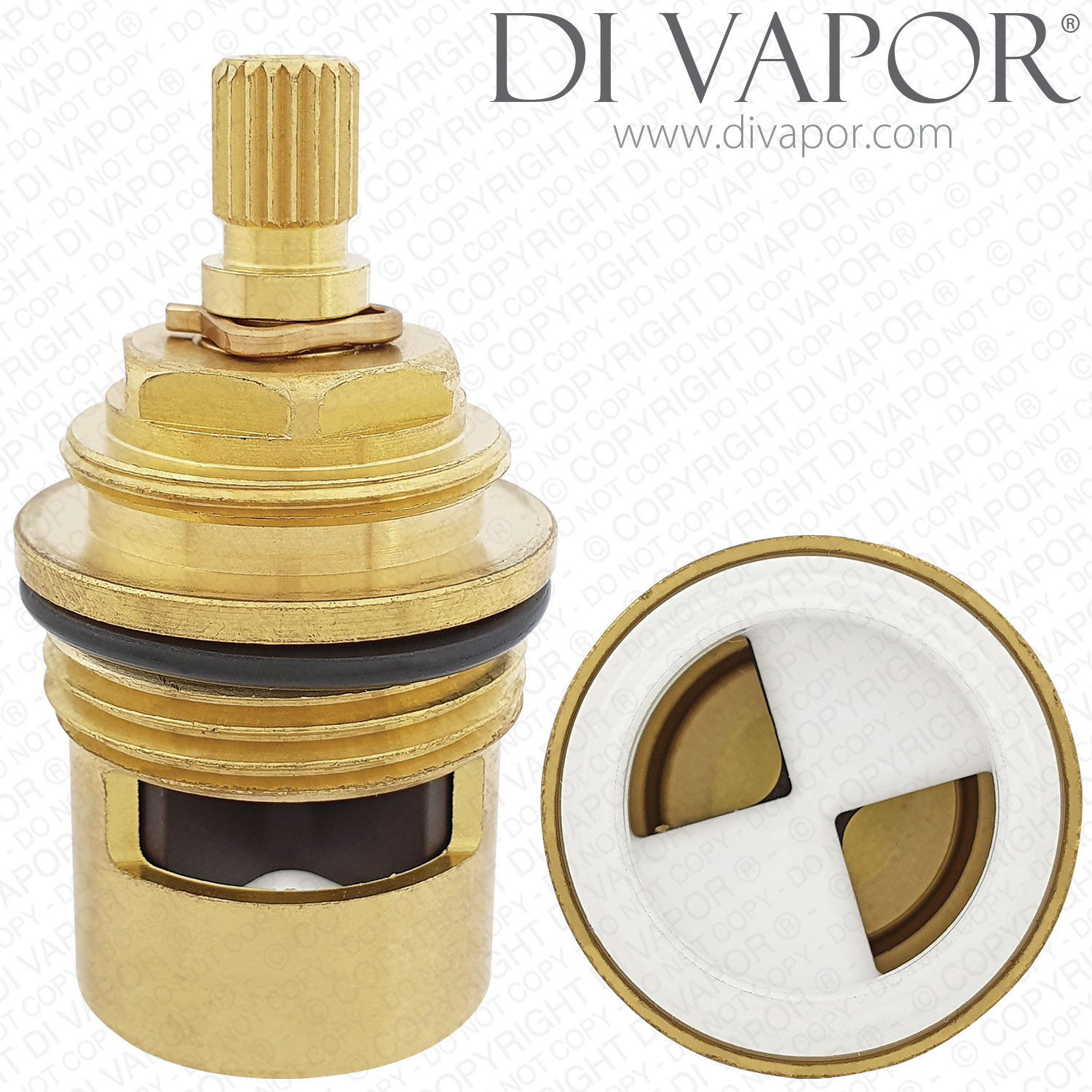

Vado SPA-FLOW-BR On/Off Flow Cartridge

SUMMARY

Vado SPA-FLOW-BR On/Off Flow Cartridge. Please note that Vado has discontinued this cartridge so you will receive a compatible version which visually looks a little different to the photos.

Cartridge Measurements:
Total Length (including bottom seal): 51.8mm
Spindle Length: 14mm (from nut until end)

Diameter at Widest Point: 28.8mm
Top Spline Diameter: 7.4mm
Top Spline Teeth / Notches: 20

Upper Thread (closer to spline): 23.7mm
Lower Thread Diameter: 26.2mm
Barrel Diameter Below Lower Thread: 23.8mm

Bottom Seal Colour: White
Close Direction: Clockwise Close (Anti-Clockwise Open)
Turn: Quarter Turn (1/4 Turn) 90°


Please inquire with us if you have questions regarding Vado shower spares or the SPA-FLOW-BR flow cartridge.
+ Find a Spare Part.
+ WhatsApp (contact info: 07754 173340).
Di Vapor's friendly spares experts will gladly attend to your queries.
We are at your service!
