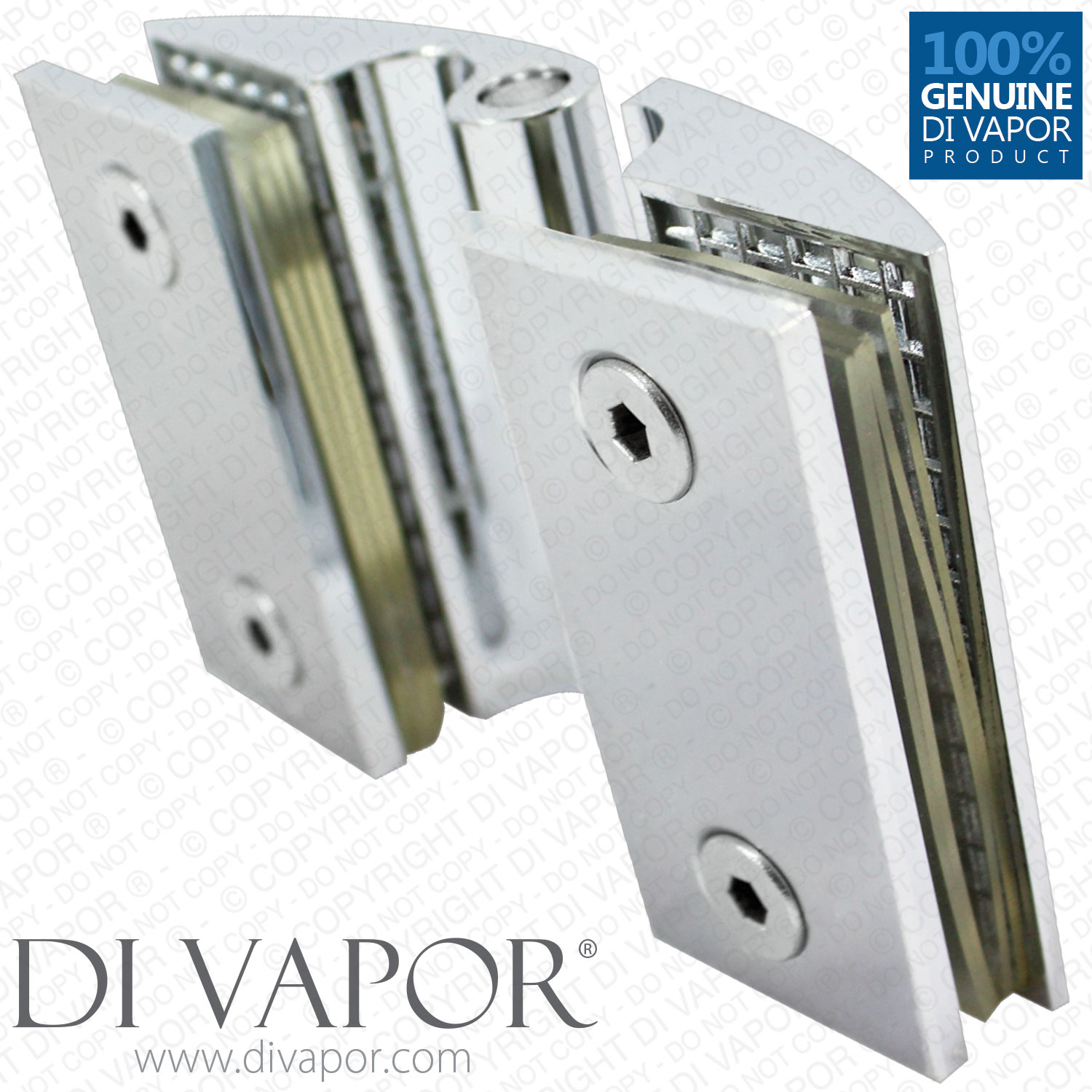

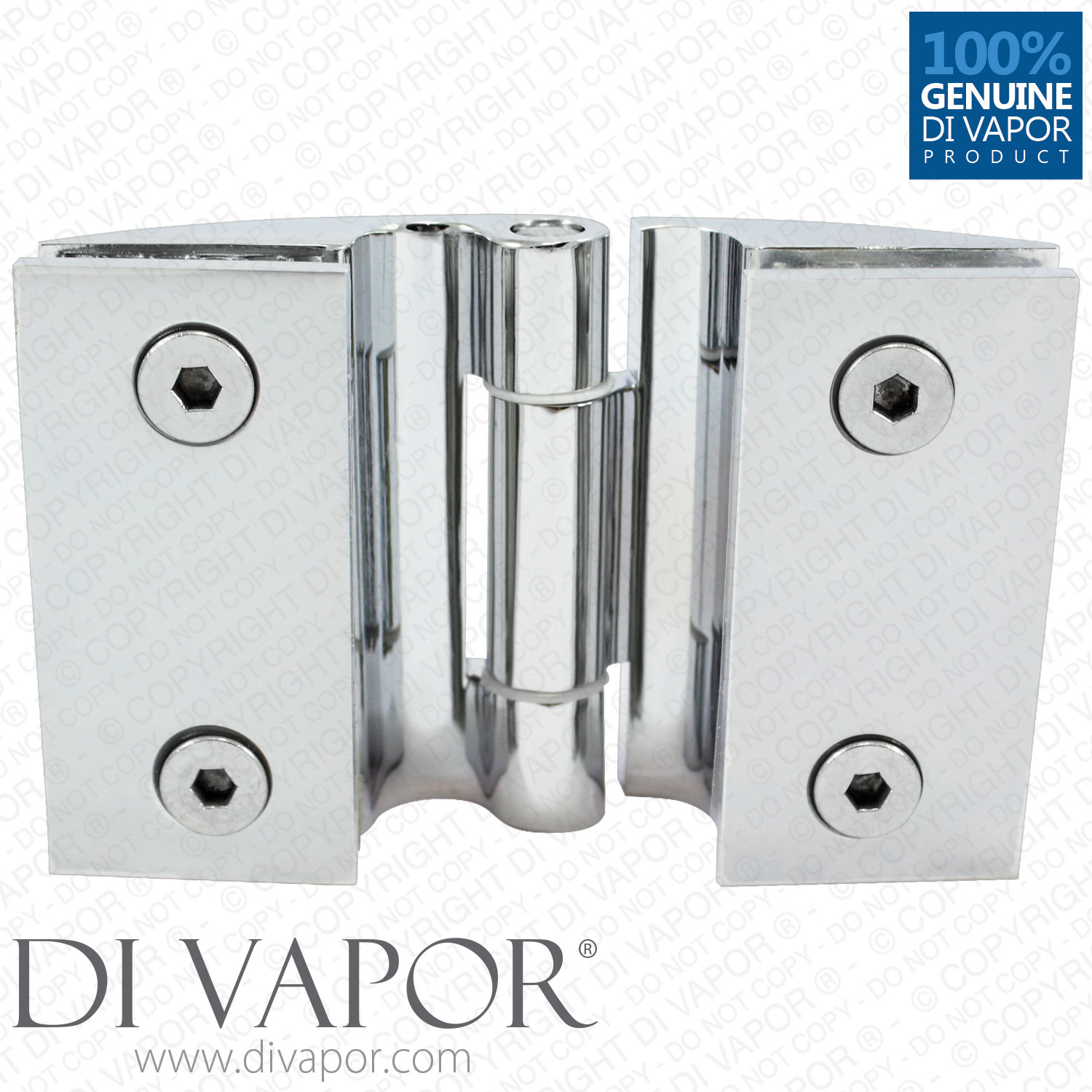

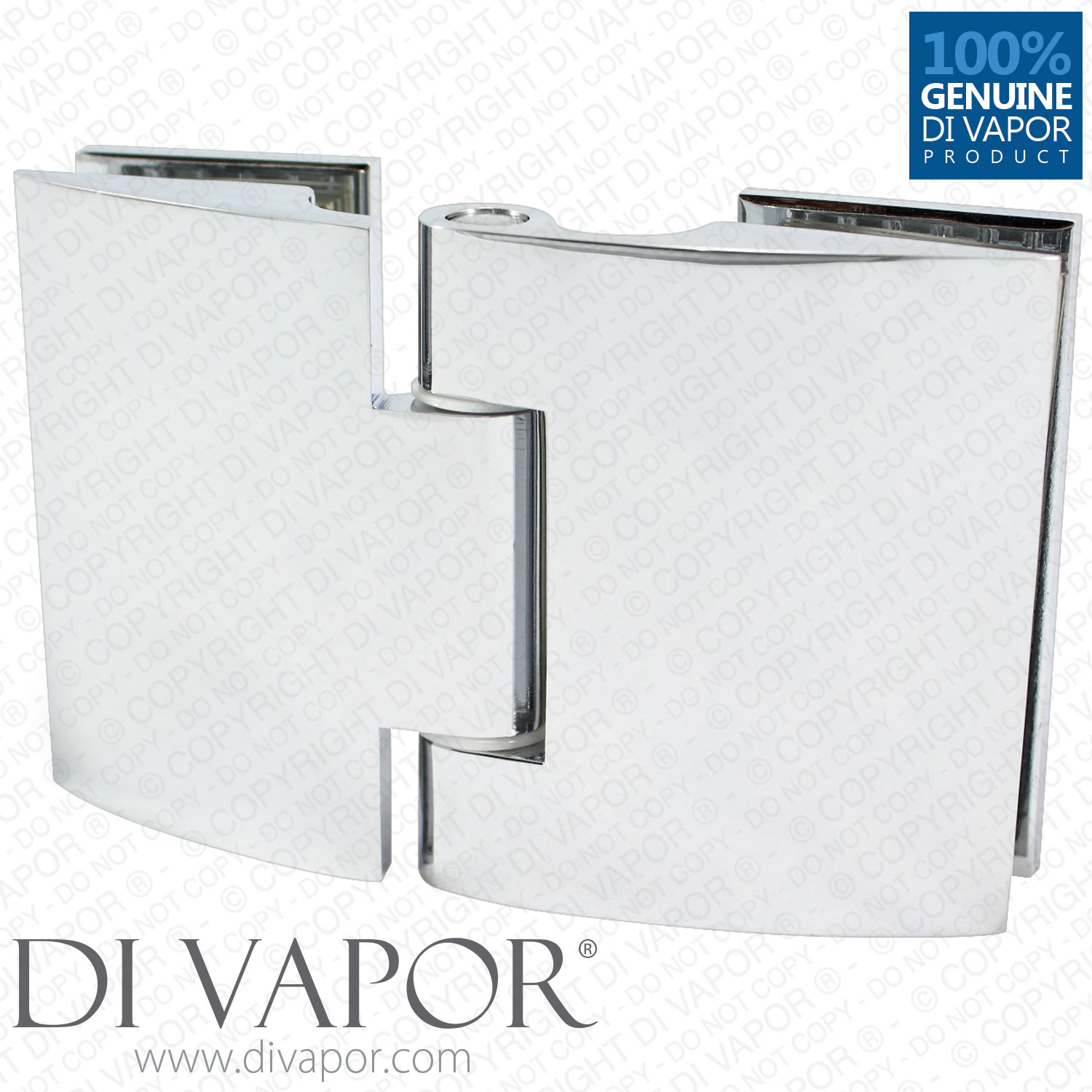

Glass to Glass Clam Shell Hinge for Heavy Glass Shower Door

SUMMARY

IMPORTANT Before ordering any custom glass, please ensure that your glazier is able to inspect the hinge in person. Any slight difference in the cutout before the glass is tempered will result in the glass needing to be re-cut. Di Vapor will not be responsible for any costs incurred with re-temper or re-cutting of glass. DO NOT order your glass before you have ordered the hinge(s) and have them to hand.

--------------

This glass shower door hinge is made from copper with a polished chrome mirror finish and is capable of holding a glass door that is 45 kilograms (as a pair of hinges). Typically, this shower hinge will be installed as a pair and will fit through two holes that are 45mm apart.

This solid clam shell shower door hinge is used on one of Di Vapor's premiere units, The Utopia.

What's included
- The copper 180 degree glass hinge
- Gasket padding (which will come already inside the hinge)
- Glass cut out measurements tech sheet (please see the glass cut out in the image section)

--------------

Useful Information Regarding this Glass Hinge
Glass Thickness: 6 - 12mm
Glass Hole Size Per Fixing Bolt: 5mm
Glass Requirements: Glass cut-out required
Material: Copper
Finish: Polished Chrome
Weight Limit and Maximum Glass Panel Size: The maximum weight limit per hinge is 25kg. We recommend that this weight limit is adhered to and considered when deciding how many hinges are being used per panel. Typical usage for most panels and doors is 2 -3 hinges per side. The maximum width of the glass door should be no more than 700mm.
Door Opening Function: This hinge will open 90 degrees.
Door Closing Function: Normal
Weight: 650g

This hinge is sold individually.
