SUMMARY

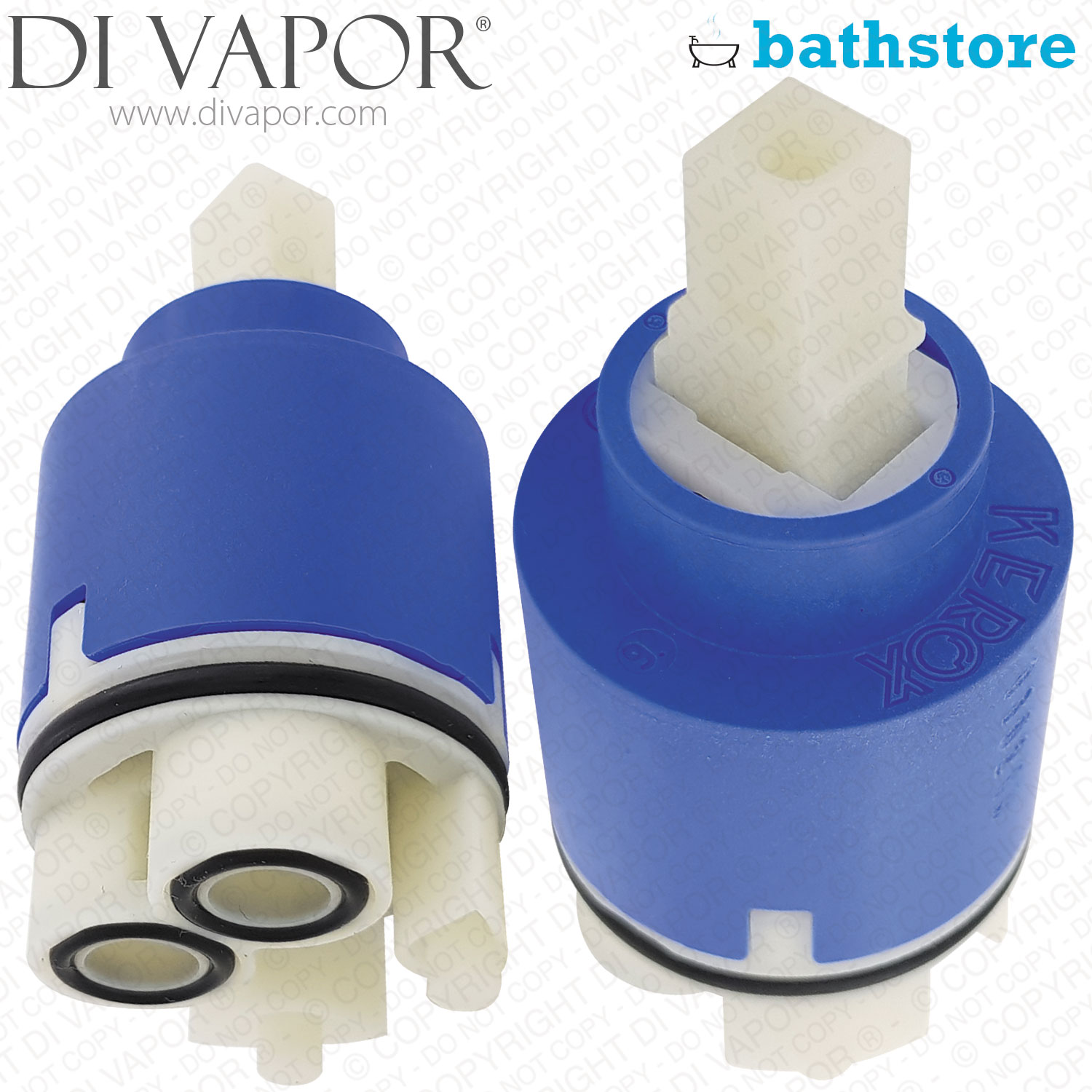

Bathstore 35mm Spare Cartridge for Blade Basin Mono Tap (90000014170)

Total Length (excluding locating pins): 68.5mm
Barrel Diameter: 35mm
Top Square Plastic Handle Lever Diameter: 9mm x 9mm
Distance Between Locating Pins at Bottom (Centre to Centre): 18mm

Frequently Asked Questions: Bathstore 35mm Spare Cartridge 90000014170

Question: How to install the Bathstore cartridge in the Blade tap?
Answer: Fitting the Bathstore 35mm spare cartridge in the Blade Basin Mono tap:

– Turn off the tap’s water supplies.

– The screw cover cap can be found at the back of the lever handle. Remove the screw cap. Use an Allen key to loosen the screw.

– Lift the handle to separate it from the tap valve.

– Unscrew the cartridge cover by hand. Turning it anti-clockwise will remove it.

– Use a spanner against the cartridge retaining nut to unscrew the part.

– Pull the old lever cartridge out of the Blade Basin Mono tap valve seat.

– Lubricate the O-rings of the replacement Bathstore 35mm spare cartridge (90000014170) before fitting it in the valve.
*A selection of the proper plumber’s silicone grease can be seen by scrolling to the last section of this page.

– Make sure the two locating pins at the bottom of the cartridge is inserted in the proper slots in the tap valve. This will prevent the cartridge from shifting in the valve.

– Screw the cartridge retaining nut and tighten with the right amount of torque using the spanner, hand-tight, not too tight.

– Screw back the cartridge cover.

– Put the tap handle on the lever part of the cartridge. See to it that the handle is in the “on” position. This will alleviate some pressure from the seals.

– Secure the handle with the screw and push the screw cover cap back in place.

– Open the tap’s water supplies to check if the Bathstore 35mm spare cartridge is installed properly.

Question: Single lever cartridges look similar to each other. We use a Kohler tap. Is this the right spare part?
Answer: Indeed the Bathstore 35mm spare cartridge (90000014170) looks like many lever cartridges. However, measurement dimensions differ. To answer your question would depend on which Kohler tap you have.

You can use our Find a Part free service so we can ascertain which is the tap spare you need. Provide us with some details and tap or cartridge photos and we will respond to your query with the right spare part as soon as possible.


We offer many Bathstore spare parts. Please explore our Bathstore catalogue which includes:
+ Cartridges
+ Shower door handles
+ Shower door rollers
