SUMMARY

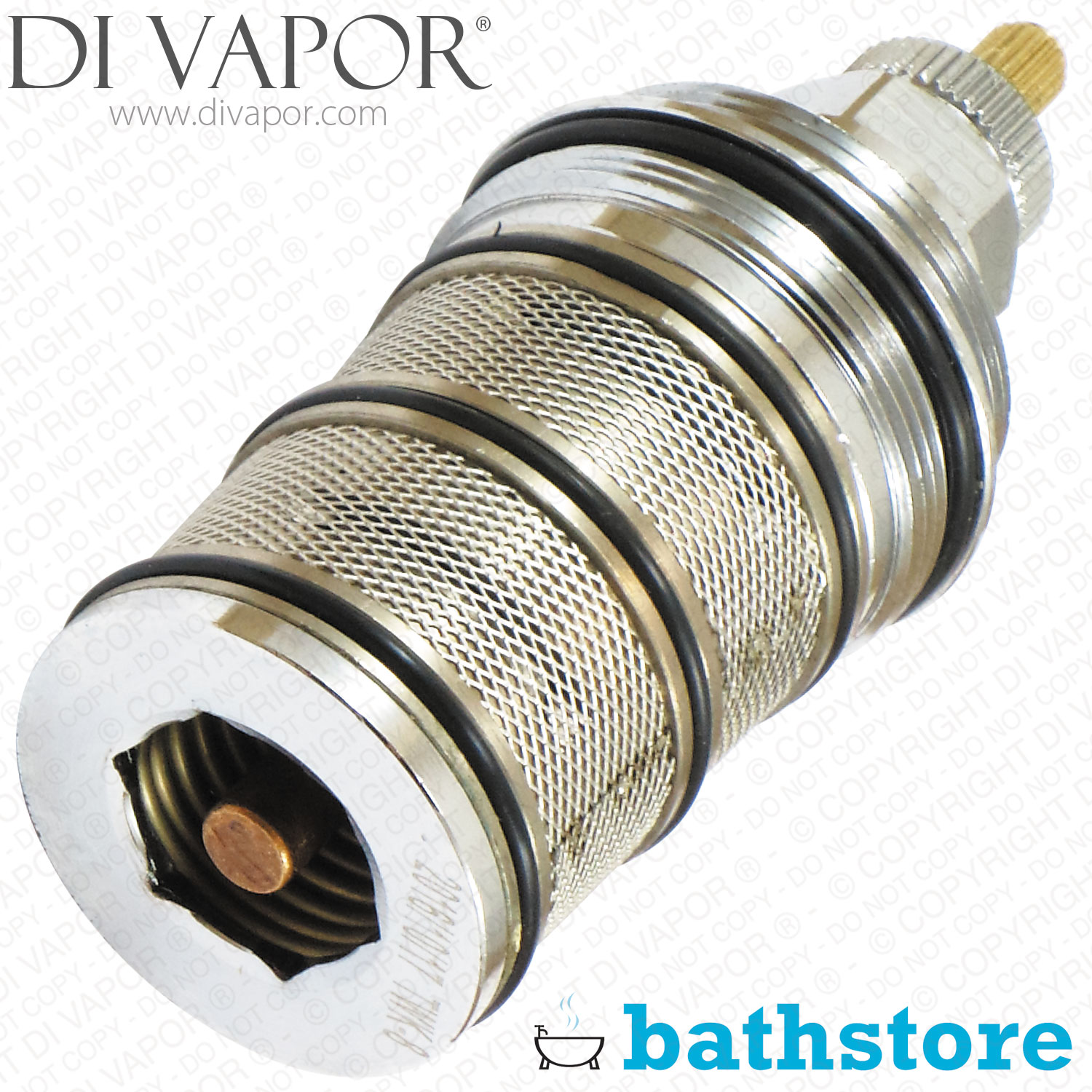

Bathstore 90000014100 Thermostatic Cartridge (KU2001C / 200040004190)

Bathstore Shower Valve Spares: Thermostatic Cartridge 90000014100

Measurements:
Total length: 111mm (11.1cm)
Diameter to widest part: 46.1mm (4.61cm)
Diameter at the bottom of the body: 41.2mm (4.12cm)

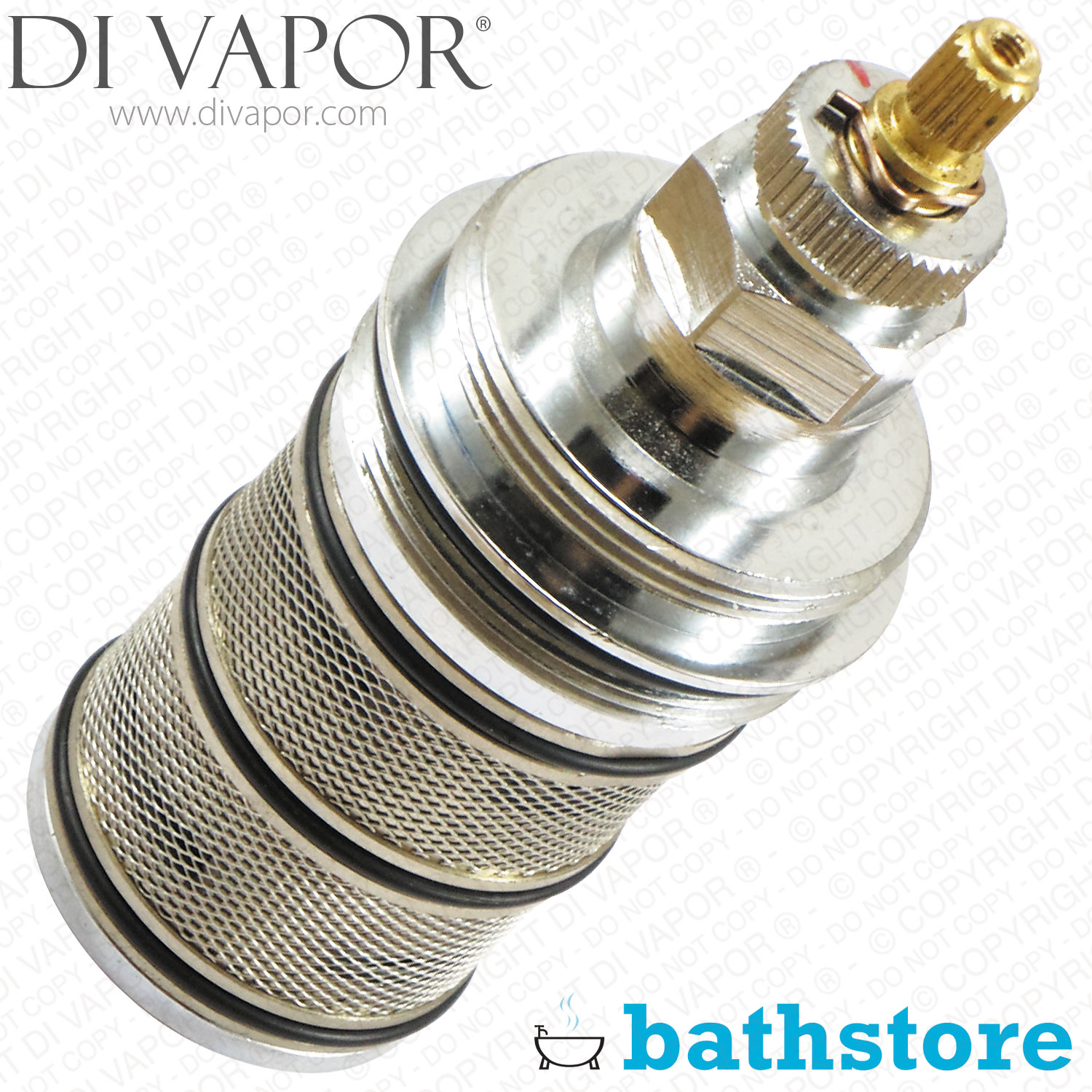

Number of spline tiers: 2 (Please refer to the first photo above to see the spline tiers.)
Teeth count on the smaller spline: 20
Teeth count on the larger spline: 45

Other information:
Material: Brass
Finish: Chrome
Installation: Screw-fit (Threaded cartridge)

Used in (amongst other Bathstore models):
- 20004010270 Quatra 3 Hole Shower Valve and Bath Filler (MI2001C) 2005 Metro

Checking Bathstore Thermostatic Cartridge Replacement Compatibility

You can check your cartridge’s measurements against those given above to know if this replacement part is apt for your shower repair.

Spline counting tip: Mark your starting point with a pen and then count on from there.

This Bathstore thermostatic cartridge can be fitted in many Bathstore shower valves. If you need any help in spare part identification, please do leave us a message with your query or give us a ring at 08454 650 800.
+ We will personally respond to you the quickest we can.
*Weekend queries will be accommodated first on a Monday.

Frequently Asked Questions: Bathstore Thermostatic Cartridge Spare 90000014100

Question: Will a new thermostatic cartridge fix a leaking shower?
Answer: Leaks that originate from the temperature control handle may be due to the cartridge itself. Over years of use, the cartridge wears out. And if the valve has no problems, getting a replacement Bathstore thermostatic cartridge can stop the leak.

Question: There’s a clicking sound when I turn the temperature knob. Is this normal or is something broken?
Answer: Showers are not supposed to click whilst turning the handle. The sound might mean the cartridge has broken down or is breaking down. And a shower repair with a new Bathstore thermostatic cartridge might be needed.


Note:
Please do not forget to coat the O-rings of this replacement part before installing it. This is a helpful step that can prolong the life of the rubber components. (Scroll below for our selection of silicone grease.)

Other Bathstore Shower Valve Spares

We have other Bathstore spare parts in stock and ready to ship:
– Flow cartridges,
– Shower door handles,
– Non-return valve,
– and shower valves.
