Elite Therma Pack Shower Thermostatic Cartridge Replacement - ET839492
Part Number: ET839492
Price: £99.95
SALE: £59.86
You save: £40.09 (40%)
Price includes VAT
IN STOCK
Product description
SUMMARY
Elite Therma Pack Shower Thermostatic Cartridge Replacement. This shower has typically been sold in the UK and Ireland.This cartridge has been used in both shower bars and concealed / exposed shower valves. The cartridge is held in the valve with a grub screw. To remove the cartridge, unscrew the grub screw and pull the cartridge towards you.
Know Your Shower Spares: Elite Therma Pack Shower Thermostatic Cartridge Replacement
The Elite Therma Pack shower thermostatic cartridge can also be used in other shower valves. This is a short informational guide about shower problems and the cartridge itself.

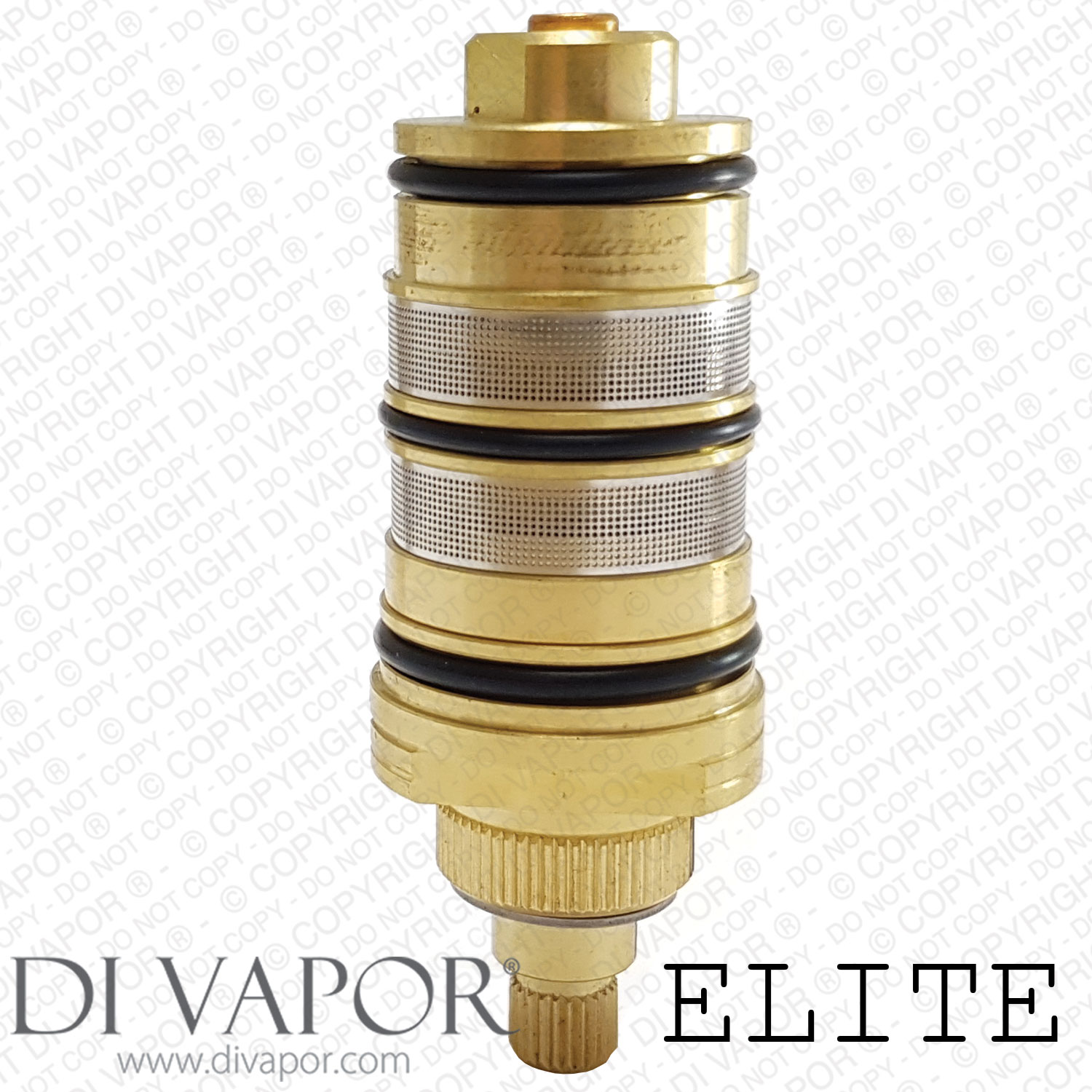

The replacement Elite Therma Pack shower thermostatic cartridge is a non-threaded cartridge making its fitment type push-fit. It has three rubber O-rings, two steel filters and two spline tiers. The wax thermostat element protrudes at the bottom of the cartridge.
Measurements of the Thermostatic Cartridge for Elite Therma Pack Shower
Total Length: 91mm (9.1cm)
Diameter at the Widest Part: 33.8mm (3.38cm)
Diameter at First O-Ring: 33.5mm (3.35cm)
Diameter at Second O-Ring: 32.3mm (3.23cm)
Diameter at Bottom O-Ring: 30.2mm (3cm)
Top Spline Diameter: 9.5mm (0.95cm)
Second Tier Spline Diameter: 22.7mm (2.27cm)

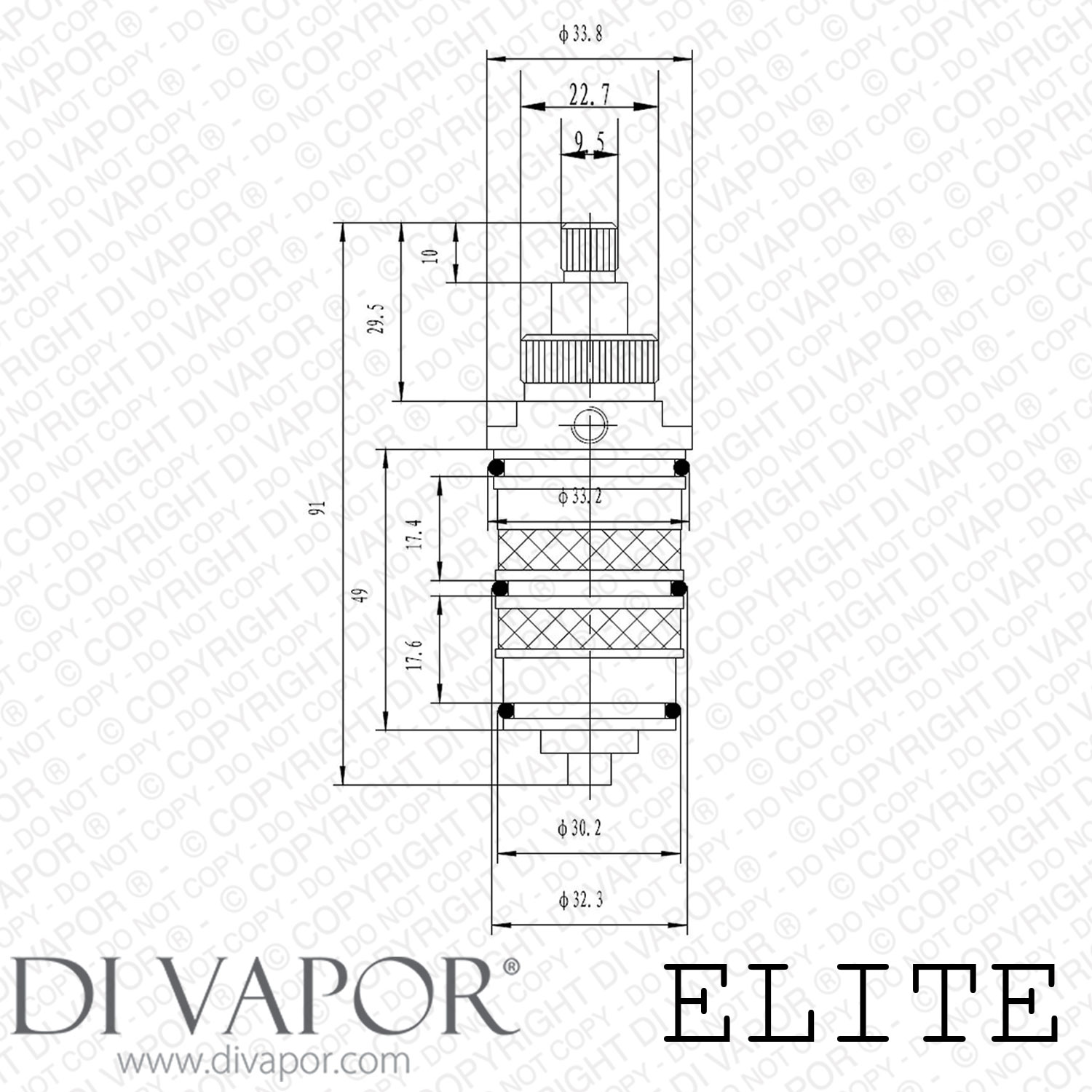

The measurement information can be supplemented with the diagram (see the second image in the gallery) for a well-rounded picture.
Please do not hesitate to contact us should you have questions about the Elite Therma Pack shower thermostatic cartridge or need help in identifying the shower spares you need. We are looking forward to being of service to you. (Messages received on a weekend will be attended to first on Monday.)
When Should the Elite Therma Pack Shower Thermostatic Cartridge be Replaced
As soon as you turn the shower on, water from the mains feeds barrel through the thermostatic cartridge of the Elite Therma Pack. Inside the cartridge, the thermocore works to mix hot and cold water to the preferred temperature blend of the shower user.
Years of use negatively affects the Elite Therma Pack shower thermostatic cartridge. The older your shower is the greater the likelihood you will come across issues related to temperature adjustments, drips or flow rate. Should such issues arise, replacing the cartridge is a better and more cost-effective solution than changing the whole shower valve.
Elite Therma Pack Shower Thermostatic Cartridge Replacement Tips
– Make sure you have the right cartridge needed to carry out a successful shower repair.
– Always remember to isolate/shut-off both hot and cold water supplies. This will prevent injuries in case of accidental water flow.
– In the shower valve, a temperature stop ring sits on top of the Elite Therma Pack thermostatic cartridge. Remember the position of the “stop”. (The “stop” is the elevated portion on the face of the stop ring.) This part has to be returned in the same position when reassembling the valve.
– Lubricate the O-rings of the replacement Elite Therma Pack thermostatic cartridge. It will help the cartridge seal in the valve and it protects the O-rings from deteriorating earlier.
Please move to the last section of the page to see the plumbers grease we offer.
With Di Vapor, your shower repair spares are covered.
+ Thermostatic, flow and diverter cartridges will get your shower running like normal.
+ Replacement shower valves when limescale has fused the broken cartridge in the valve.
+ Shower door handles and rollers to make your shower enclosure look and feel new.
Top reasons to buy from us?
+ Unbeatable prices.
+ Quality spare parts.
+ Fantastic customer care and service.
+ Fast shipping.
All spares and the Elite Therma Pack Shower Thermostatic Cartridge will be shipped out on the same business day when the purchase is made on a weekday before 3 PM.
The Elite Therma Pack shower thermostatic cartridge can also be used in other shower valves. This is a short informational guide about shower problems and the cartridge itself.
The replacement Elite Therma Pack shower thermostatic cartridge is a non-threaded cartridge making its fitment type push-fit. It has three rubber O-rings, two steel filters and two spline tiers. The wax thermostat element protrudes at the bottom of the cartridge.
Measurements of the Thermostatic Cartridge for Elite Therma Pack Shower
Total Length: 91mm (9.1cm)
Diameter at the Widest Part: 33.8mm (3.38cm)
Diameter at First O-Ring: 33.5mm (3.35cm)
Diameter at Second O-Ring: 32.3mm (3.23cm)
Diameter at Bottom O-Ring: 30.2mm (3cm)
Top Spline Diameter: 9.5mm (0.95cm)
Second Tier Spline Diameter: 22.7mm (2.27cm)
The measurement information can be supplemented with the diagram (see the second image in the gallery) for a well-rounded picture.
Please do not hesitate to contact us should you have questions about the Elite Therma Pack shower thermostatic cartridge or need help in identifying the shower spares you need. We are looking forward to being of service to you. (Messages received on a weekend will be attended to first on Monday.)
When Should the Elite Therma Pack Shower Thermostatic Cartridge be Replaced
As soon as you turn the shower on, water from the mains feeds barrel through the thermostatic cartridge of the Elite Therma Pack. Inside the cartridge, the thermocore works to mix hot and cold water to the preferred temperature blend of the shower user.
Years of use negatively affects the Elite Therma Pack shower thermostatic cartridge. The older your shower is the greater the likelihood you will come across issues related to temperature adjustments, drips or flow rate. Should such issues arise, replacing the cartridge is a better and more cost-effective solution than changing the whole shower valve.
Elite Therma Pack Shower Thermostatic Cartridge Replacement Tips
– Make sure you have the right cartridge needed to carry out a successful shower repair.
– Always remember to isolate/shut-off both hot and cold water supplies. This will prevent injuries in case of accidental water flow.
– In the shower valve, a temperature stop ring sits on top of the Elite Therma Pack thermostatic cartridge. Remember the position of the “stop”. (The “stop” is the elevated portion on the face of the stop ring.) This part has to be returned in the same position when reassembling the valve.
– Lubricate the O-rings of the replacement Elite Therma Pack thermostatic cartridge. It will help the cartridge seal in the valve and it protects the O-rings from deteriorating earlier.
Please move to the last section of the page to see the plumbers grease we offer.
With Di Vapor, your shower repair spares are covered.
+ Thermostatic, flow and diverter cartridges will get your shower running like normal.
+ Replacement shower valves when limescale has fused the broken cartridge in the valve.
+ Shower door handles and rollers to make your shower enclosure look and feel new.
Top reasons to buy from us?
+ Unbeatable prices.
+ Quality spare parts.
+ Fantastic customer care and service.
+ Fast shipping.
All spares and the Elite Therma Pack Shower Thermostatic Cartridge will be shipped out on the same business day when the purchase is made on a weekday before 3 PM.
