Noken Thermostatic Cartridge 100060463 for Neox | Logic | Quatro | Bela | Soft | Basic | Future | Imagine and Liberty Valves

SUMMARY

Noken (NK) 100039544, 100060452, 100060463, 1000604463 thermostatic cartridge which is used in the following Porcelanosa Noken shower mixer valves:

- Porcelanosa Noken NK Neox Dual Concealed Shower Valve
- Porcelanosa Noken NK Quatro Dual Concealed Shower Valve
- Porcelanosa Noken NK Soft Dual Concealed Shower Valve
- Porcelanosa Noken NK Basic Dual Concealed Shower Valve
- Porcelanosa Noken NK Future Dual Concealed Shower Valve
- Porcelanosa Noken NK Liberty Dual Concealed Shower Valve
- Porcelanosa Noken NK Imagine Dual Concealed Shower Valve
- 100060452
- NK Logic Thermostatic Shower Valves (Twin and Triple)
- 100039544
- NK LOGIC - BELA 100065016 - N211000016
- NK LOGIC - BELA 100104972 - N111390022
- NK LOGIC - BELA 100104973 - N111390023
- NK LOGIC - BELA 100104974 - N111390021
- 100060463
- NK BASIC Wall mounted exposed thermostatic shower mixer 100059722

Cartridge Measurements and Information
Installation Type: Screw Fit (turn anti clockwise to remove from your valve)

Total Cartridge Length (including thermostat element): 103.7mm

Length of cartridge from top of spline to bottom of brass body (hexagonal nut): 101mm

Number of teeth on top spindle spline (which the temperature handle connects onto): 20

Width of top spindle spline (which the temperature handle connects onto): 7.5mm

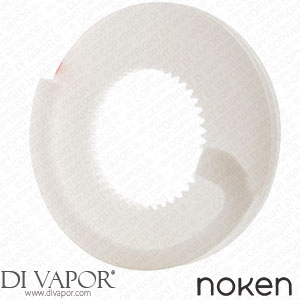

Number of teeth of second toothed spline (which the temperature stop ring connects onto): 45

Width of second toothed spline (which the temperature stop ring connects onto): 20mm

Diameter of screw thread: 35.8mm

Diameter of top O'ring: 34.5mm

Diameter of middle O'ring: 34.5mm

Diameter of bottom O'ring: 34mm

Number of O'Rings: 3

Material: Brass

Type: Screw in

Gauze Filters: 2

Wax Element: Vernet (France) (at the bottom of the cartridge on the wax thermostat element, it will read . Vernet . France . ).

Should your shower be having difficulties regulating water temperature, the likely problem is the thermostatic cartridge, especially for those in hard water areas.
