SUMMARY

Noken thermostatic cartridge which is used in the following Porcelanosa Noken shower mixer valves:

- Porcelanosa Noken NK Dune Shower Bar Mixer Valve

- Porcelanosa Noken NK Soft Shower Bar Mixer Valve (with and without tap)

- Porcelanosa Noken NK Libra Shower Bar Mixer Valve

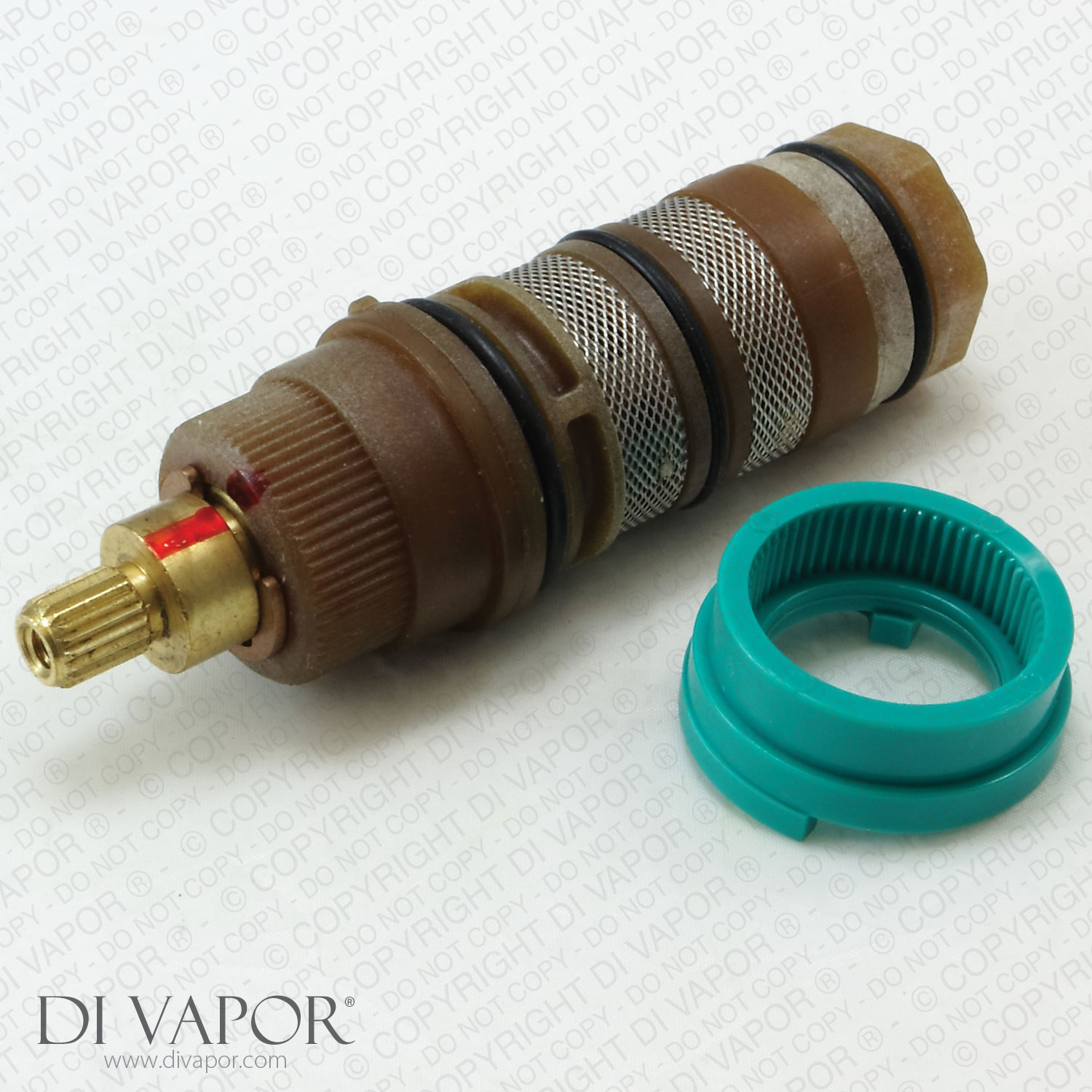

Include
- Thermostatic Cartridge
- Temperature stop ring (green part in photo)

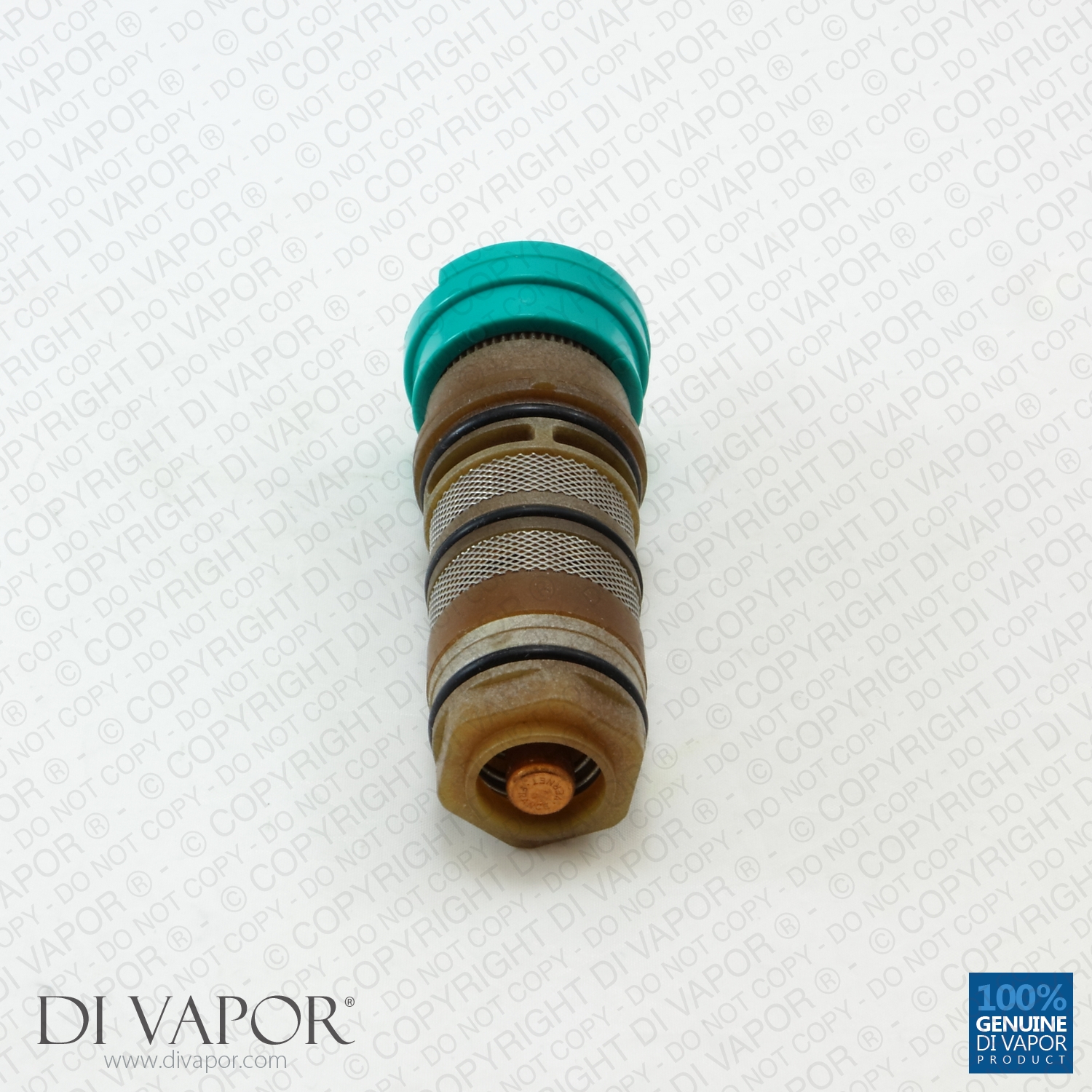

Porcelanosa Shower Thermostatic Cartridge Measurements and Information

Installation Type: Screw Fit (turn anti clockwise to remove from your valve)

Total Cartridge Length (including thermostat element): 90.6mm

Number of teeth on top spindle spline (which the temperature handle connects onto): 20

Width of top spindle spline (which the temperature handle connects onto): 7.5mm

Number of teeth of second toothed spline (which the temperature stop ring connects onto): 60

Width of second toothed spline (which the temperature stop ring connects onto): 22.9mm

Diameter of top O ring: 26mm

Diameter of middle O ring: 24.5mm

Diameter of bottom O ring: 23.5mm

Number of ORings: 3

Material: Plastic Polymer

Type: Push fit installation

Gauze Filters: 2

Colour: Brown

Wax Element: Vernet (France) (at the bottom of the cartridge on the wax thermostat element, it will read . Vernet . France . ).

This thermo cartridge is typically used in shower bar valves.


Contact us through our spare part identifier free service should you have any questions or encounter any difficulty in searching for spare parts. Our spares experts are ready to help you.

Frequently Asked Questions: Porcelanosa Shower Spares – Thermostatic Cartridge with Temperature Stop Ring

Question: Is having weak water flow a symptom the thermostatic cartridge is wearing out?
Answer: Weak water flow can be one of the reasons why the temperature cartridge needs to be replaced. This Porcelanosa NK shower thermostatic cartridge has 2 gauzing that filter water. Over some time, these filters get clogged by minerals and dirt that build up which can be the likely cause of poor water flow.

Other signs that tell the Porcelanosa shower valve needs a new thermostatic cartridge include:
– unstable water temperature,
– stiff shower control handles, and
– a dripping tap or shower head.


We supply an array of NK Porcelanosa shower spares.
