SUMMARY

Thermostatic Cartridge for Abode Shower Mixer Valves (Spring, Push Fit) used on Concealed Showers

Concealed Shower Valve Parts Common Questions: Abode Shower Mixer Replacement Thermostatic Cartridge

Please contact us should you have more questions about the thermostatic cartridge for Abode shower valves or need help is shower spares identification.

You can also chat with us via WhatsApp (07754 173340). We are always more than happy to assist you.

Question: Why do I need to replace the Abode shower thermostatic cartridge?
Answer: The thermostatic cartridge for Abode shower mixer valves will deteriorate the longer it is in use. Causes of deterioration include:

– wear and tear;
– poor water quality;
– and excess water pressure.

Problems will emerge once the Abode thermostatic cartridge is damaged. These problems include:

– difficulty adjusting water temperature;
– failure to adjust water temperature;
– inconsistent to weak water flow;
– and leaks.

If the cartridge is not replaced, these problems will not be resolved. It could also lead to bigger problems that will require a more expensive solution (i.e. shower valve replacement).

Question: Please confirm if the cartridge has a retaining nut because if it has I cannot remove it.
Answer: The thermostatic cartridge for Abode concealed shower mixers is a non-threaded, push-fit cartridge with spring. Therefore, it has a nut that holds it inside the valve. You might be having a hard time removing the nut because of the calcified hard water minerals.

– You can spray a loosening agent (WD-40) and leave it soaking overnight to soften the minerals. See if this will work by trying to remove the nut again.

– You can pour boiling water (or point a hairdryer in the hottest setting) over the retaining nut. Hopefully, the heat will cause the nut to expand and break it free from the limescale.

Question: Abode shower valve makes a clicking sound every time the temperature control handle is turned. Is the thermostatic cartridge broken?
Answer: Yes, the cartridge might be broken. Installing a replacement thermostatic cartridge for Abode shower mixers may solve the issue.

Question: Can you give me some tips in replacing the Abode thermostatic cartridge?
Answer: These are a few basic tips when changing the thermostatic cartridge for Abode concealed shower mixer.

1. Shut off the valve’s pressure and water supplies. This will prevent the possibility of scalding and will keep the Abode cartridge from accidentally springing out of the valve.

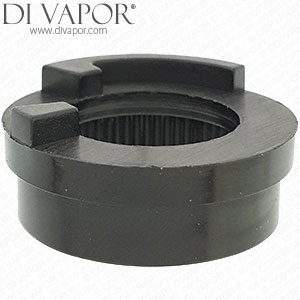

2. Remember the sequence of the parts as you remove it; particularly the orientation of the elevated part of the temperature stop ring. These parts have to be put back in reverse order and the elevated part of the stop ring returned in the same position.

3. Apply a thin coating of heat-resistant plumbing grease on the O-rings of the replacement thermostatic cartridge for Abode shower valves before introducing it in the valve. The grease will help the new cartridge seal and seat in the valve properly.

*Please jump to the last section of the page to see the silicone grease for plumbing that we have on offer.

4. After the shower valve is reassembled, open water supplies and check if the repair is a success. Then cycle the shower from hot to cold a few times to condition the newly installed Abode thermostatic cartridge.

Please check out our Thermostatic Cartridge Guide for more information.


We have many Abode spare parts in stock and ready to ship.
+ Thermostatic Cartridges
+ Lever Cartridges
+ Tap Cartridges


All spares – including the push-fit with spring thermostatic cartridge for Abode shower mixers – are despatched on the same business day when purchased before 3 PM from Monday to Friday.
