Thermostatic Cartridge for Porcelanosa Eurohub V54001A SC26 Thermostatic Cartridge for Porcelanosa Eurohub V54001A SC26Thermostatic Cartridge for Porcelanosa Eurohub V54001A SC26 Shower Mixer Valves

Thermostatic Cartridge for Porcelanosa Eurohub V54001A Shower Mixer Valves

Part Number: DIV-EUROHUB-CART

SALE: £119.74

You save: £74.26 (38%)
Price includes VAT
Quantity:
ADD TO BASKET
IN STOCK
Wrong Item? Click to see More
UK Lowest Price Guaranteed
Next Day Delivery Available
Product description

SUMMARY

Replacement brass screw in cartridge for Porcelanosa Eurohub V54001A Shower Mixer Valves.

Technical Information and Measurements for the for Porcelanosa Eurohub V54001A SC26 Replacement
  • Total Cartridge Length (including thermostat element): 103.7mm

  • Length of cartridge from top of spline to bottom of brass body (hexagonal nut): 101mm

  • Number of teeth on top spindle spline (which the temperature handle connects onto): 20

  • Width of top spindle spline (which the temperature handle connects onto): 7.5mm

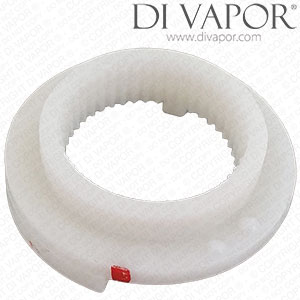

  • Number of teeth of second toothed spline (which the temperature stop ring connects onto): 45

  • Width of second toothed spline (which the temperature stop ring connects onto): 20mm

  • Diameter of screw thread: 35.8mm

  • Diameter of top O'ring: 34.5mm

  • Diameter of middle O'ring: 34.5mm

  • Diameter of bottom O'ring: 34mm

  • Number of O'Rings: 3

  • Material: Brass

  • Type: Screw in

  • Gauze Filters: 2

  • Wax Element: Vernet (France) (at the bottom of the cartridge on the wax thermostat element, it will read . Vernet . France . ).


  • The Eurohub / Porcenelosa V54001A SC26 cartridge is a reliable well built cartridge however over time it will deteriorate. If you are finding your water performance dropping, either through pressure or temperature problems, then replacing the thermo cartridge could fix the issue.

    Not the cartridge you're looking for? Not a problem. Send us a photo Here and we'll get back to you with the cartridge you need
