Porcelanosa Noken 100056989 NK 3 Way Diverter Cartridge for Liberty and Logic Shower Valves (100060475 / 100060475_N2520000013)

SUMMARY

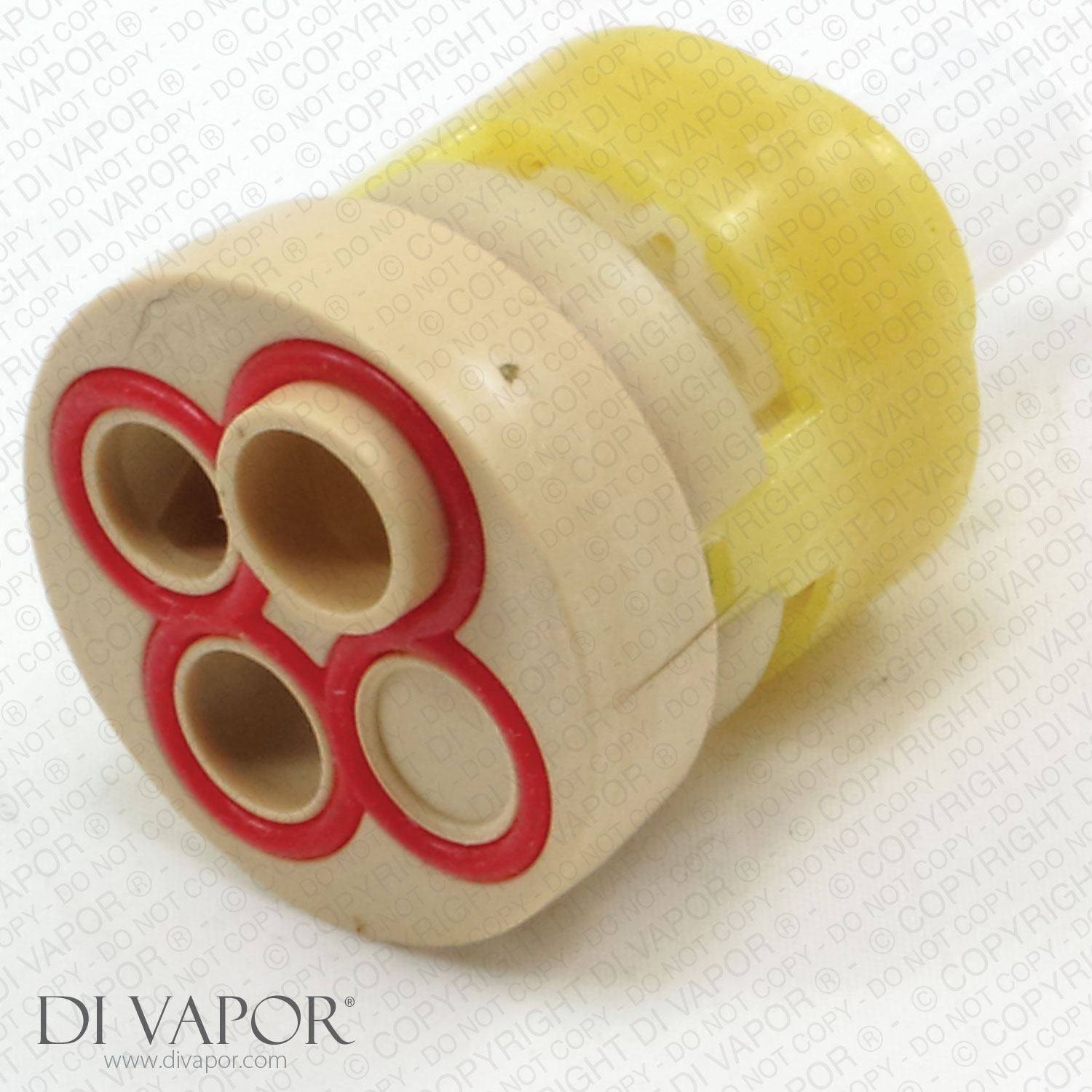

Noken 100056989 and 100060475 three way diverter cartridge which is used in NK Liberty and NK Logic shower valves.

Cartridge Measurements and Information

Total Length:

46.3mm (4.6cm) (this is not including the protruding part at the bottom of the cartridge.

Barrel Width:

29.9mm (at the bottom at the widest poing)

Barrel Width:

26.1mm (at widest yellow point)

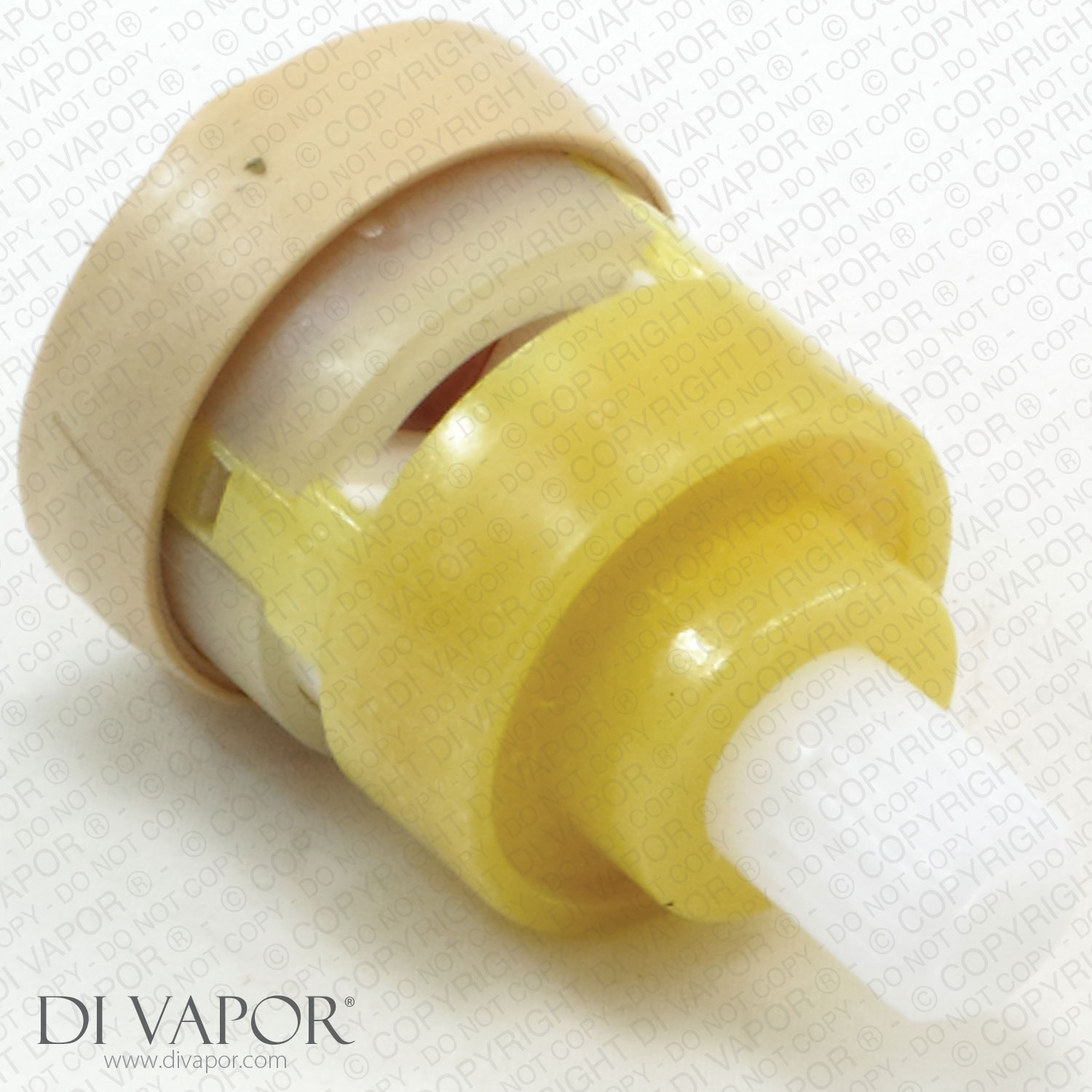

Spline Length (Plastic White Toothed Spindle):

12mm (1.2cm)

Number of Teeth on Handle Spindle:

15

Diameter of Spindle (with teeth):

10.1mm

Colours:

Yellow and white

Material:

Plastic

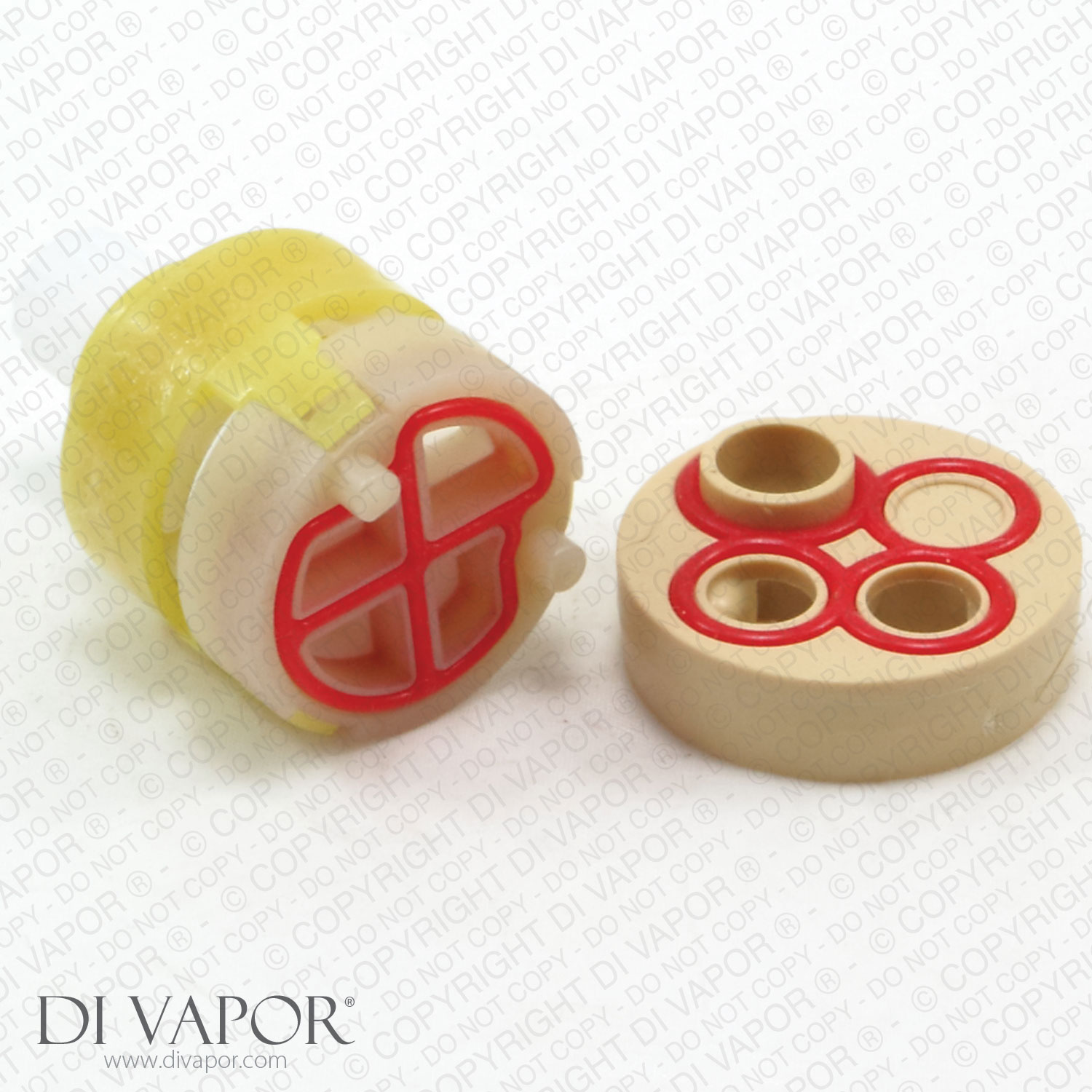

This cartridge splits apart near the bottom and can be separated into two parts.


Frequently Asked Questions: Porcelanosa Noken Shower Spare – NK 100056989 and 100060475 3-Way Diverter Cartridge

Question: How can I remove the 100056989 cartridge from the NK Logic valve?
Answer: Remove the handles of the NK Logic shower valve. The screw is usually located under each of the handles. Remove the retaining rings and the wallplate. Remove the diverter housing assembly. Remove the diverter cartridge.

Apply a small amount of plumbing grease on the O-rings of the replacement NK Porcelanosa spare diverter cartridge. Then, fit it in the valve.

Question: Are there definitive signs the diverter cartridge must be changed?
Answer: Signs the NK 100056989 diverter cartridge may need replacing is if it leaking from the diverter handle or it has failed to divert water from the tap to the showerhead.


We provide many other Porcelanosa Noken shower spares. In stock (unless stated otherwise) and ready for shipping.

*All spare parts ordered before 3:00 PM (Mondays to Fridays) will be dispatched on the same day.


Having trouble determining which spare part is needed to fix the shower, tap, bath or sauna?
– Use our spare part identifier. We will gladly do the search for you.
(Queries sent on a weekend will be responded to first on Monday.)
