SUMMARY

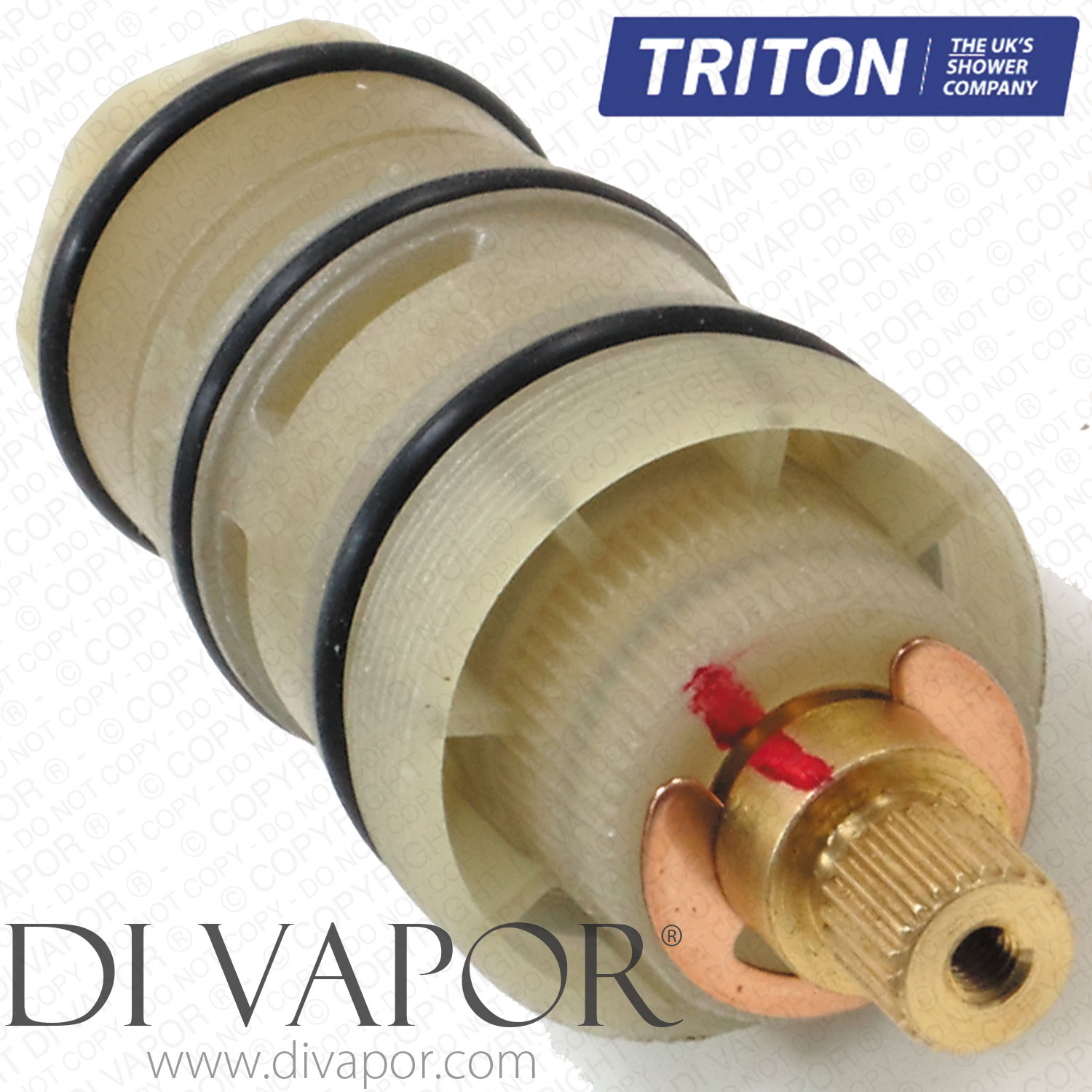

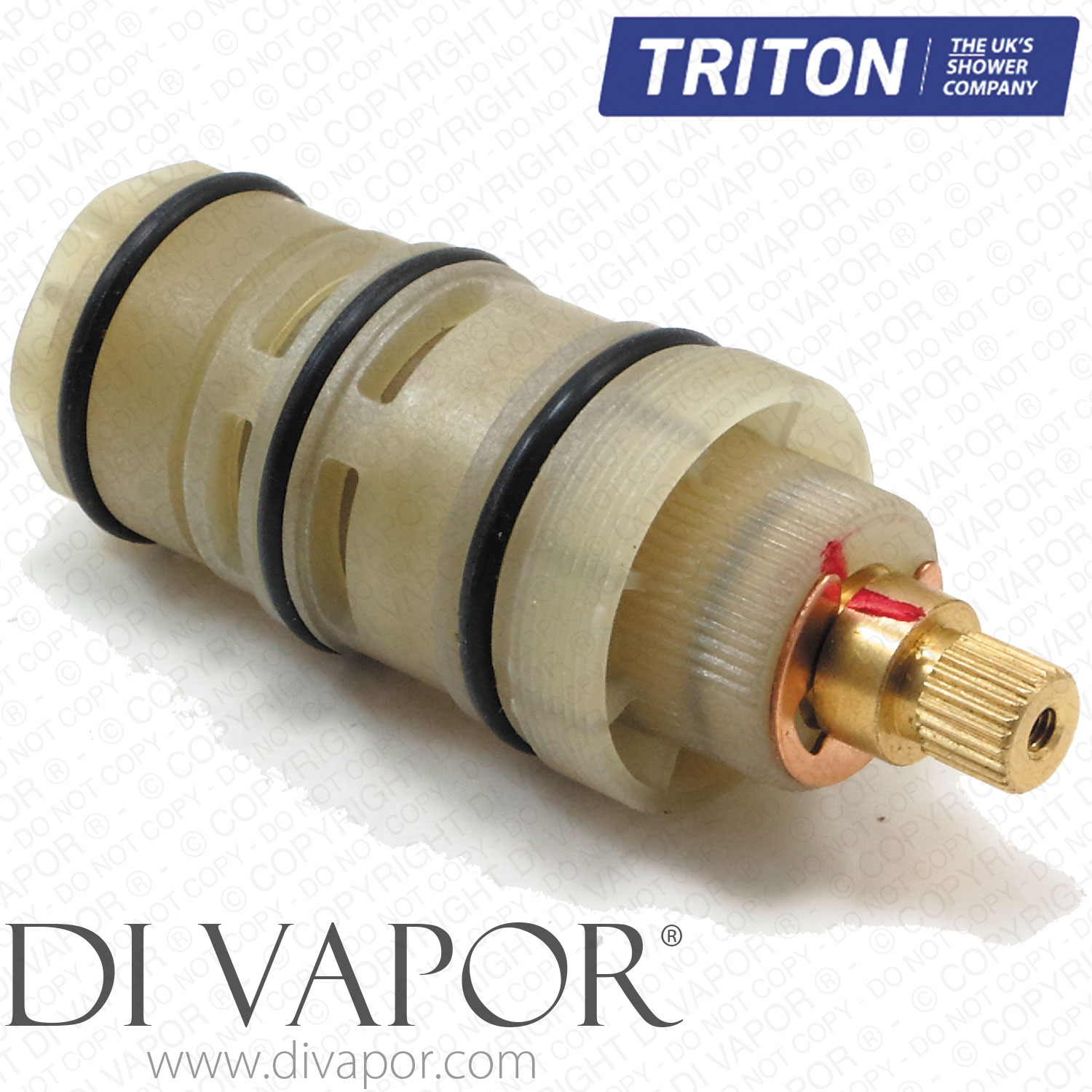

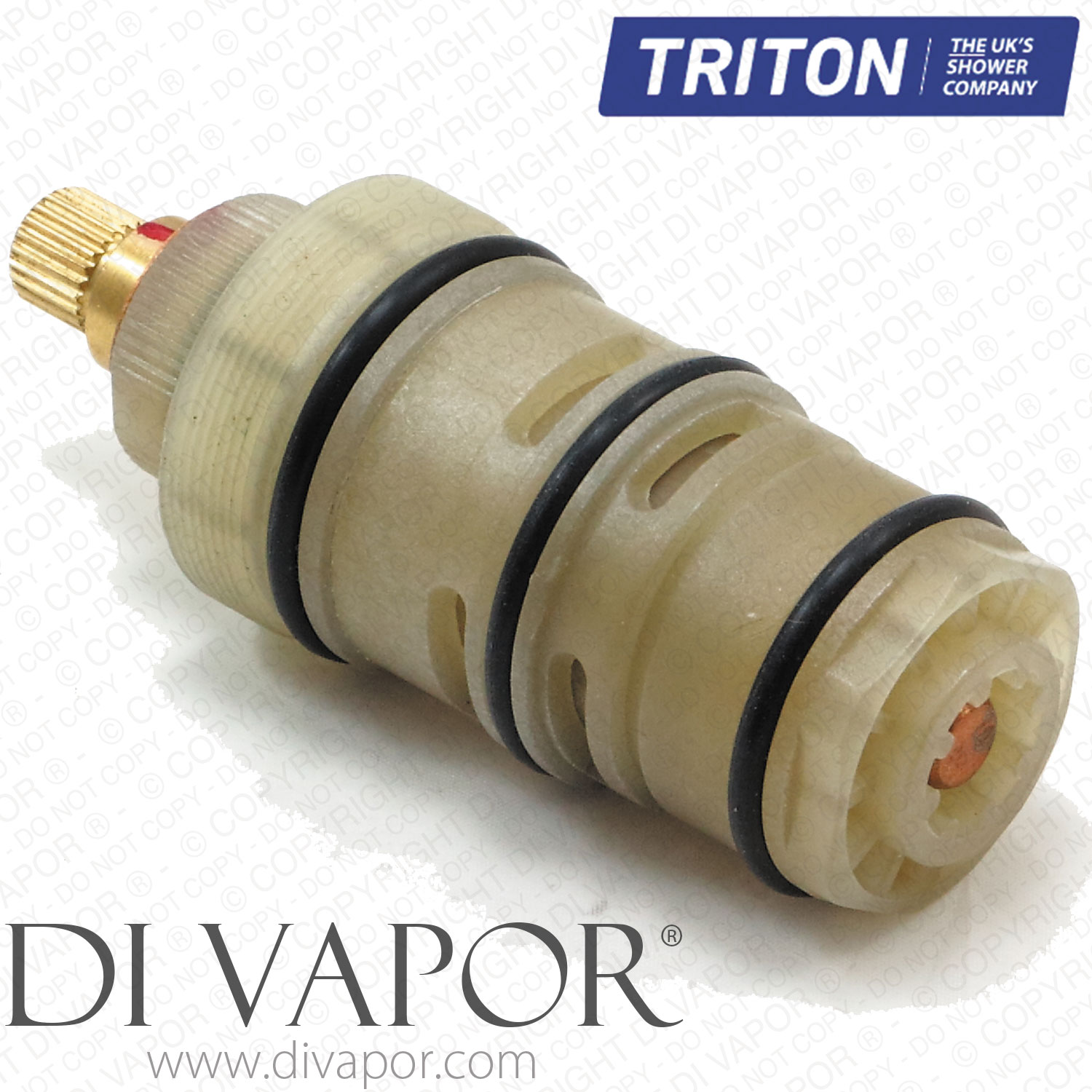

Triton 83314500 Thermostatic Cartridge used in Farah, Felice and Sesca Shower Valves, including Triton BQFELTHSP. You will receive the newest version of this cartridge which includes the gauze filters.

Frequently Asked Questions: Triton 83314500

Contact us should you have any questions about the Triton thermostatic cartridge 83314500 replacement – or need help in spare part identification. Di Vapor’s friendly spares experts will gladly attend to your queries asap.

Question: Been using the Felice shower for many years. But since last year we have changed the Triton 83314500 cartridge 4 times already. Do you have any idea why?
Answer: Without seeing the shower valve itself, we can only hazard a guess or two.

– High water pressure: Water pressure that is too high can negatively affect the 83314500 shower cartridge. The recommended running water pressure for the Triton Felice is 0.5 bar minimum and 5 bar maximum. The recommended mains static water pressure is 10 bar maximum.

– Water temperature is too hot: The Felice can accommodate hot water temperature of 35℃ (95℉) to 45℃ (113℉). Temperature higher than this can damage the Triton 83314500 cartridge and cause calcification faster. Check the water temperature. 38℃ (100.4℉) is the factory setting of this shower valve.

Question: Do you have a guide for cartridge replacement?
Answer: The Triton Farah, Felice and Sesca have a similar process for 83314500 cartridge installation. As a precautionary measure, shut off the shower’s water supply and pressure before starting.

– Remove the screw cover from under the temperature control handle. Loosen the screw and remove the handle together with the large washer.

– Remove the temperature stop. Take note that the stop is positioned at 4:00 and 8:00. This should be in the same position in reassembly.

– With a spanner turn the old cartridge anti-clockwise to remove it from the valve.

– Grease the replacement Triton 83314500 cartridge O-rings with the proper heat resistant silicone grease and insert it in the valve bottom first, spindle down.

*Please jump to the last section below to see which silicone grease we offer.

– Screw in the 83314500 cartridge in place using the spanner and reassemble the temperature stop (make sure the stop is at 4:00 and 8:00), large washer, temperature handle, screw and pop in the screw cover.


Di Vapor provides other Triton cartridges for shower repair.

We also have supplies for:
+ bathroom tap repair;
+ kitchen tap repair;
+ water heaters.
