SUMMARY

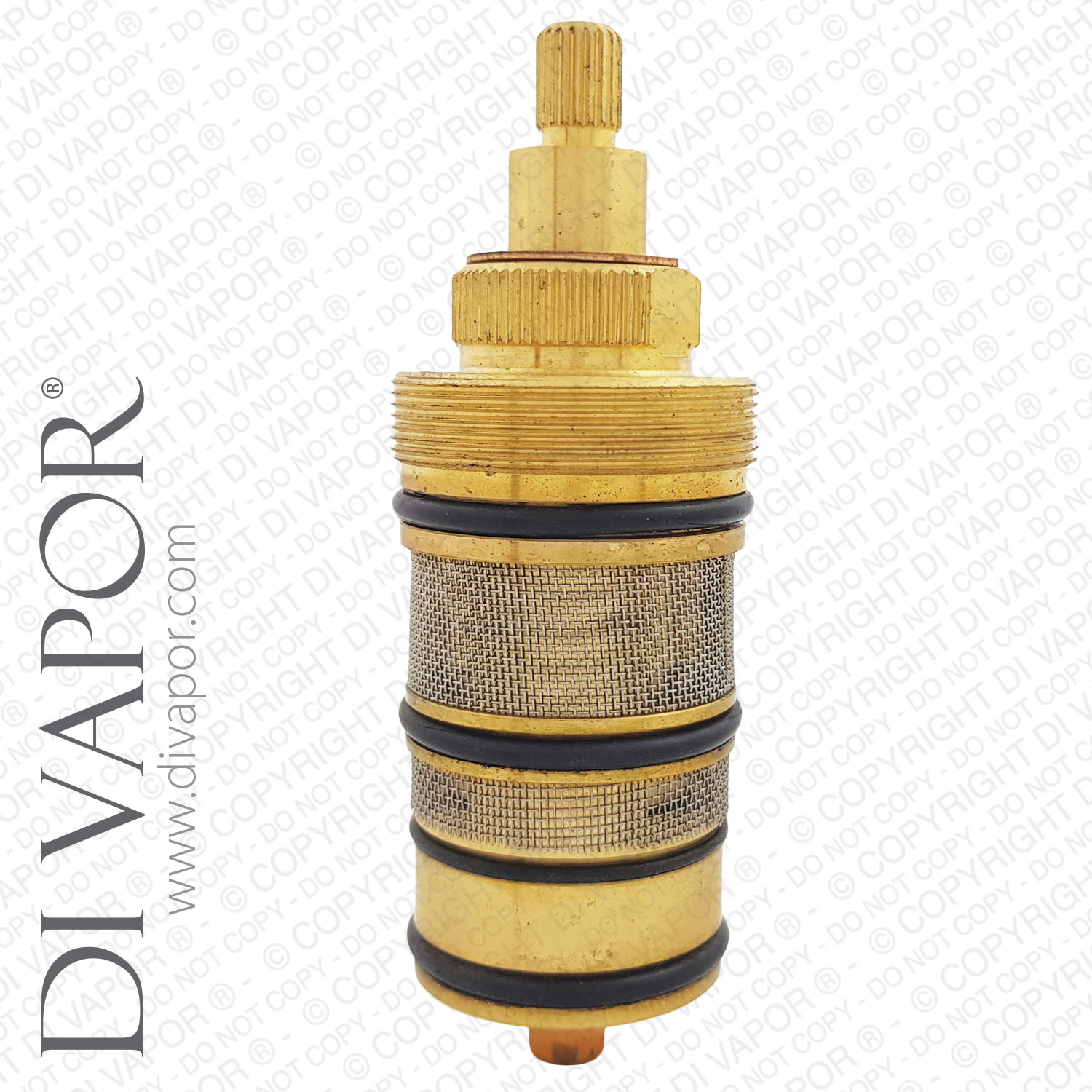

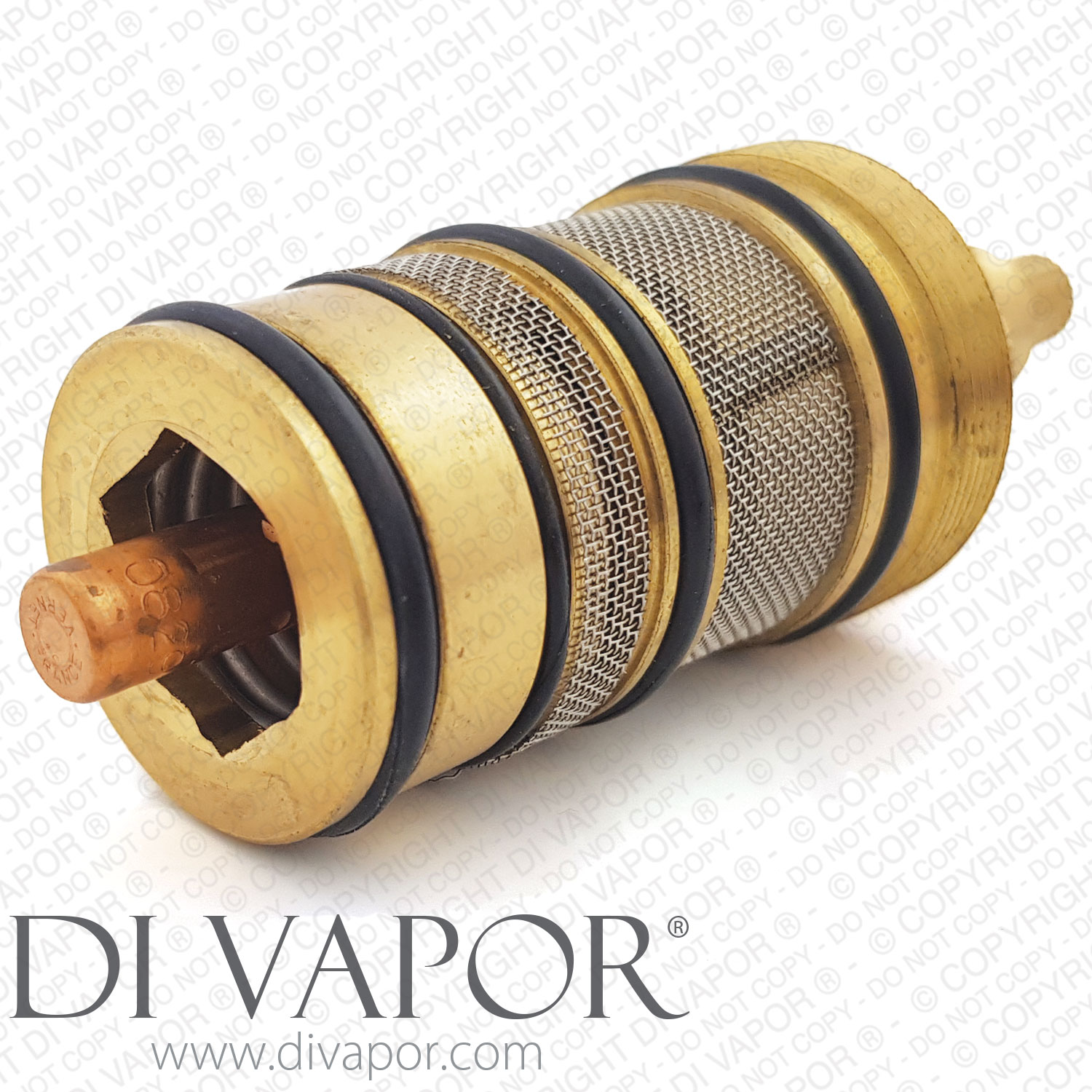

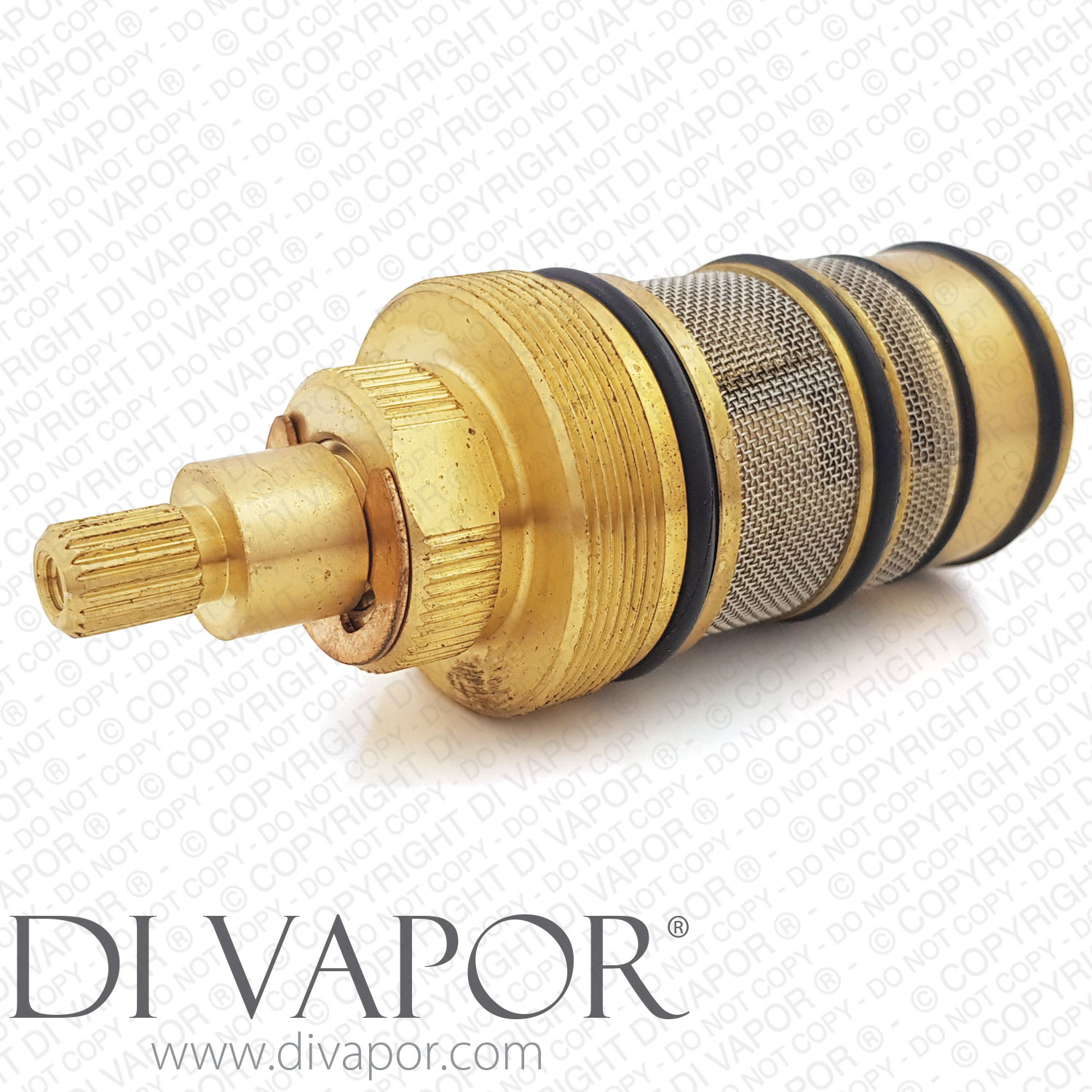

Triton 83315660 Thermostatic Cartridge used in Triton Kensey, Eden lever, Eden Eco and Verne V2 shower valves. This does not include the spline extension. You will receive what you see in the photos.

Technical Information

Number of teeth on handle spindle: 20 Teeth

Diameter of handle spindle: 7.8mm

Total Length (excluding wax element protruding from the bottom): 8.6cm (86mm)

Width of screw in thread: 33.5mm

Number of O Rings: 4

Material: Brass

Type: Screw Fit

Frequently Asked Questions: Triton 83315660

Should you have more questions about the Triton 83315660, or need any form of assistance in identifying shower valve parts, please leave us a message via our Find a Part free service. We are more than happy to serve you.

Question: How do I remove the shower valve handle to fit the Triton replacement shower cartridge?
Answer: This will depend on the shower model you have.

– For the Triton Eden Eco and Triton Eden Lever:
The screw is hidden beneath a screw cap which can be found under the flow control handle. Remove the screw cap, the screw, and the subsequent parts to get to the Triton 83315660 thermostatic cartridge.

– For the Triton Verne:
The screw is found on the side of the flow control handle. Remove the screw and the parts following it to open the valve and remove the 83315660 Triton thermostatic cartridge.

Question: What are the problems caused by a faulty shower temperature cartridge?
Answer: Some of the frequent problems that indicate a broken Triton 83315660 thermostatic cartridge include:

– Dripping shower head or leaks around the temperature control handle.
– Problems with adjusting, or failure to adjust the water temperature.
– Stiff to operate temperature control handle.

Please check out our Thermostatic Cartridge Guide for more information.

Question: Why is the water temperature fluctuating while showering even if the temperature control knob is not turned?
Answer: This could mean a couple of things:

– An imbalance in water pressure from the hot and cold feeds. Hot and cold water must enter the valve in equal pressure. A pressure equalizing valve installed can help if this is an issue.

– Other household appliances are pulling hot or cold water away from the shower. An example of this would be hot water being pulled by a dishwasher which can temporarily cool down the shower water temperature. Flushing the toilet from another restroom within the home can pull cold water. This can heat shower water temperature momentarily.

– A thermostatic cartridge houses a wax thermo-element which is the temperature regulator of the shower valve. If this shower valve part is broken, a replacement Triton thermostatic cartridge 83315660 will be needed.

Question: Can I use any lubricant on the Triton 83315660?
Answer: No, only silicone-based grease made specifically for plumbing application must be used. Using any lubricant besides that can deteriorate or harden the Triton cartridge O-rings faster than usual. Please jump to the last section of this page to see the silicone grease we offer.


Need more shower repair supplies? We carry many spare parts:
– Shower cartridges
– Shower door handles
– Shower door rollers
– Shower door seals
