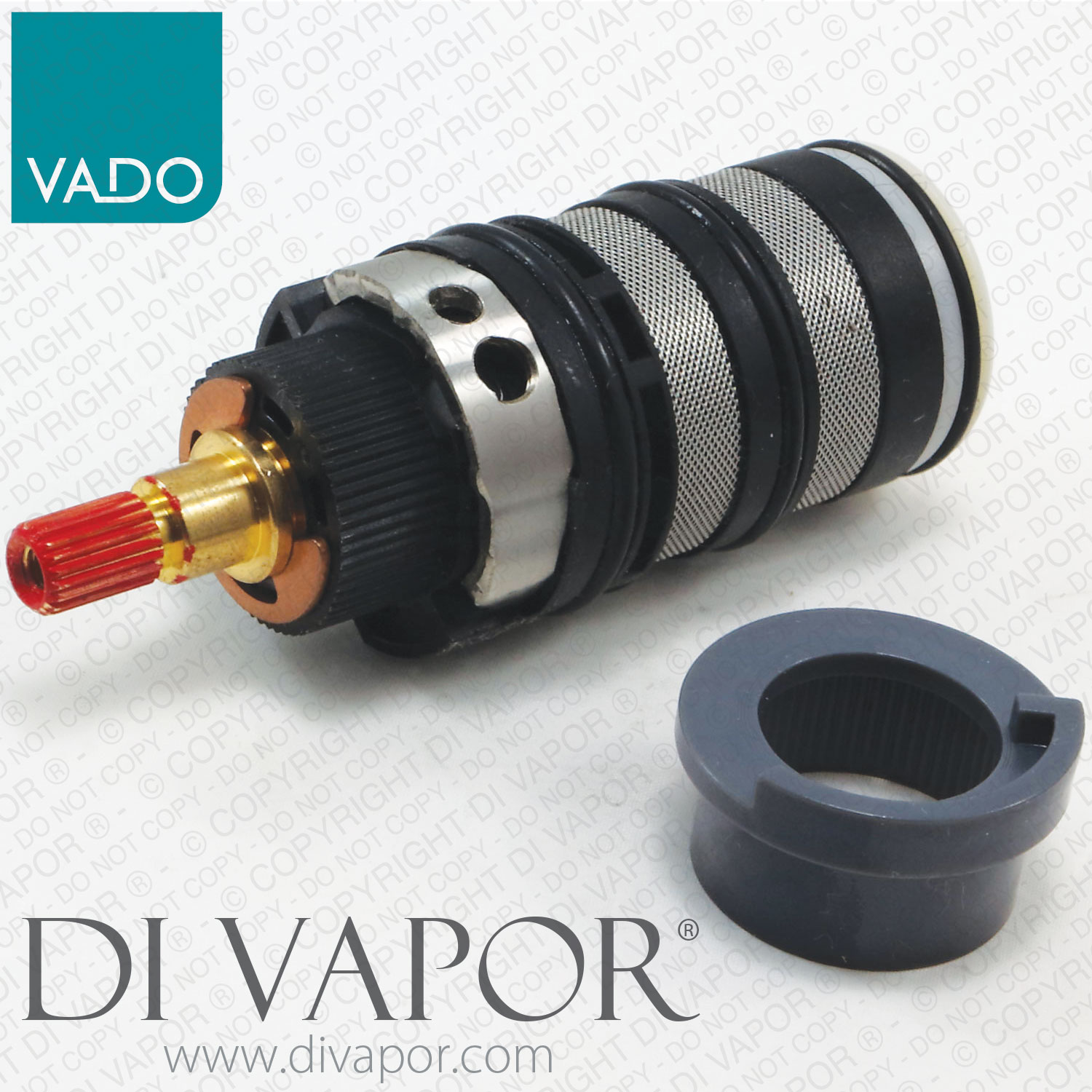

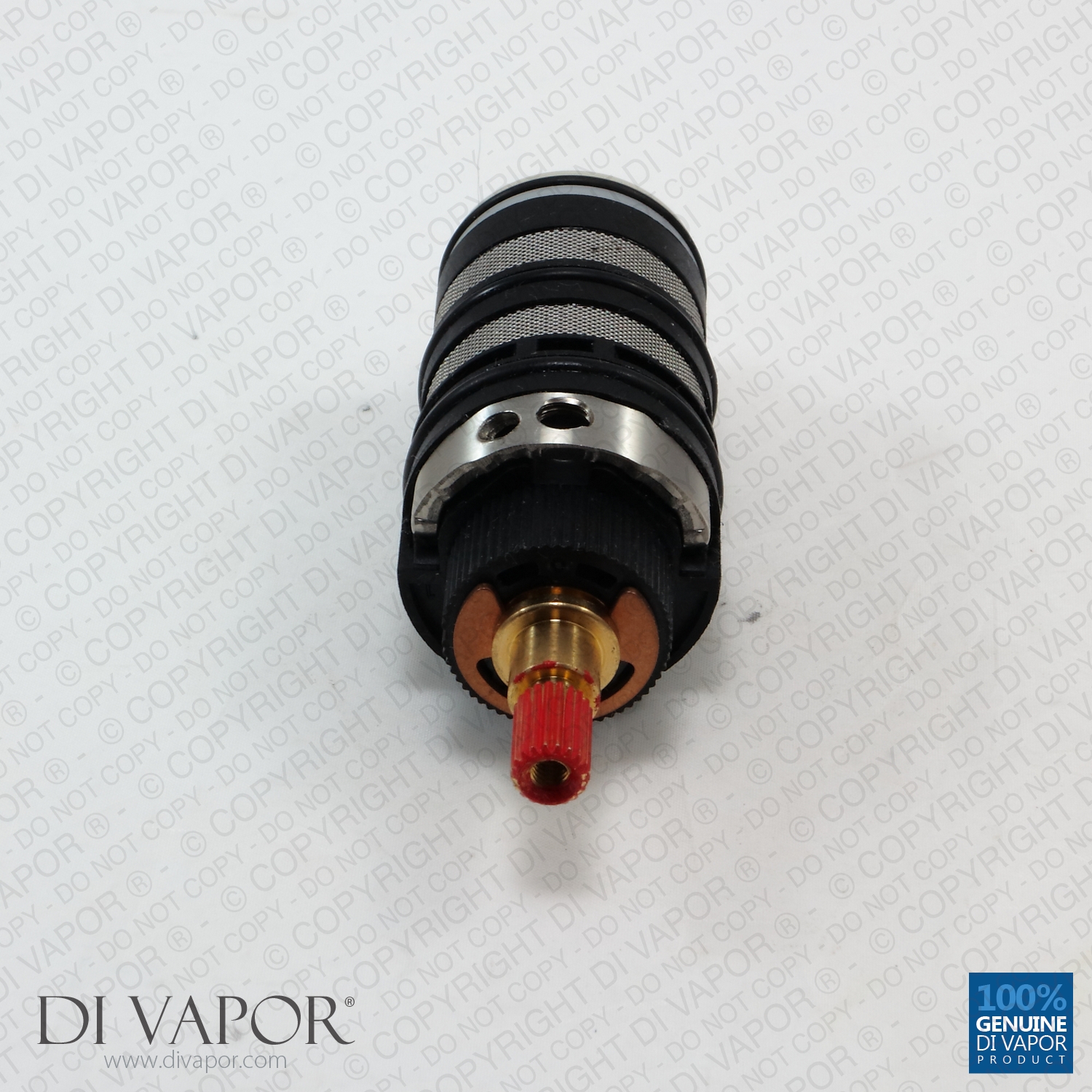

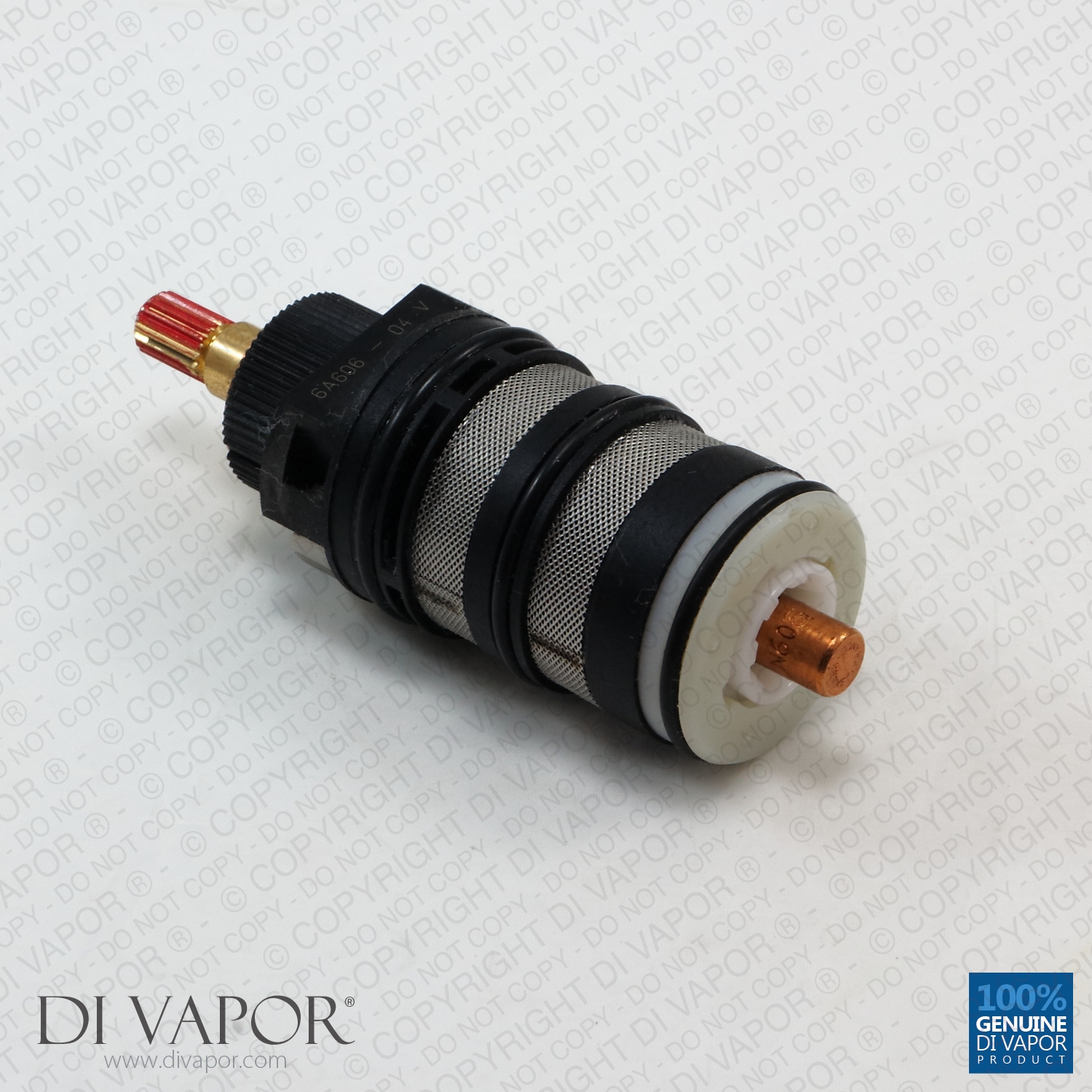

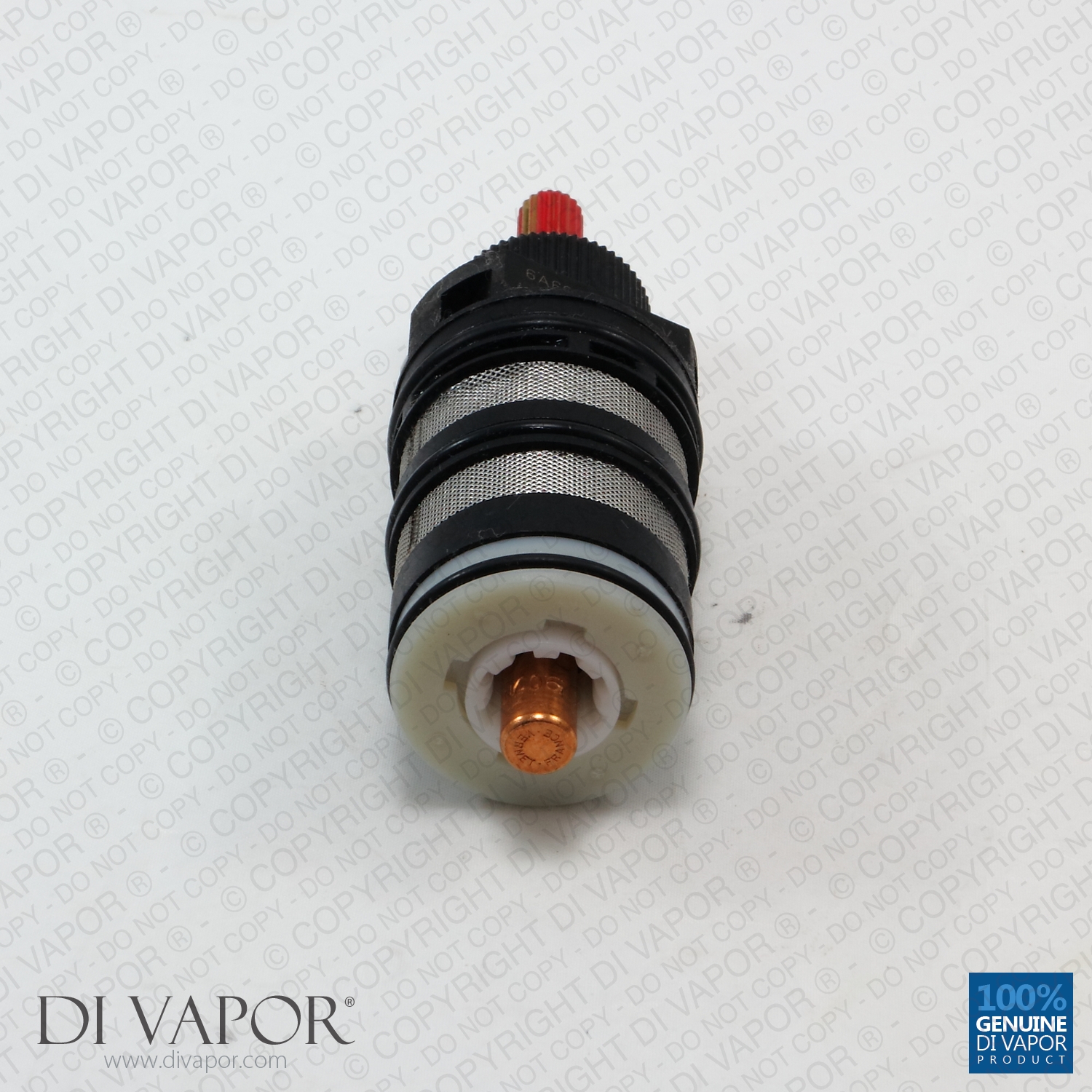

Vado CEL-RETROFIT/B Retro-Fit Thermostatic Cartridge

SUMMARY

This is a Vado CEL-RETROFIT/B thermostatic cartridge. If your Vado shower is experiencing fluctuations in water temperature or poor water flow, there could be a problem with your thermostatic cartridge, especially in hard water areas with a lot of lime-scale.

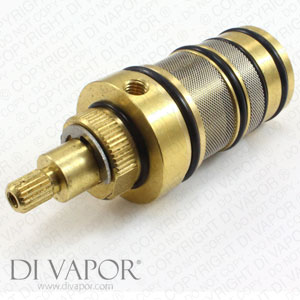

The original brass screw in version of this cartridge can be found here: VADO Celcius CEL-001B/B-WAX thermostatic cartridge.

Manufacturer: Vado
Spare Part: CEL-RETROFIT/B Thermostatic Cartridge
Installation: Push-Fit
Material: Polymer

Vado CEL-RETROFIT/B Cartridge Compatibility

The CEL-RETROFIT/B Vado thermostatic cartridge assembly is made from polymer. Limescale sticks less to the sides of a polymer cartridge compared to one made from brass material. It typically fits shower models in this list – B type shower valves – but it is not compatible with the Notion valve, C type valves, or exposed shower bar valves.

Even though this cartridge fits these models, each valve sometimes has different thermostatic cartridges for different production dates, therefore, please remove the cartridge from the valve to ensure this is the correct match. You can send us a message and we will personally assist you in determining the part that’s needed.

This CEL-RETROFIT/B Vado cartridge fits a lot of different Vado valve models including (but not restricted to) the following:

- Vairone 148RET Shower Cartridge V54

- Vado Celsius Concealed Thermostatic Shower Valve Rectangular Backplate
- Vado Celsius Concealed Thermostatic Shower Valve Round Backplate

- Vado Concealed 2 Handle Thermostatic Shower Valve MIX-148B-3/4
- Vado Concealed 3 Handle Thermostatic Shower Valve MIX-128B-3/4

- Vado Elements Concealed 2 Way Thermostatic Shower Valve Round Backplate ELE-348B/2
- Vado Elements Concealed 3 Way Thermostatic Shower Valve Round Backplate ELE-348B/3
- Vado Elements Concealed Thermostatic Shower Valve Round Backplate ELE-348B

- Vado Life Concealed 2 Way Thermostatic Shower Valve Rectangular Backplate LIF-148B/2
- Vado Life Concealed 3 Way Thermostatic Shower Valve LIF-148B/3
- Vado Life Concealed Thermostatic Shower Valve Backplate LIF-148B-3/4

- Vado Mix Concealed 2 Way Thermostatic Shower Valve Rectangular Backplate MIX-148B/2
- Vado Mix Concealed 3 Way Thermostatic Shower Valve Rectangular Backplate MIX-148B/3
- Vado Mix Concealed Thermostatic Shower Valve Rectangular Backplate MIX-148B-3/4

- Vado Notion Concealed 2 Way Thermostatic Shower Valve Rectangular Backplate NOT-148B/2
- Vado Notion Concealed 3 Way Thermostatic Shower Valve Rectangular Backplate NOT-148B/3
- Vado Notion Concealed Thermostatic Shower Valve Rectangular Backplate NOT-148B-3/4

- Vado Nuance Concealed 2 Outlet 2 Handle Thermostatic Shower Valve with Integrated Diverter Wall Mounted NUA-148B/2
- Vado Nuance Wall Mounted Concealed Thermostatic Shower Valve NUA-148B-3/4

- Vado Origins Concealed 2 Way Thermostatic Shower Valve Round Backplate ORI-148B/2
- Vado Origins Concealed Thermostatic Shower Valve Round Backplate ORI-148B-3/4

- Vado Soho Concealed 2 Way Thermostatic Shower Valve Round Backplate SOH-148B/2
- Vado Soho Concealed 3 Way Thermostatic Shower Valve Oval Backplate SOH-148B/3
- Vado Soho Concealed Thermostatic Shower Valve with Round Backplate SOH-148B-3/4

- Vado Tonic Concealed 2 Way Thermostatic Shower Valve Round Backplate TON-348B/2
- Vado Tonic Concealed 3 Way Thermostatic Shower Valve Round Backplate TON-348B/3
- Vado Tonic Concealed thermostatic Shower Valve Round Backplate TON-348B-3/4


CEL-RETROFIT/B is TMV2 approved and good for low pressure water systems. Please have a look at our thermostatic cartridge guide.

The genuine Vado CEL-RETROFIT/B Thermostatic Cartridge Assembly will be dispatched on the same day when it is ordered on a weekday before 3:00 PM.

Installing a New Polymer Vado CEL-RETROFIT/B Thermostatic Cartridge

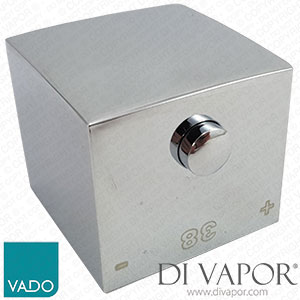

1. Remove the prong from the shower handle by turning it clockwise. Then use a 2.5mm hex key from where the prong sat to remove the shower handle. Repeat the process with the other handle.

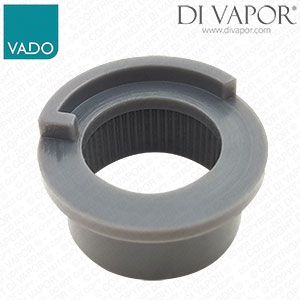

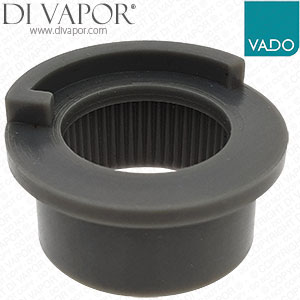

2. Dislodge the temperature stop ring.
3. Take off the faceplate’s retaining rings by turning it counterclockwise. Extract the valve’s faceplate.
4. Isolate hot and cold water supply by using a screwdriver and turning it clockwise, till it tightens a little. This should cut off the water supply.

Note: Please do not tighten the isolation screws too much.

Another Note: Before testing if water isolation has been achieved, please ascertain that you are not under the shower head or any part of your body under the tap. This will avoid accidental scalding when water isolation fails.

To test if this step was done successfully, replace the handle on the temperature control valve. Revolve the handle counterclockwise until it comes to a full stop. Then turn it to the opposite direction until it comes to a full stop. If water is not flowing from the water outlet, isolation is successful.

5. With a hex key, remove the grub screw attaching the Vado CEL-RETROFIT/B cartridge to the valve.
6. Use pliers to gently pull out the faulty CEL-RETROFIT/B cartridge.
7. Use a cloth to wipe or flush it with water to clean the valve housing.
8. Apply a silicone lubricant on the new Vado CEL-RETROFIT/B thermostatic cartridge. And install it in the valve. Check if the grub screw hole of the cartridge aligns with the hole on the valve itself.

9. Fasten and tighten the grub screw using the hex key.
10. Use a screwdriver to turn on the water supply with a counterclockwise turn. The isolation screws should just be slightly raised on the surface of the nooks.
11. Refit the shrouds, faceplate, and retaining rings.

12. Calibrate the CEL-RETROFIT/B Vado cartridge to the desired water temperature.
13. If all is okay, reassemble the handle.
