VADO CEL-001B/B-WAX Thermostatic Cartridge for Celsius | Nuance | Notion | Elements Shower Valves

SUMMARY

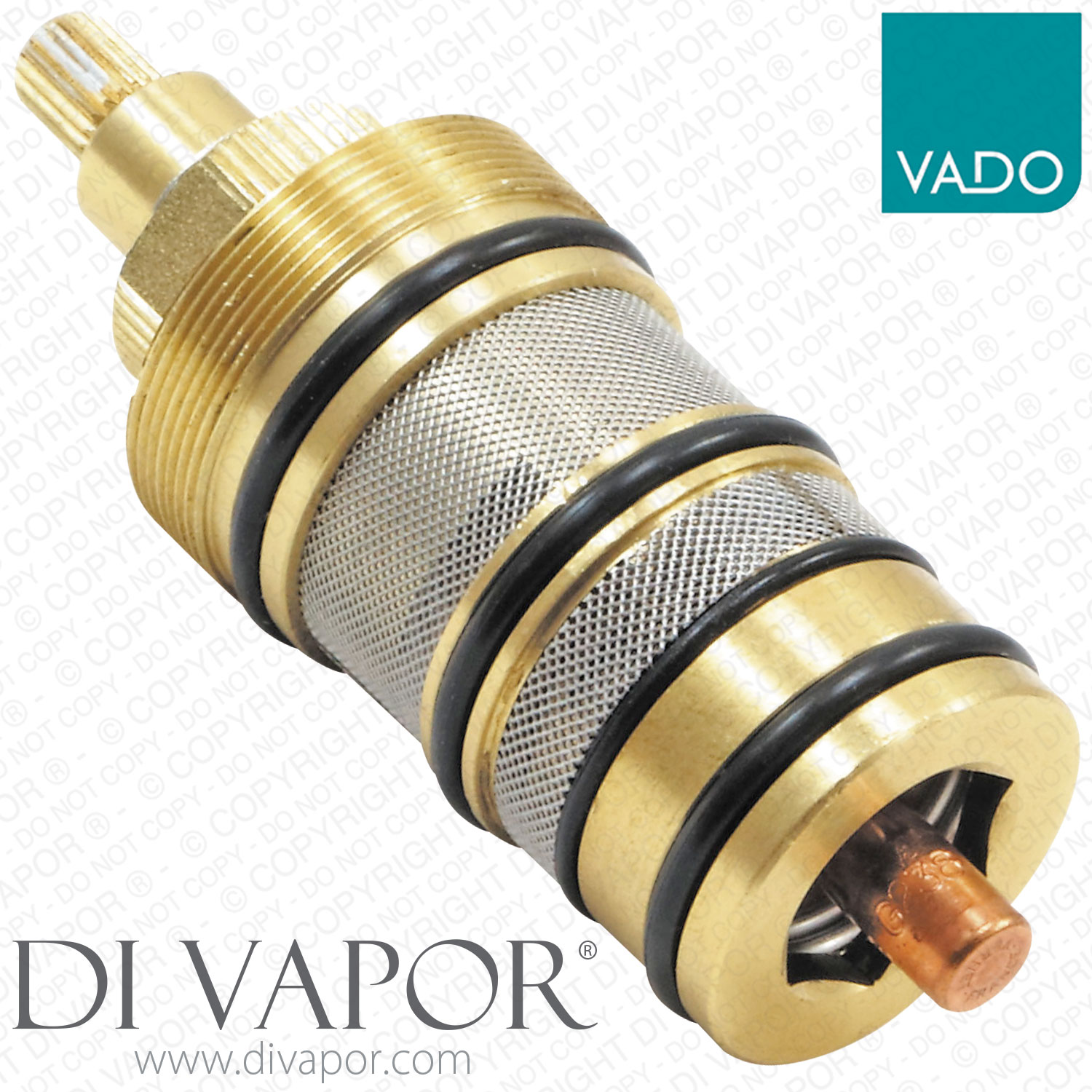

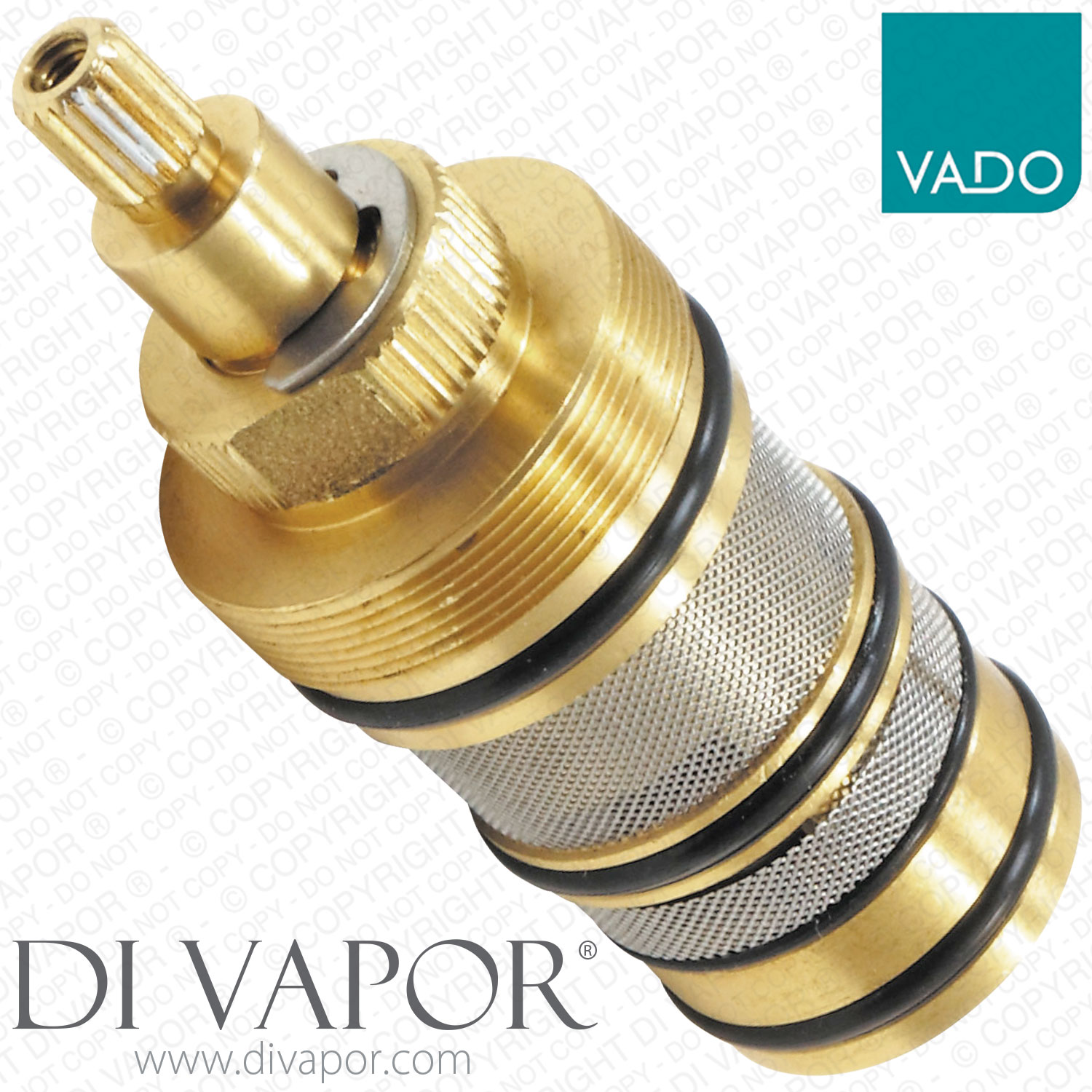

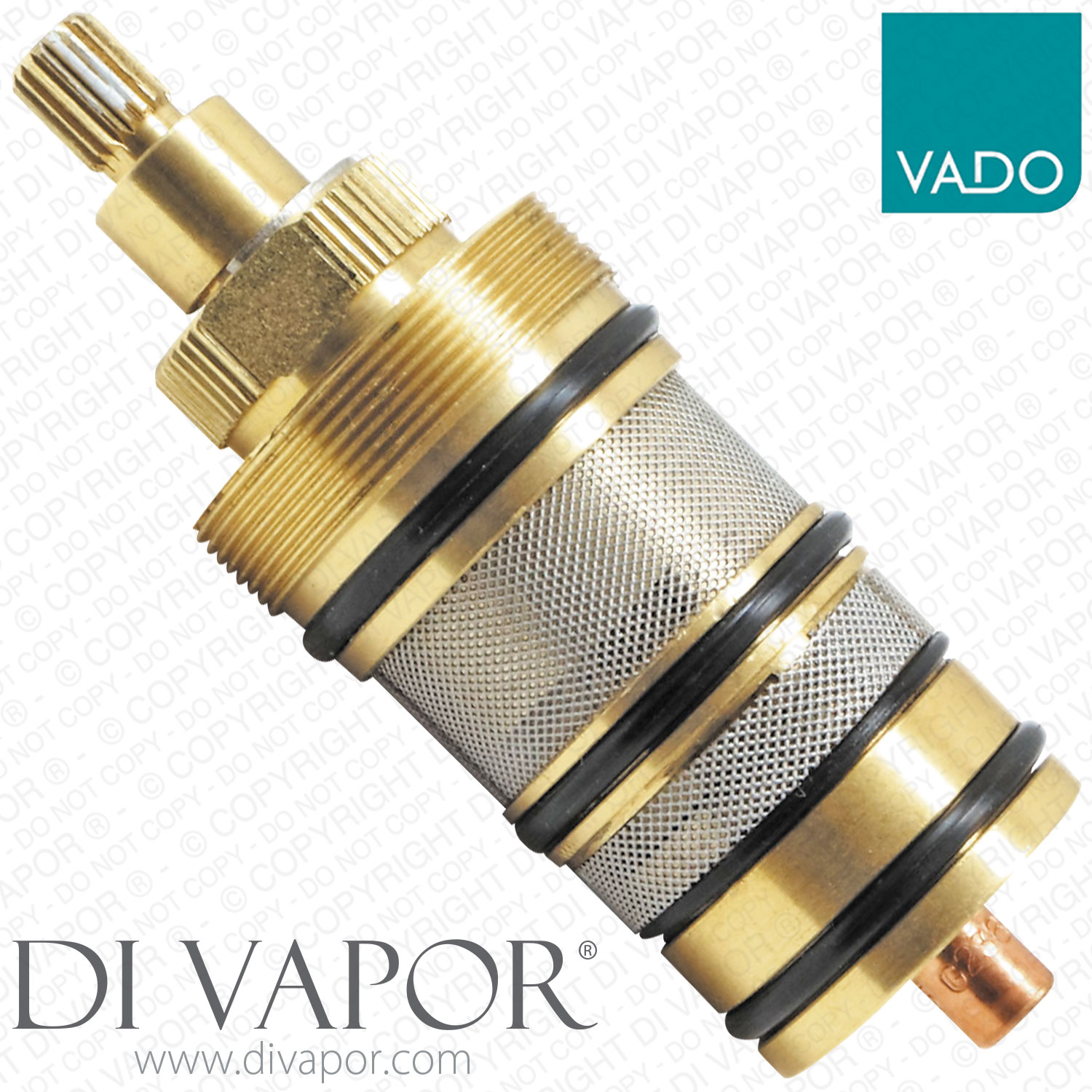

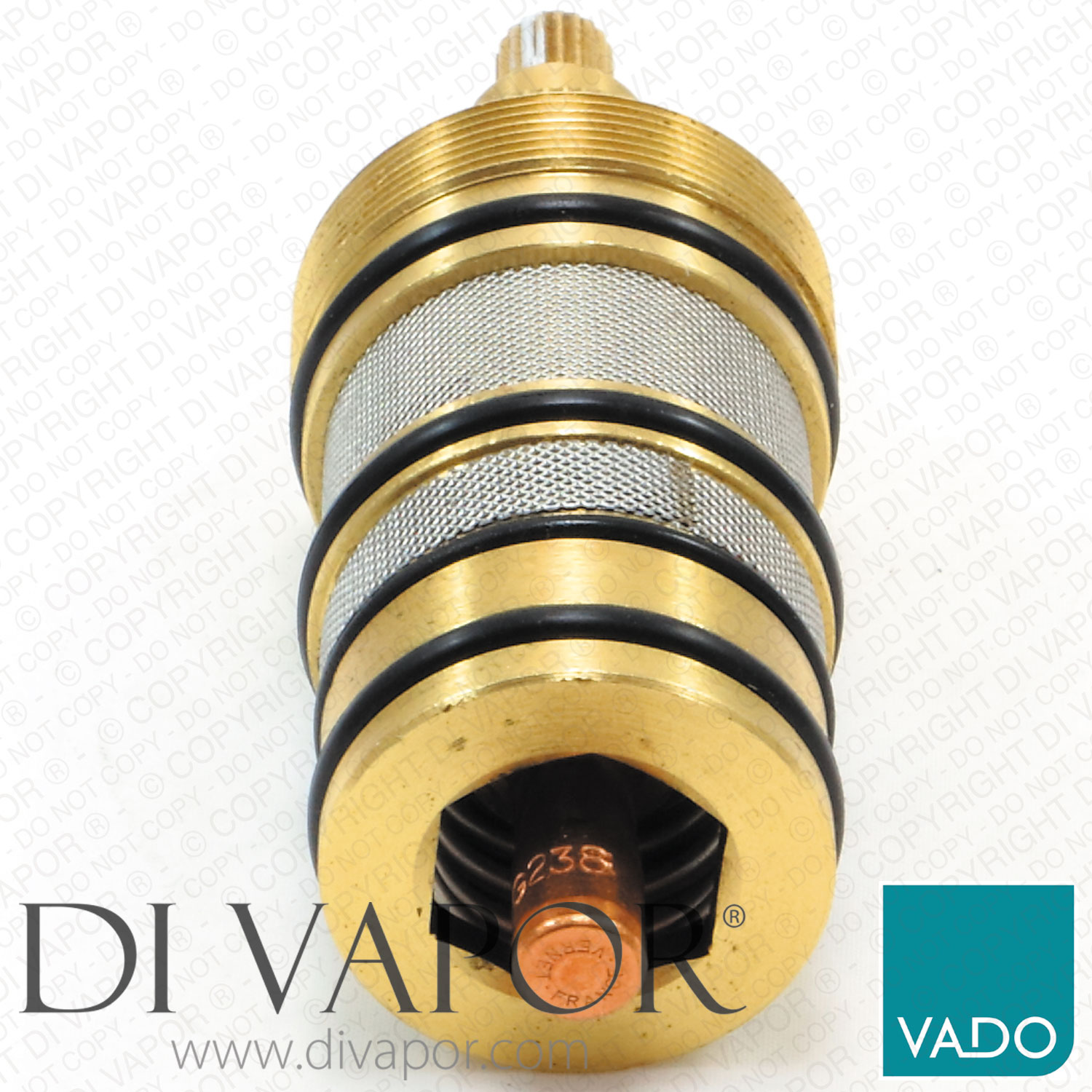

This is a replacement thermostatic cartridge for VADO CEL-001B/B-WAX. The cartridge is a screw in type installation.

You will receive the exact same cartridge that's in the photos. We are the only company who still has stock of this cartridge, and there are not many left.

This cartridge has now been discontinued by Vado, therefore stock is limited. If it is showing in stock we will have it in stock and will be available for next day delivery.

Manufacturer: Vado
Spare Part: Thermostatic Shower Cartridge - VADO CEL-001B/B-WAX

If in stock, this CEL-001B/B-WAX Thermostatic Cartridge made by Vado can be dispatched on the same working day when ordered before 3:00 PM, Monday to Friday.

This cartridge is not to be confused with the Vado CEL-001B-WAX thermostatic cartridge as they both have similar codes and look similar. The CEL-001B-WAX is fatter than the CEL-001B/B-WAX and also has a shorter spindle with a different number of teeth.

The new plastic polymer version of this cartridge can be found here: Vado CEL-RETROFIT/B Retro-Fit Thermostatic Cartridge.

This CEL-001B/B-WAX shower cartridge suits the following VADO models. The cartridge will work on more models than those in this list as it's not comprehensive:
- Celsius Concealed CEL-148B
- Celsius Concealed CEL-149-3/4
- Celsius Concealed CEL-128B
- Nuance 2-way concealed NUA-148B
- Notion Concealed Thermostatic Shower NOT-148B
- Origins Concealed Thermostatic 2 Way Shower Valve ORI-148B
- Elements concealed 3 handle thermostatic valve ELE-128B
- Life Concealed Thermostatic Shower Valve LIF-148B
- Soho Wall Mounted Concealed Thermostatic Shower Valve SOH-148B
- Mix concealed 2 handle thermostatic shower valve MIX-148B
- Notion Concealed Thermostatic Shower NOT-128B
- Mix concealed 2 handle thermostatic shower valve MIX-128B
- 3 handle concealed thermostatic shower valve TON-128B

Technical Information: Vado CEL-001B/B-WAX Thermostatic Cartridge

Number of teeth on handle sindle: 20 Teeth

Diameter of handle spindle: 7.8mm

Total Length (excluding wax element protruding from the bottom): 8.6cm (86mm)

Width of screw in thread: 33.5mm

Number of O Rings: 4

Material: Brass

Type: Screw Fit

If you need help with shower cartridge identification, please click on this link. Please pop us over a message if you'd like any help with identifying which shower cartridge you have / need - Contacts Us.

Generally, thermostatic cartridges fail due to wear and tear, and tend to deteriorate more quickly in hard water areas. Consider installing a water softener to enhance the life of the cartridge. We also have a hard water solution here.

The Vado CEL-001B/B-WAX thermostatic cartridge is the brass version and precursor of the CEL-RETROFIT/B. This Vado spare part is suitable for concealed valves manufactured by Celsius, Elements, Notion, and Nuance.

How to: Vado thermostatic cartridge CEL-001B/B-WAX Replacement
A valve hidden at the back of a bathroom wall is considered as a concealed shower valve. Its control handles and faceplate lay on the surface of the tiling. This type of valve is prepared with one to three handles. A handle – or handles – turns the shower the on/off, regulates the temperature, and diverts water flow from the shower head to tap.

A thermostatic cartridge can function for some years. But, inconsistent cold and hot water supply pressure or the presence of hard water debris can be some of the reasons a cartridge may fail prematurely.

Here are some general steps on how to change the Vado CEL-001B/B-WAX thermostatic shower cartridge on a concealed shower valve with two handles.
1: Detach the handle prong. Turn it clockwise by hand to unscrew. With the prong out, a 2.5mm Allen key can be used to loosen the screw that secures the handle cap. (The same process goes for the second handle which covers the flow cartridge.) Remove the temperature stop ring.
2: Turn the securing rings counterclockwise to unfasten the faceplate.
3: To shut off water supplies, use a screwdriver and turn the isolation screws clockwise until it tightens a fair amount. The screws can be found on both sides of the valve.

Note: Please be sure you are not under the shower head or the tap before testing if water has been successfully isolated to prevent accidental burns or shock.

To check if isolation is achieved, stack the handle back on the temperature control valve. Turn it counterclockwise until it stops. Then turn it clockwise until it stops again. If water did not flow from the water outlet, isolation is accomplished.

4: Screw out the thermostatic cartridge to remove.
5: With a cloth or a small brush, clean the inside of the valve housing. Run it with water if necessary.
6: Grease the o-rings of the new Vado CEL-001B/B-WAX thermostatic cartridge with silicone lubricant before installing it in the valve.

7: Turn the isolation screws counterclockwise to open the water supplies.
8: Observe if there are no leaks around the cartridge.
9: Reassemble the valve shrouds, securing rings and faceplate. Calibrate the shower cartridge.

10: Replace the flow cartridge handle and fasten it in place.
11: Restore the temperature stop ring with the stop point on the uppermost position. When doing this step, make sure the cartridge spline is not moved.
12: Replace the thermostat handle, also making sure the stop button is on top.

13: Reattach the handle. Turn the shower on to double-check installation and calibration.
