When activated, hydromassage jets produce a continuous (not pulsating) spray of water to create a therapeutic massage effect for the muscles and skin. In some models the jets operate in unison while in other models the jets can be sequenced. A thermostatic valve is a valve that mixes or blends hot and cold water together to a specific temperature, thus creating a constant water temperature that is safe and helps to avoid scalding. Aromatherapy is the use of plant extracts, also known as essential oils for the purpose of aiding in a persons mood, health or cognitive function. Oils can be added through the steam outlet and will be dispersed as the cabin fills with steam. A Residual Current Device (RCD) is an electrical device connected onto the power cable before it enters the control box or steam generator. This will cut-off power to the unit if an imbalance in the live and neutral currents is detected to protect the user. An enclosed shower cubicle that includes a steam generator that can generate heated water vapour to fill the cubicle. This is likened to a steam room but designed for a home bathroom environment.
|
 |
Product Code: S-DV6017A
Dimensions: 900mm × 900mm × 2150mm
Number of Jets: 6 |

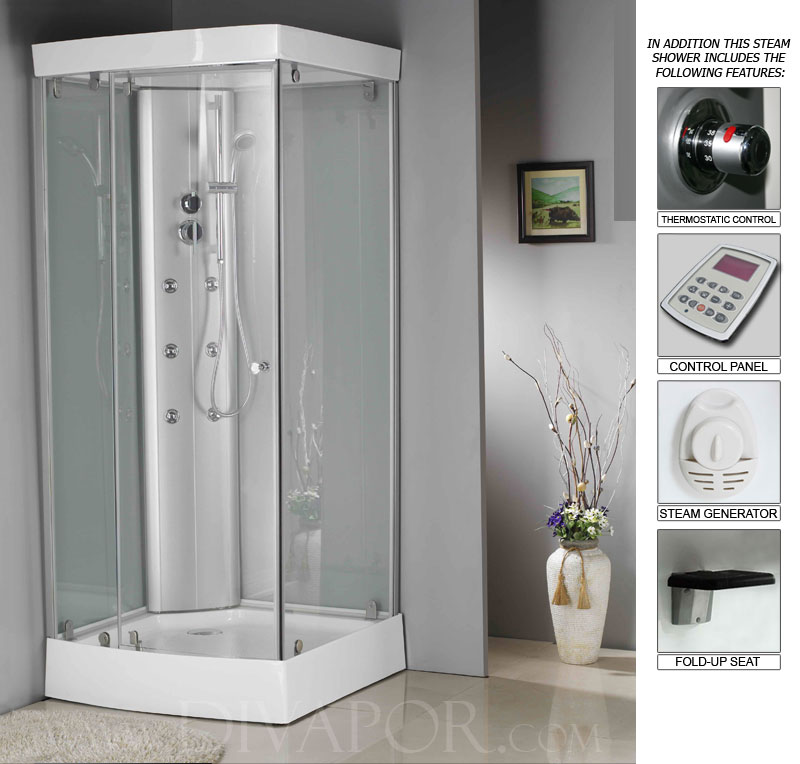

| The popular Veneto 6017 shower enclosure is now available as a steam shower cabin. This model takes the attractive glass and aluminium styling of the Veneto while adding a steam generator, control system, circulation fan, seat and radio. |
|
|
|
|
| |
| The Venetian shower cabin takes the existing features of the Veneto SH-DV6017 shower enclosure, while adding a host of extra features as listed below: |
| Product FeaturesInformation about the Venetian steam cabin |
 | Provision for Aromatherapy
Be invigorated, relaxed or refreshed with a blend of aromatherapy oils. Simply place a few drops of your chosen oil into the steam outlet, twist and wait as the fragrance slowly fills the cabin as the steam is generated. |
|

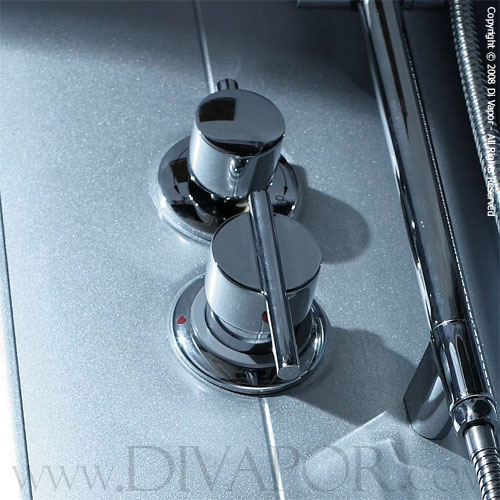

 | Thermostatic Temperature Valve
A thermostatic valve minimises dangerous temperature fluctuations and allows you to select a specific water temperature, also providing a safety notch to help restrict young children from increasing the temperature beyond 38C. |
|

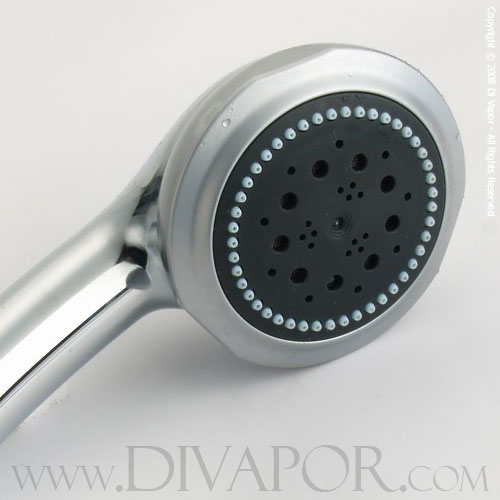

 | Handheld shower on slide rail
Positioned on the aluminium profile a slide rail provides flexibility to change the height of the shower head. In addition this shower head can be removed for handheld showering and offers 3 different settings: spray, jet and champagne. |
|

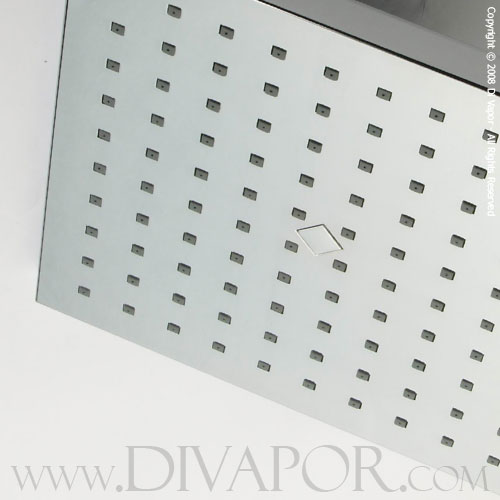

 | 8 inch overhead rainfall shower
In addition to the standard handheld shower an overhead shower provides an invigorating showering experience that can be likened to standing out in a rainfall. |
|

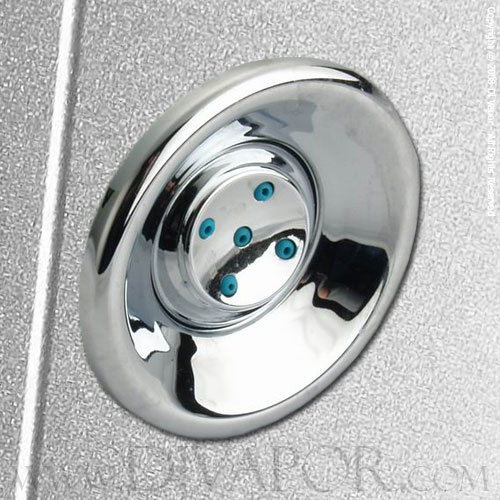

 | 6 Body Massage Jets
Spaced along the aluminium column, 6 hydromassage body jets provide lower, middle and upper body massage. The jets spray water against the body to gently stimulate the muscles. |
|

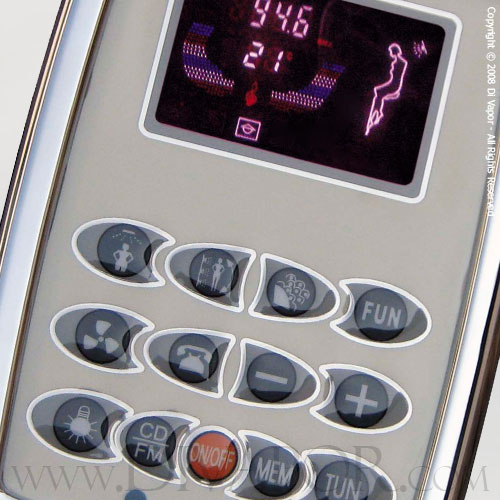

 | Digital control panel
The digital control panel provides a simple control system to select the steam session temperature or length, operate the radio, volume and circulation fan. |
|
 | Radio and speaker
This model features a built-in FM radio so you can tune in and listen to your favourite stations while you relax in the steam or shower. The volume level of the built-in speaker can also be changed using the control panel. |
|
 | Steam generator with time and temperature settings
Using the control panel you can set the temperature for the steam. Alternatively, you can use the control panel to set the steam session duration after which time the steam will automatically shut-off. |
|
 | Fold-up seat
Located beneath the water massage jets is a durable, water-proof foam padded seat. This seat can be used to relax while having your steam session and can also be lifted up to give extra space when showering. |
|
 | Circulation fan
This fan can be used to help maintain an even temperature throughout the cabin as steam will naturally rise to the top of the enclosure. |
|
 | RCD (Residual Current Device) Safety
When an imbalance is detected in the phase of the current then this electrical device (RCD) will automatically cut-off power to the unit to help protect both the user and product. |
|
|
|
| |
| Extra Material Specifications: |
| » 1 inch shower tray lip |
| » Fibreglass reinforced acrylic tray with flexible shower waste fittings |
| » Durable stainless steel door clips |
| » Stainless Steel support for the shower base |
| » 1-1.5mm Strengthened Aluminium Columns. |
| » 6mm Tempered Fixed Safety Glass and 6mm Safety Glass Doors. |
| » Magnetic seal system to create a close fitting door |
|
| |

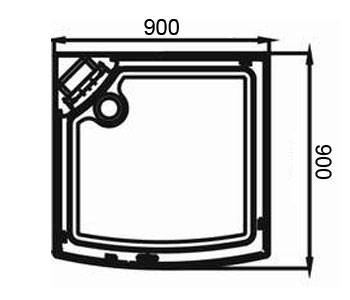

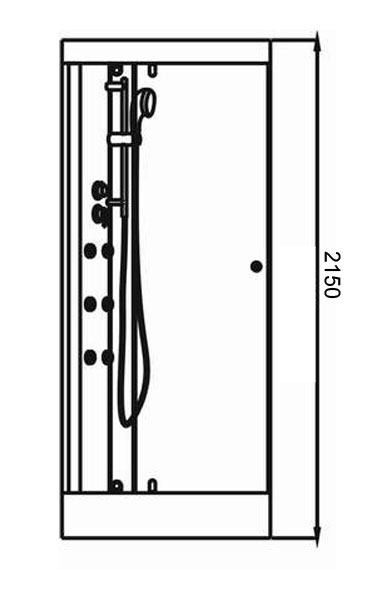

| Technical DiagramsDimensions and Layout |
 |  |
This shower comes complete with a Di Vapor easyplumbTM tray. This allows access underneath in order to connect the drainage easily. The tray comes with adjustable feet to increase or decrease height. |
 |
Electrical:- 16AMP electrical supply required.
- RCD fitted on power flex.
- Fused spur/mains RCD optional.
|
Plumbing:- Hot & cold water supply required.
- Balanced water pressure of 2-3 BAR required.
- Gravity fed system may require a pump to meet pressure requirements.
|
|
| |
