SUMMARY

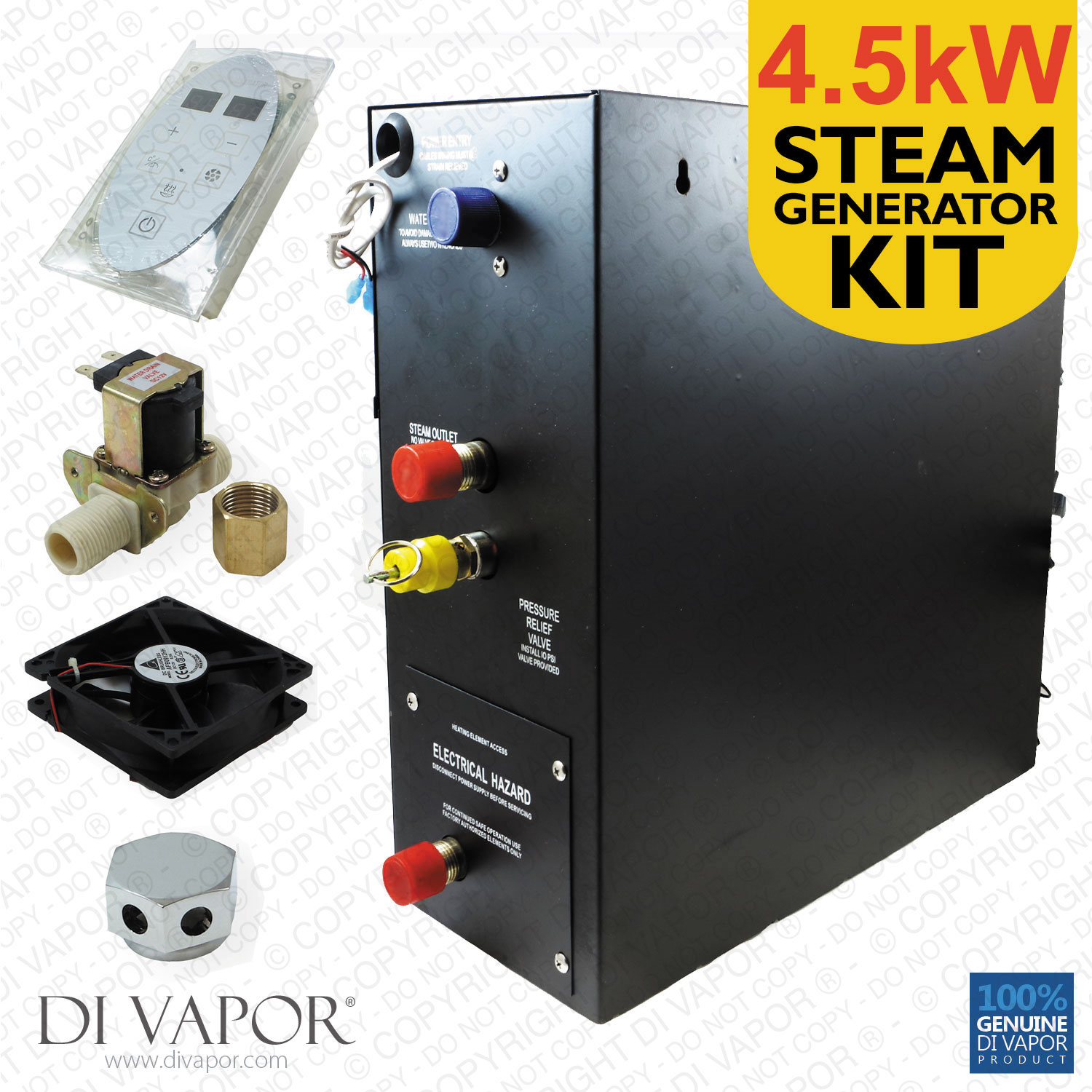

This steam room kit includes:

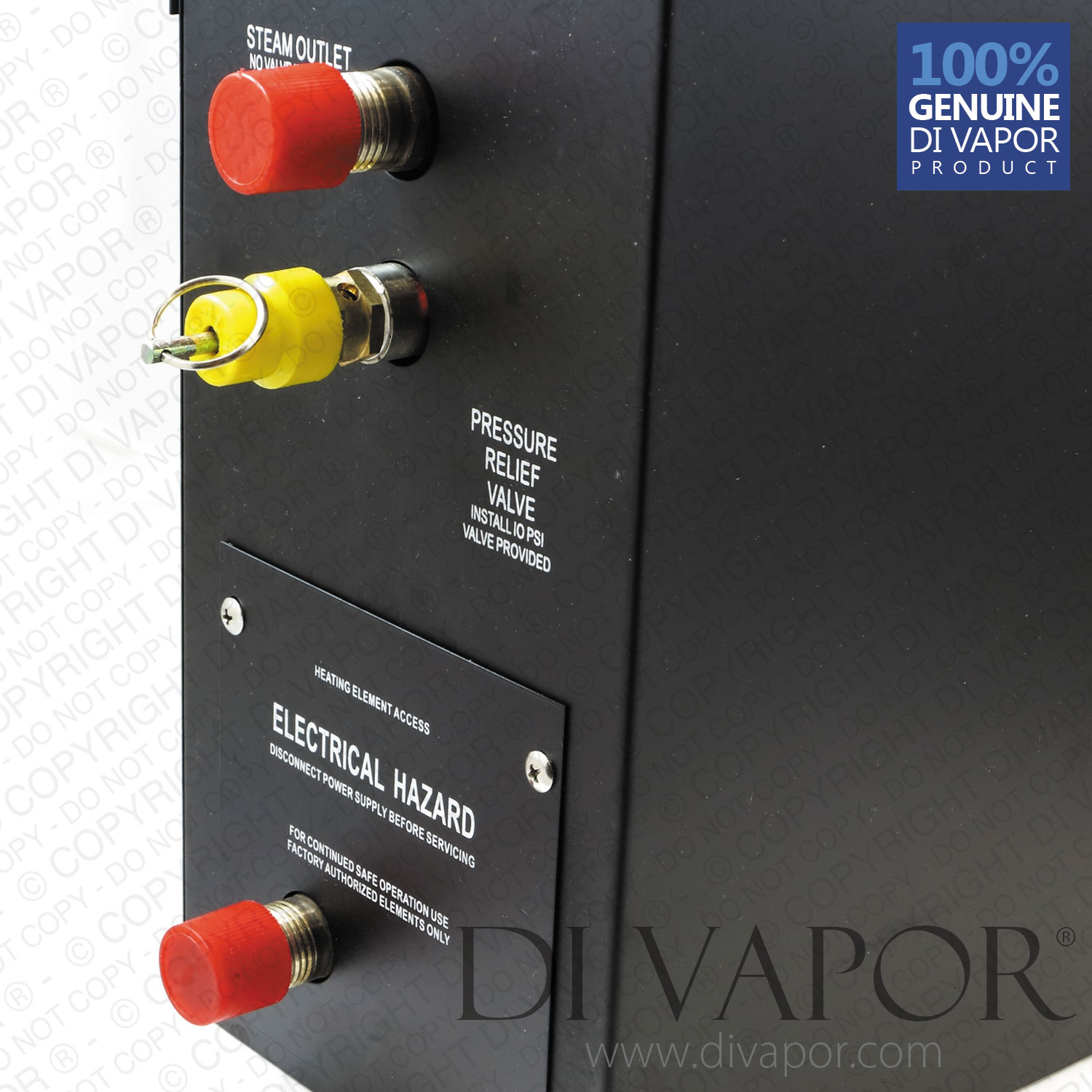

- 4.5KW steam generator

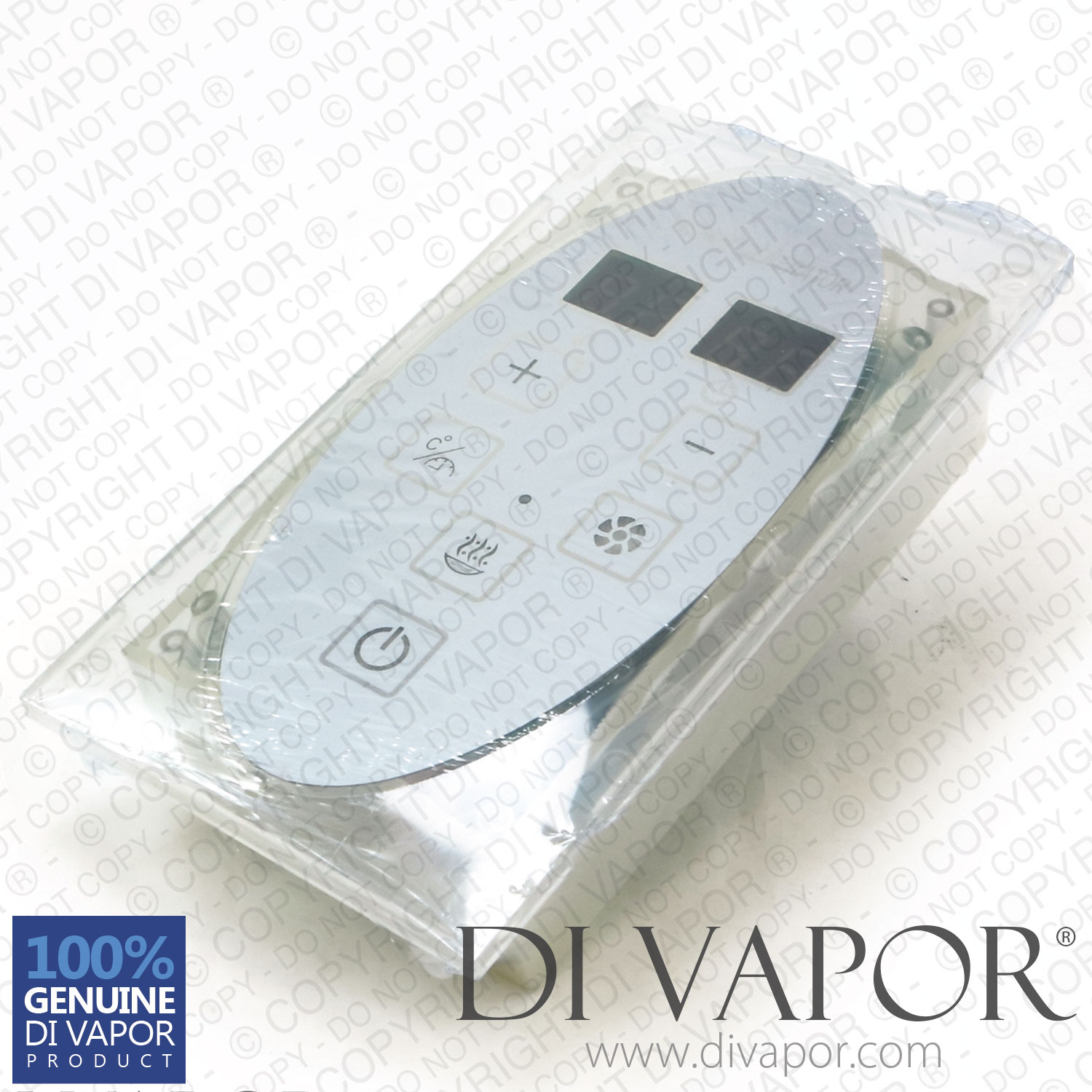

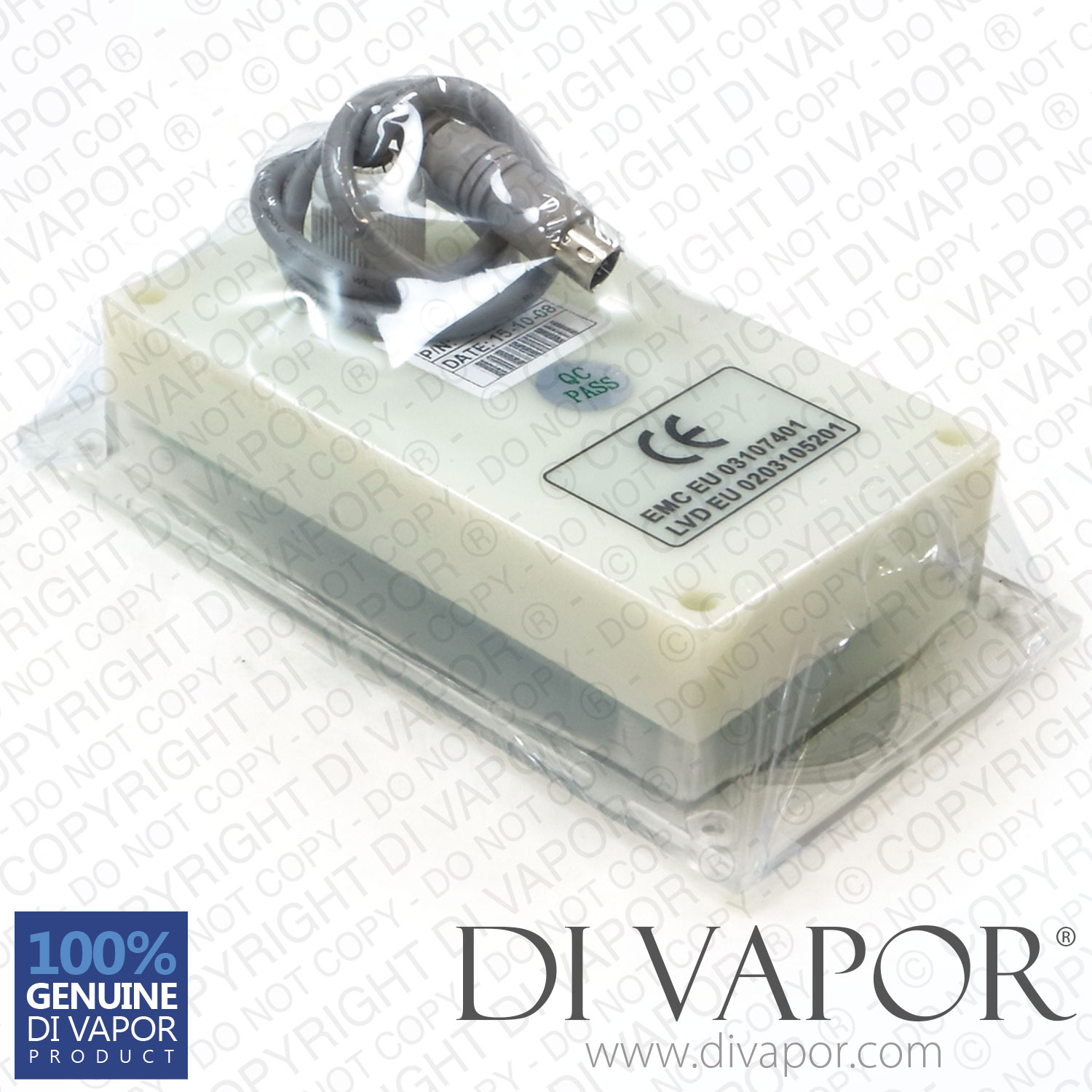

- Control panel for on/off, fan and temperature functions

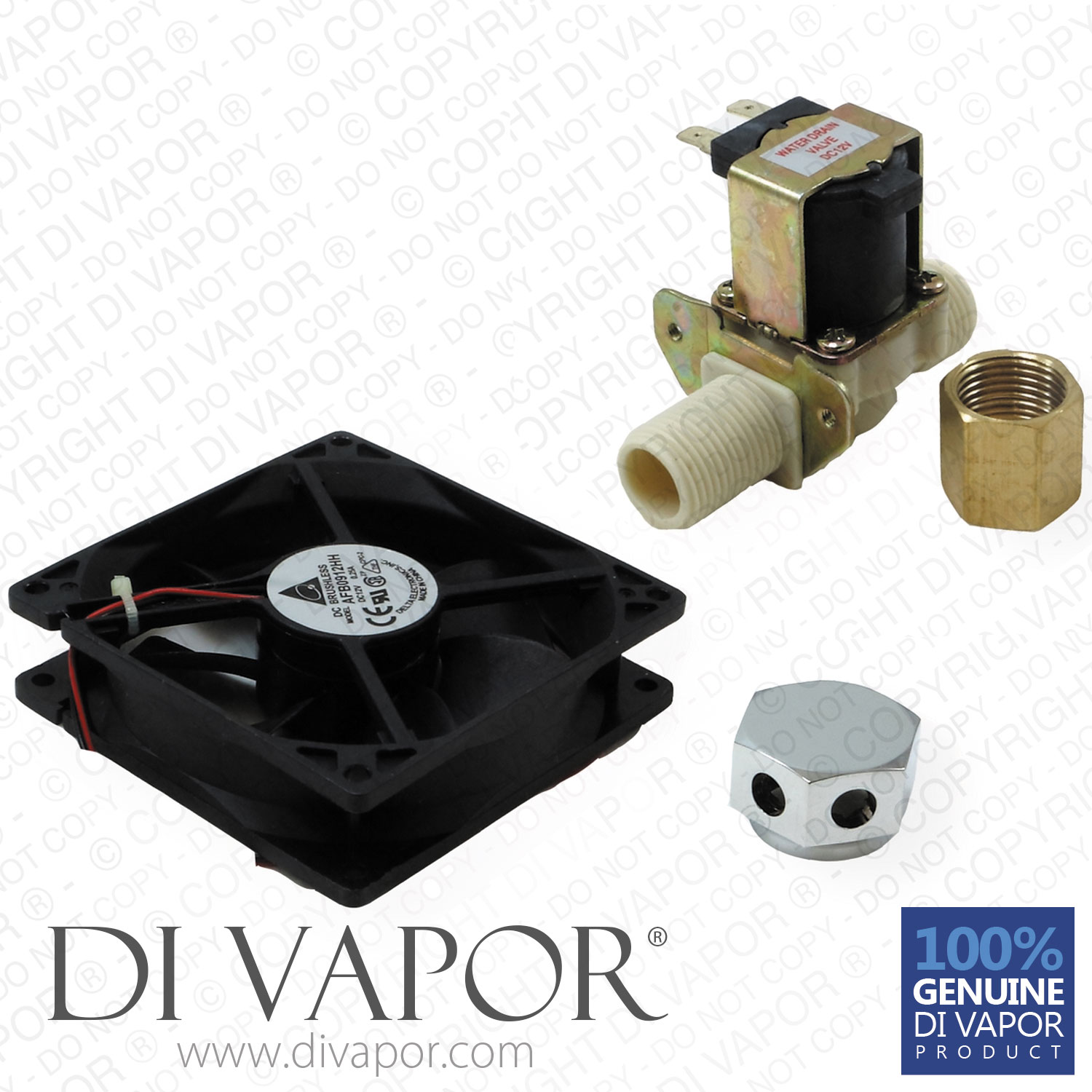

- Circulation/extraction fan

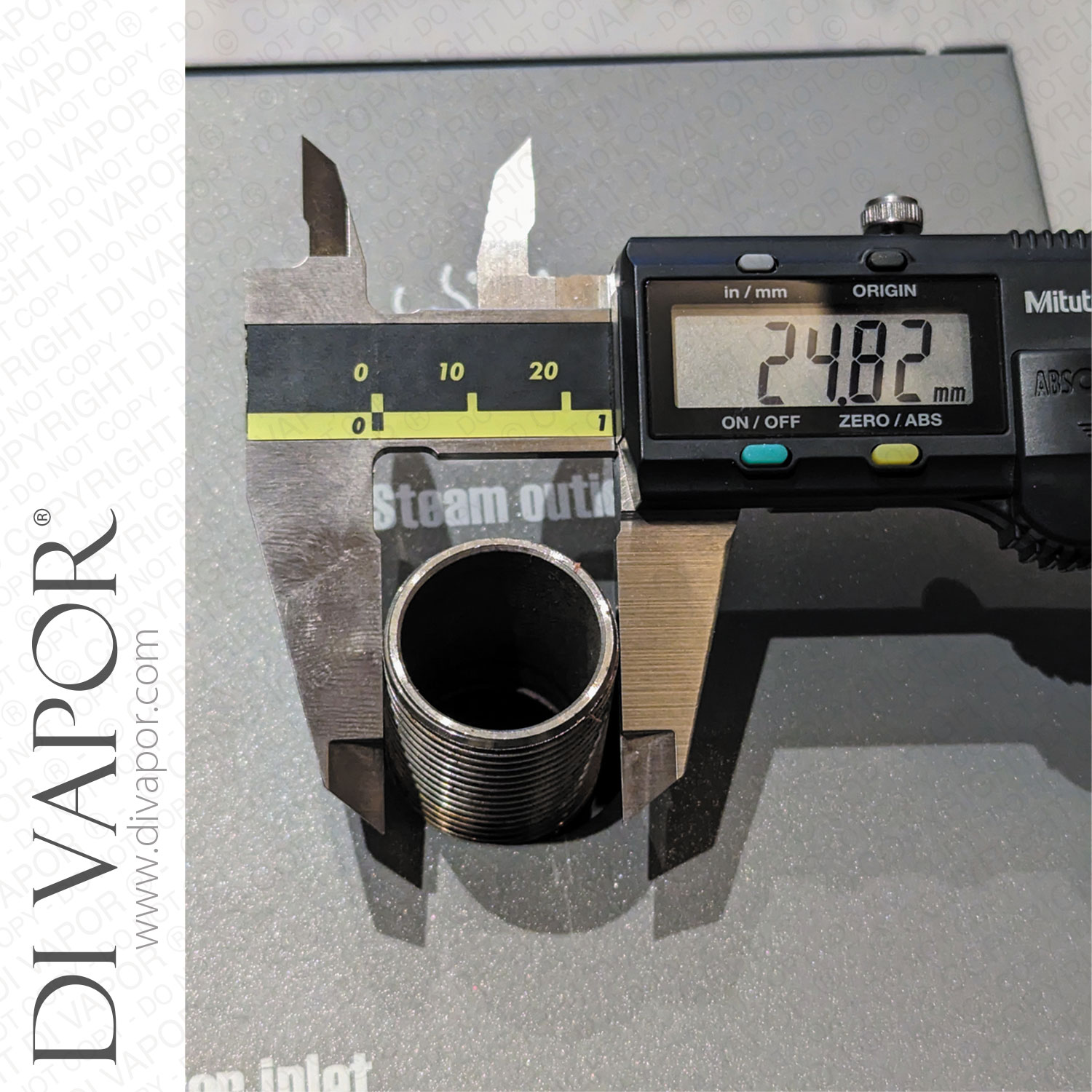

- 1m Steam Outlet Pipe

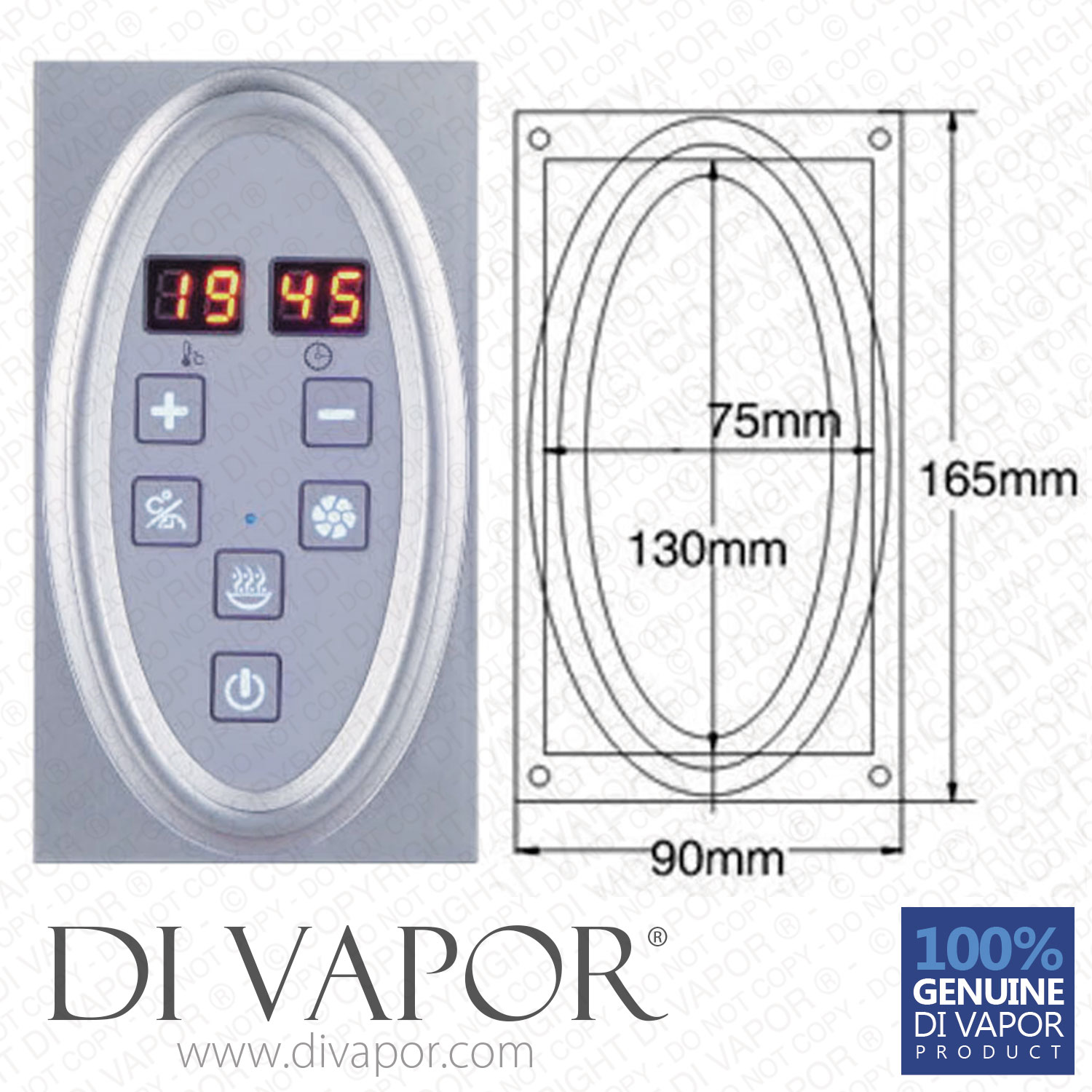

Control Panel Size: 90mm x 165mm

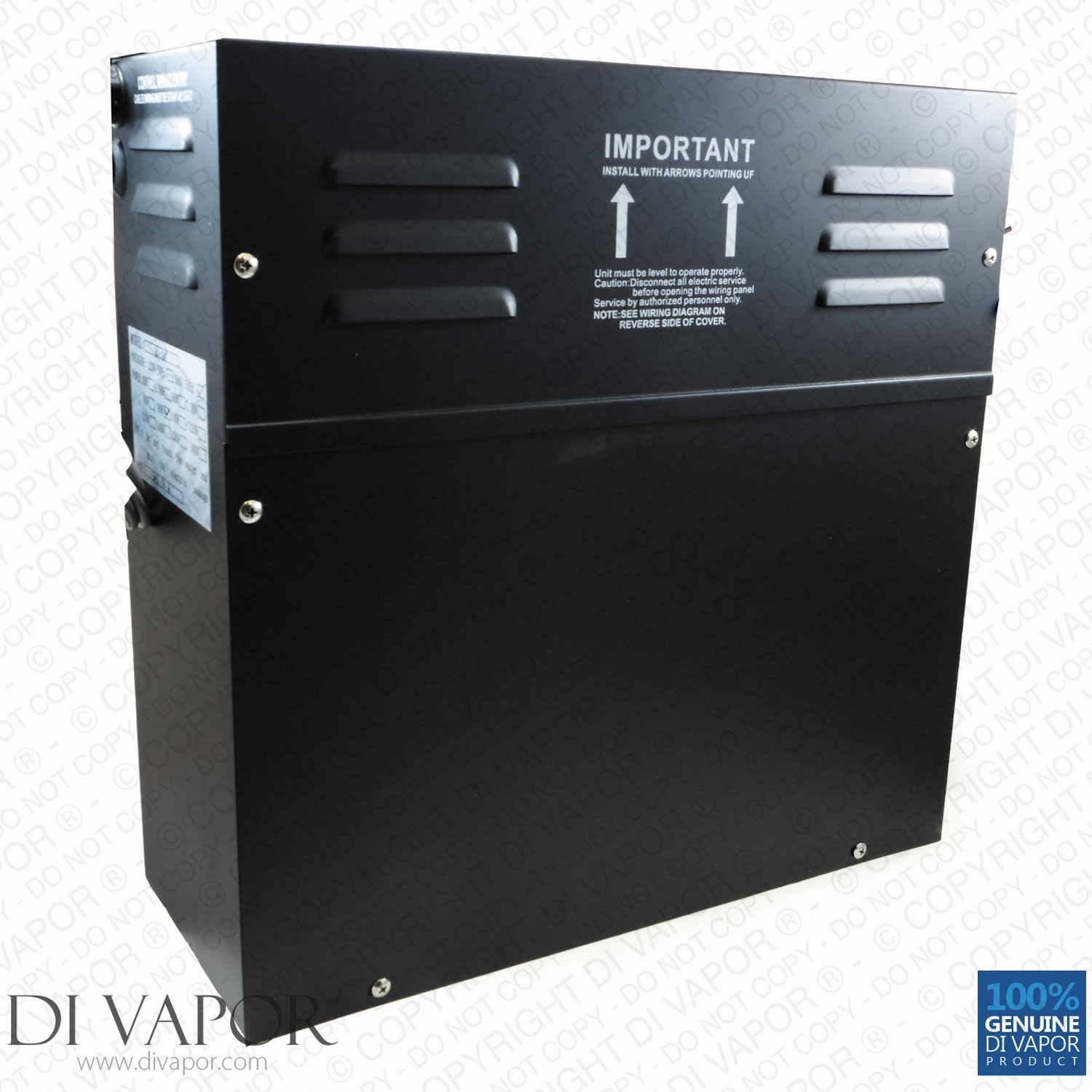

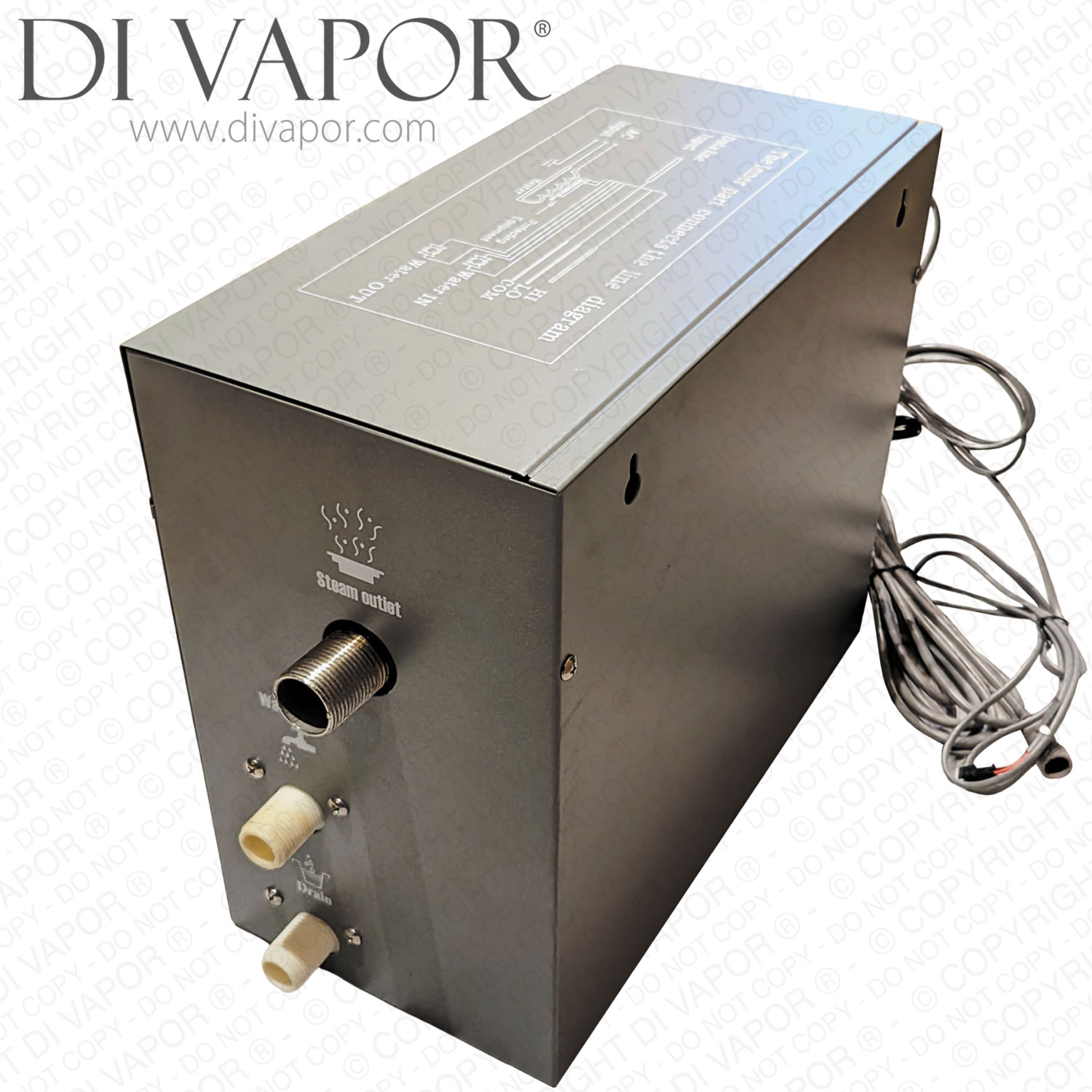

Steam Generator Size: 28cm (H) x 16.5cm (W) x 33cm (D). Depth to include pipe outlet connectors is approximate 40cm. You will need additional clearance for pipework and access for maintenance.

4.5kW Steam Room Generator Kit General Information

The 4.5kW steam room generator 220V kit, provided by Di Vapor, can generate steam enough for about a 2 cubic meter room. Turning the machine on and off, adjusting temperature and time settings can be made via the waterproof control panel. This 4.5kW steam generator unit has a minimum timer setting of 5 minutes and a maximum of 60 minutes. You can set the timer through the control panel. It will automatically shut down once the preset time or temperature is reached making it perfect and safe for household use. This steam generator is designed for residential recreational use only and should not be run continuously.

The temperature capacity of this 4.5 kW steam room generator kit is 25℃ (77℉) up to 60℃ (140℉).

For bigger steam rooms, we carry a
– 6kW
– and a 9kW version.

Installing the 4.5kW Steam Room Generator Kit

It is highly encouraged that the 4.5kW steam generator is installed by a professional electrician or plumber to minimize the possibility of installation errors and as a safety precaution. The unit can be installed mounted to a wall or on a flat, level surface.

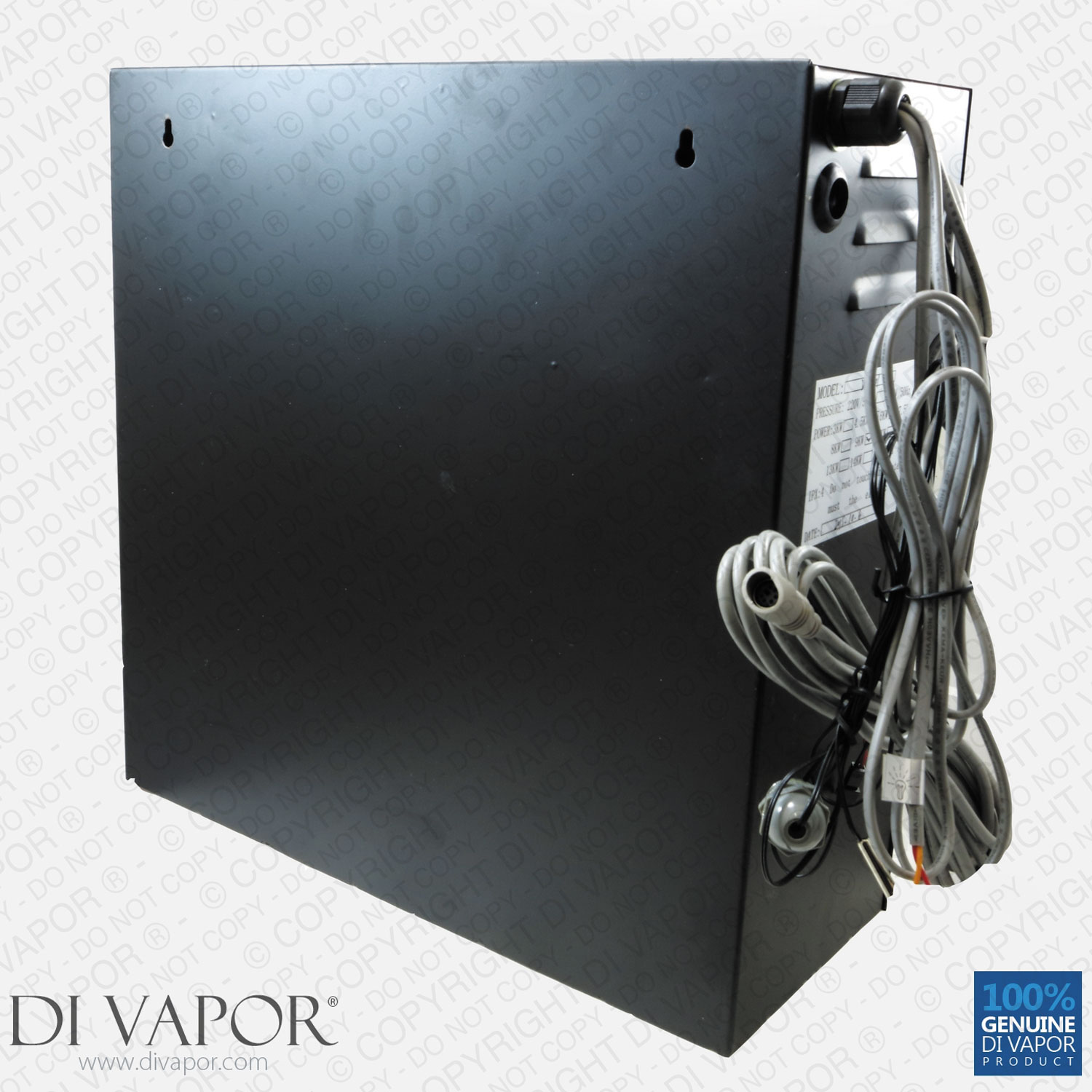

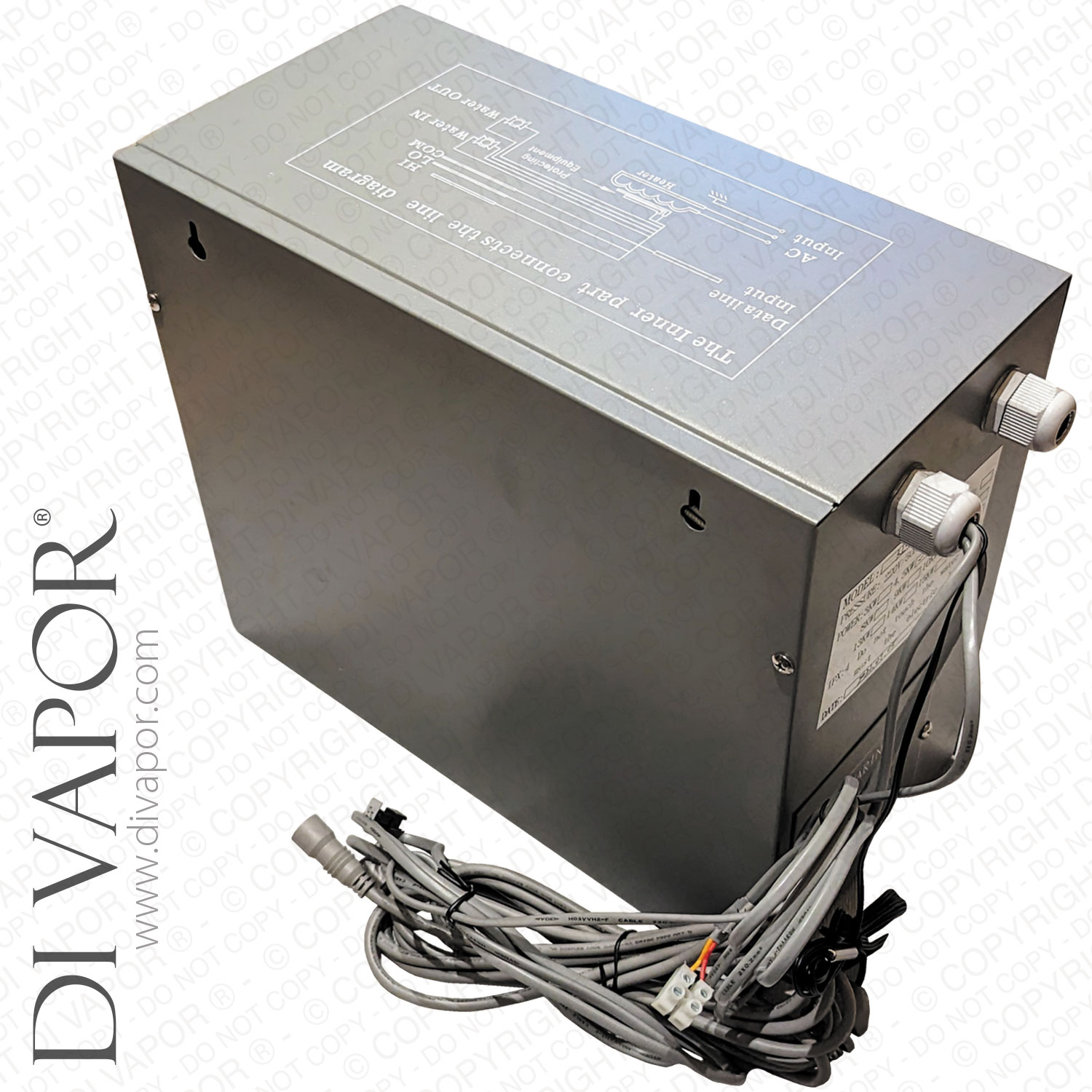

There are two mounting holes located on the upper back of the unit. Drill in pilot holes and drive anchors for the support right in the spot where you intend to place it. The holes must have the same distance from hole to hole as that of the unit. Screw the self-tapping mounting screws and affix the steam generator unit. Tighten the screws securely. Make sure the 4.5kW steam generator is adequately supported to prevent it from moving.

Benefits of a Steam Room Kit

Unlike saunas, steam showers use a steam room generator kit to supply moist heat to an enclosure. Temperature is maintained at 43.3℃ (110℉) to 46.6℃ (116℉). Since the enclosure is sealed, humidity is retained.

Steam Room Area Covered by the 4.5kw Steam Room Generator Kit

Selecting a suitable steam generator is essential to maximize the entire space of a steam room. The capability of these machines to produce steam differs from model to model. Knowing the size of your enclosure will help you know which steam generating machine is adequate. If the steam generator is too powerful, the steam head will be too hot for a comfortable steam session. If the power is insufficient for the room, it will take more time to heat.

Aside from the floor area, there are other room features that can influence the performance of a steam generator. These are ceiling height, normal room and wall temperature, the characteristics of the room’s building materials (i.e. insulation, weight, and thermal conductivity), and voltage.

Knowing these information will let you know if the 4.5kW steam room kit can cover the whole area of your room.


If you have further questions regarding this steam room generator kit, please contact us and we will gladly respond to your query.
