6kW Steam Room Generator Kit | Steam Generator 220V | Control panel | 1 Metre Steam Pipe
6kW Steam Room Generator Kit | Steam Generator 220V | Control panel | 1 Metre Steam PipeSteam Room Generator Control PanelSteam Room Generator KitSteam Room Control Panel6kw Steam GeneratorSteam Shower Generator KitSteam Generator for Steam Room6kw Steam Room Generator6kw steam generator shower sauna bath6kW Steam Room Generator Kit6kW Steam Room Generator Kit | Steam Generator 220V | Control panel | 1 Metre Steam Pipe

6kW Steam Room Generator Kit | Steam Generator 220V | Control panel | 1 Metre Steam Pipe

Part Number: 6KWSTKIT
Only 3 left in stock.

SALE: £499.99

You save: £595.01 (54%)
Price includes VAT
Quantity:
ADD TO BASKET
IN STOCK
Wrong Item? Click to see More
Next Day Delivery Available
Product description

SUMMARY

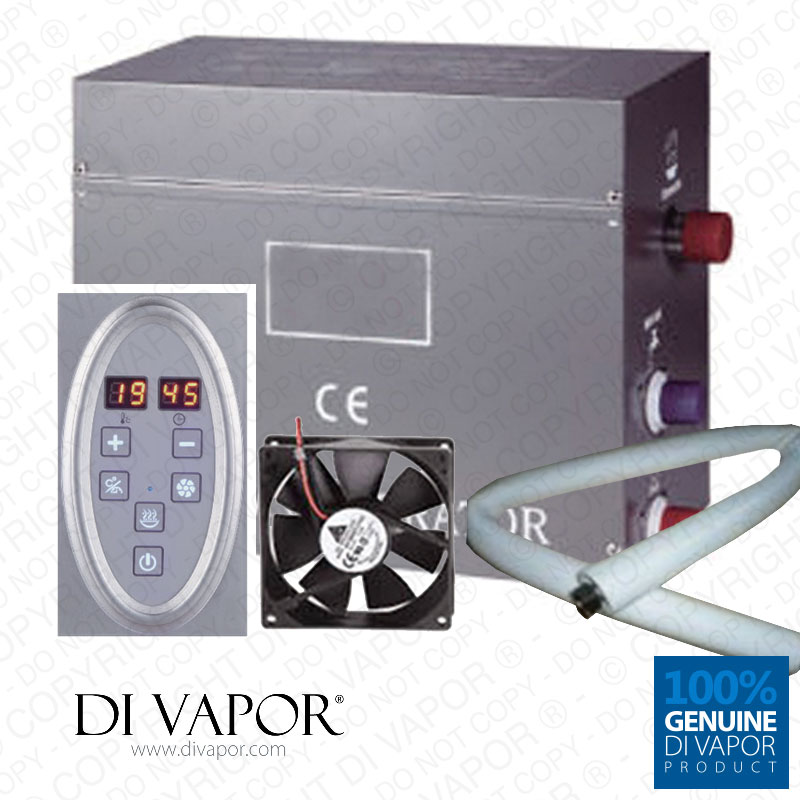

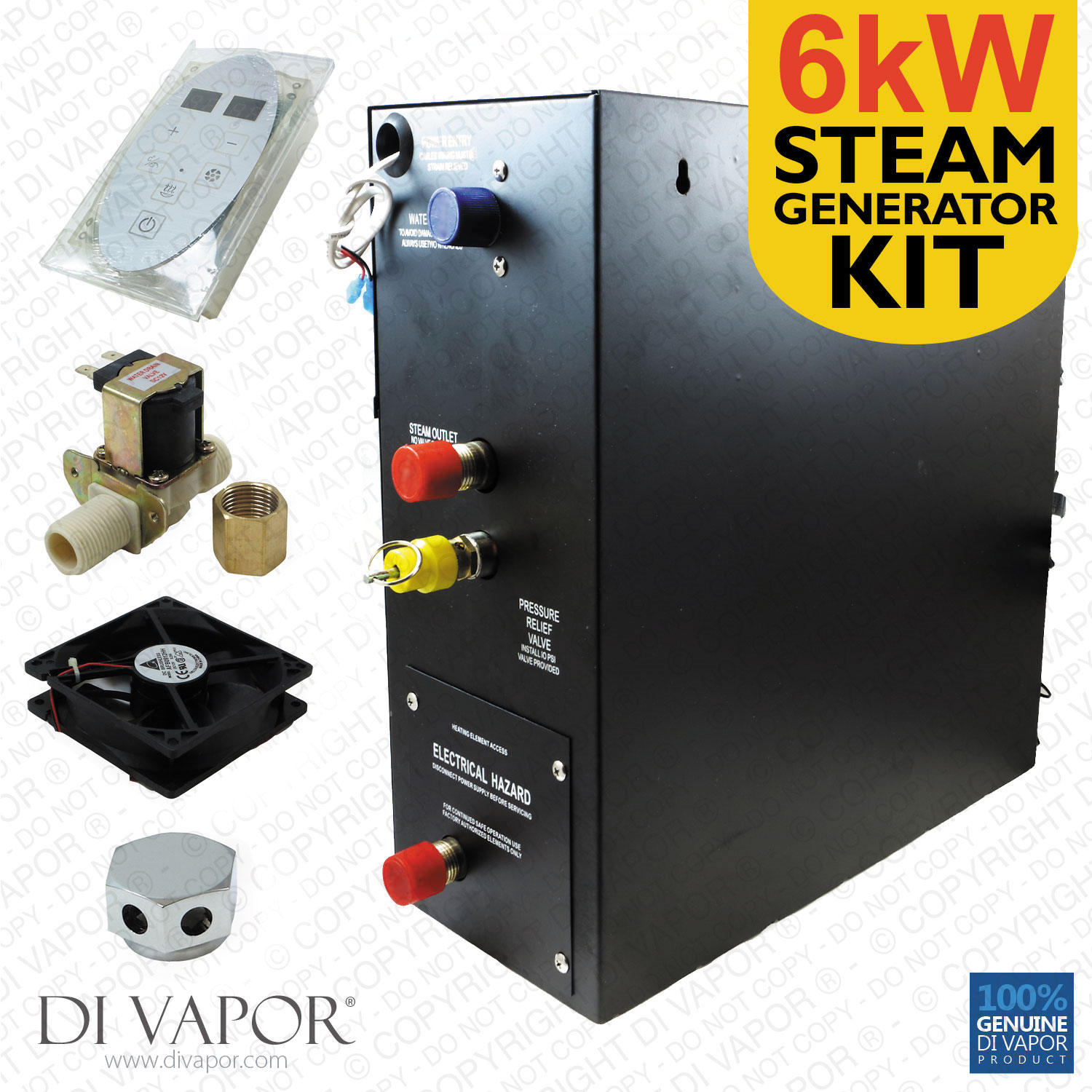

This product includes:
- 6.0KW Steam generator
- Control Panel for on/off, fan and temperature functions

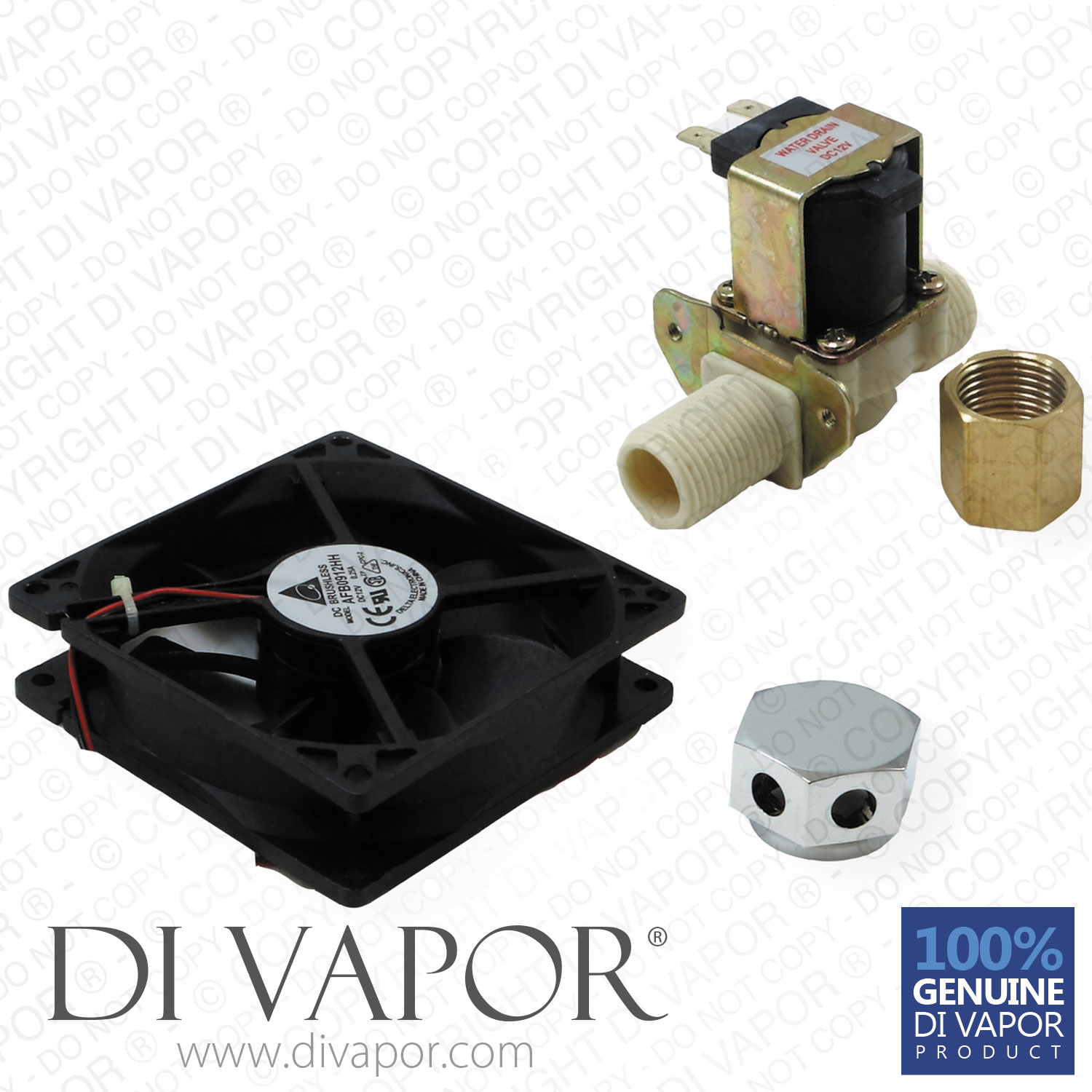

- Circulation/extraction fan
- 1m Steam Outlet Pipe

Steam Generator Size: 330mm x 160mm x 280mm

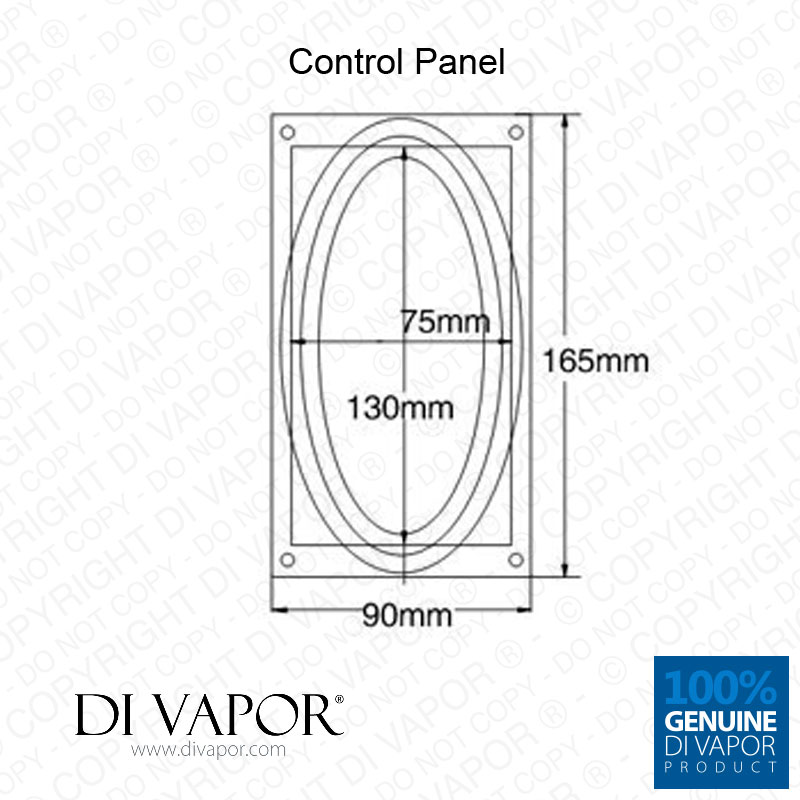

Control Panel Size: 90mm x 165mm

The 6kW steam room generator is suited for a 3.5 cubic metre steam room. You can control the temperature – from 25℃ (77℉) to 60℃ (140℉) – through the control panel that comes with this kit. There is a steam timer setting in the control panel where you can adjust the steam time setting between 5 minutes to 60 minutes. This 6kW steam generator will automatically shut down once the preferred temperature is reached. This steam generator is designed for residential recreational use only and should not be run continuously.

The default time of this unit is 45 minutes at 45℃ (113℉).

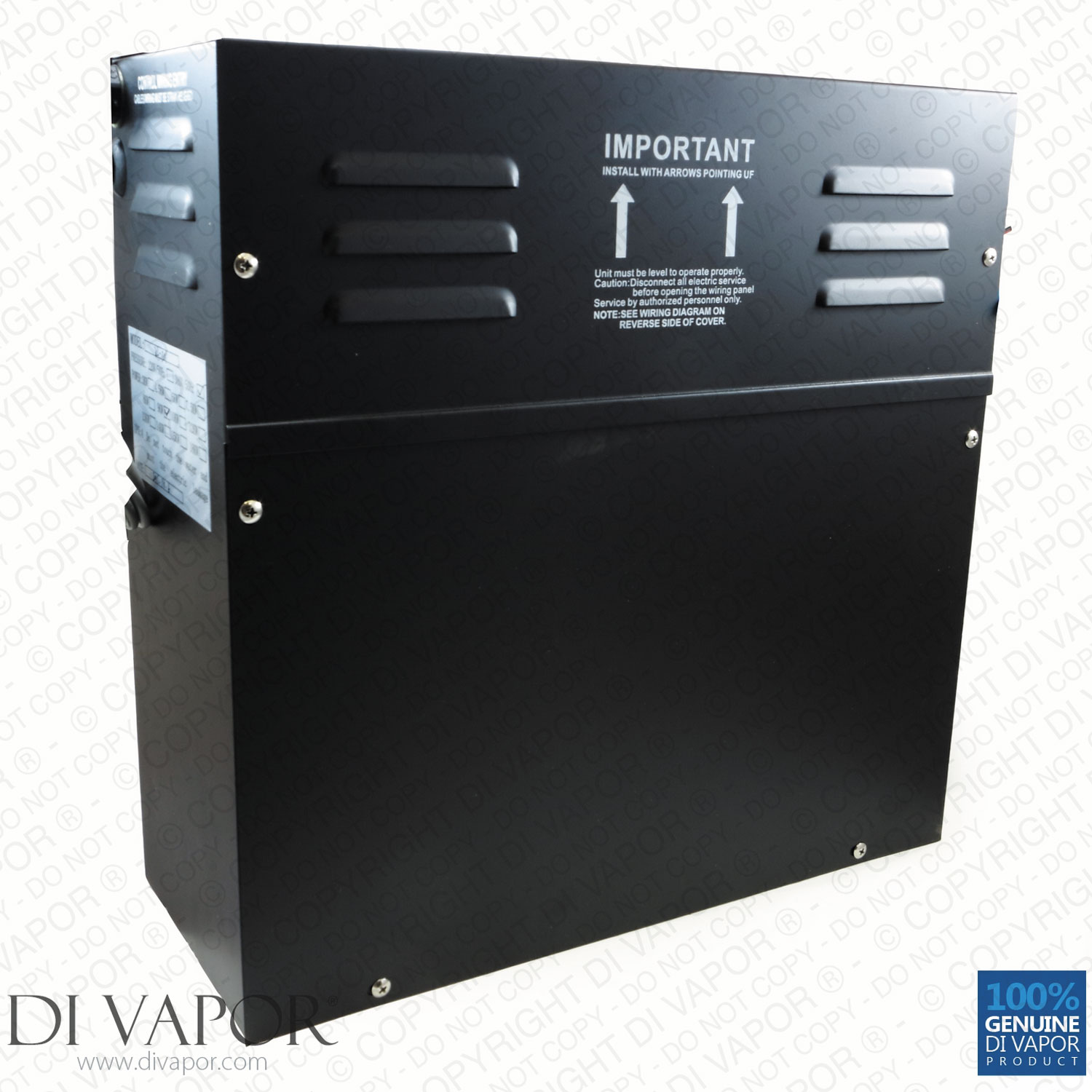

The 6kW steam generator provided by Di Vapor has a stainless steel casing with an alloy heating element perfect for residential. It carries a 12-month warranty on all parts.

Please contact us should you have any questions regarding this steam generator. We are here to provide assistance and we will reply to your message as soon as we can.

Setting up the 6kW Steam Generator

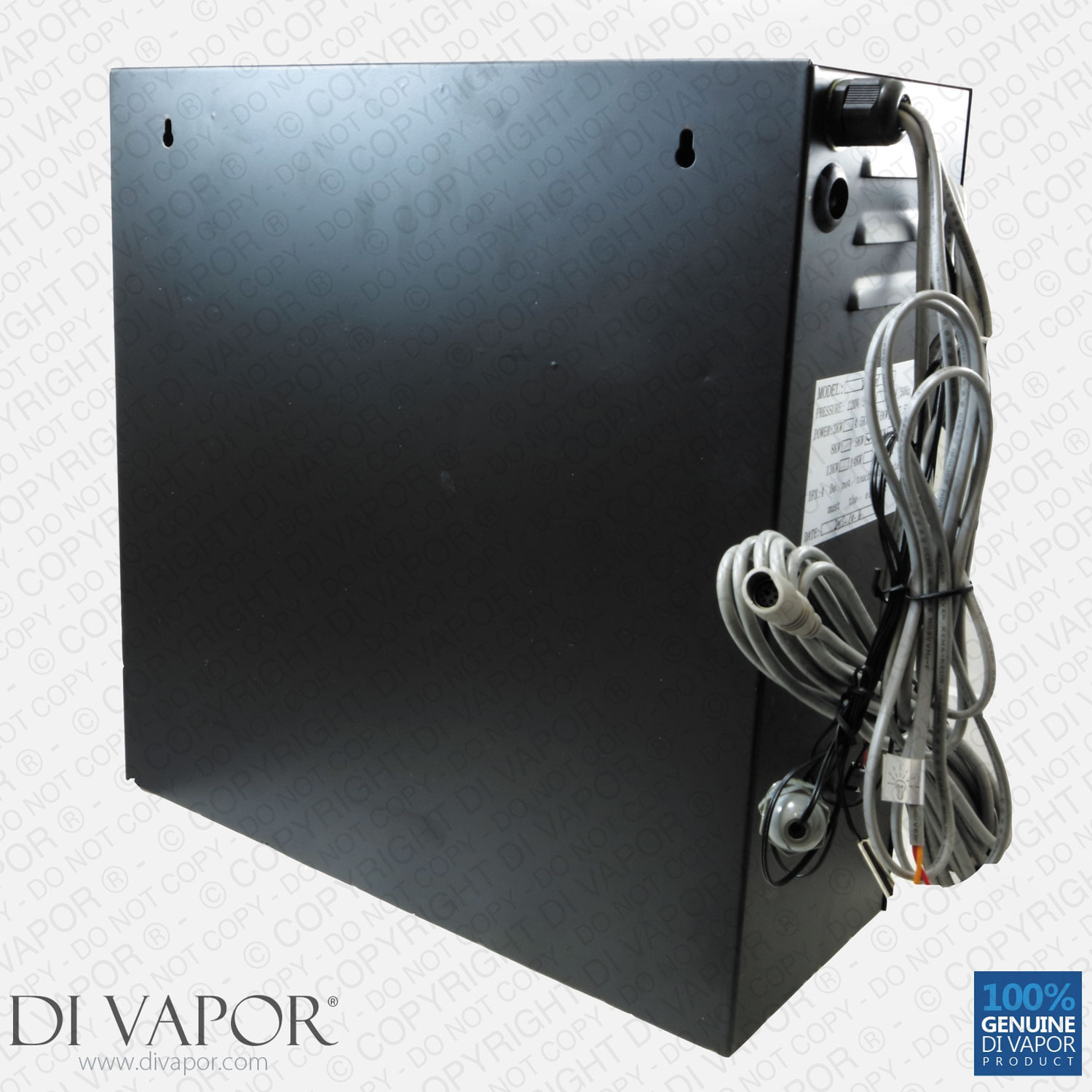

The steam generator must be installed on a flat surface either on the floor or mounted to a wall. At the back of the generator are two mounting holes which are used for fitting the unit securely with screws. When installing the unit please bear in mind that it should be fixed in place without moving. The piping can act as a support. Additional support can be added when the existing piping does not prove adequate.

Tips:
– The 6kW steam generator can take up to 2kg/cm2 water pressure. Lower the water pressure if it is too high or use a pressure reducing valve.
– The water supply shut-off valve must be located where it can be accessed easily.
– It is not recommended to install a valve directly on the steam line.
– It is advised that this 6kW steam generator kit be installed by a qualified electrician or plumber as a safety measure.

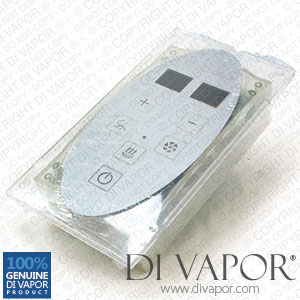

6kW Steam Generator Kit Control Panel

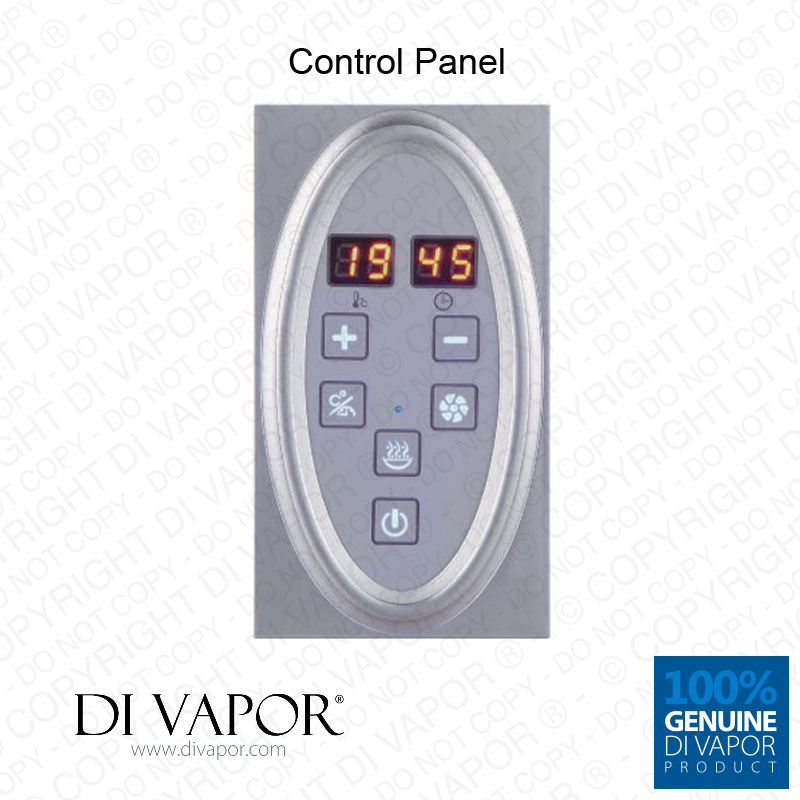

A rectangular control panel is included with this steam generator. It is approximately 65mm (6.5cm) in height and a 90mm (9cm) in width.

The control panel has an on/off button, a power button for the steam, fan, temperature and time, and temperature adjustment buttons. Upon pressing the on/off button the steam generator will start and show the ambient temperature. The control panel is backlit with a steam indicator light.

Guide to Choosing the Right Steam Generator
The right steam generator must provide enough steam to cover the entire steam room area. Getting a unit too powerful for the room area will result in a steam room that is too hot. On the other hand, it will take longer to heat the room area if the unit is not sufficiently powerful enough. The overall floor area and the ceiling height must be considered. This 6kW steam generator kit is designed for 3.5 cubic metre rooms.

Other steam generators we provide are:
4.5kW Steam Generator Kit for 2 cubic metre steam rooms.
9kW Steam Generator Kit for 4.5 cubic metre steam rooms.

The steam room insulation is another point to consider when searching for a steam generator. When the cold ambient temperature can easily get in the steam room, the generator may take longer to fill the room with steam and heat.

The voltage if the steam generator must also be taken into account. This unit is a 220V steam generator which is suitable for most UK homes and commercial establishments.

Risk Factors:
Temperature within a steam room is usually within 43.3℃ (110℉) and 46.6℃ (116℉). The humidity is 5 to 30% higher than that in a sauna. Because of the heat, it is recommended to use a steam room for up to 20 minutes. Staying longer can dehydrate the body. Also, pregnant women, those who have high blood pressure or heart diseases, those taking medication such as antibiotics, those suffering from epilepsy, and those under the influence of alcohol are not advised to use a steam room.
